IMPORTANT - THIS IS A TRUE DIGITAL WIRELESS KIT UNLIKE SOME OTHERS THEY ARE SELLING ANALOGUE KITS AS DIGITAL. DIGITAL IS A STRONGER SIGNAL WITHOUT INTERFERENCE. DON'T BE FOOLED.

Why select a Masten Product?

Masten is 100% Australian owned and engineered. Masten offers a range of high quality products to the market at very affordable prices, something the Australian market is currently missing. Masten have been developing products primarily for the 4WD Off Road market since 2008 so we understand how to make a product that lasts.

Ensure you tightly screw on the antenna as not doing this will allow water to enter the camera which is not covered under warranty if this happens due to not installing the antenna correctly (tight).

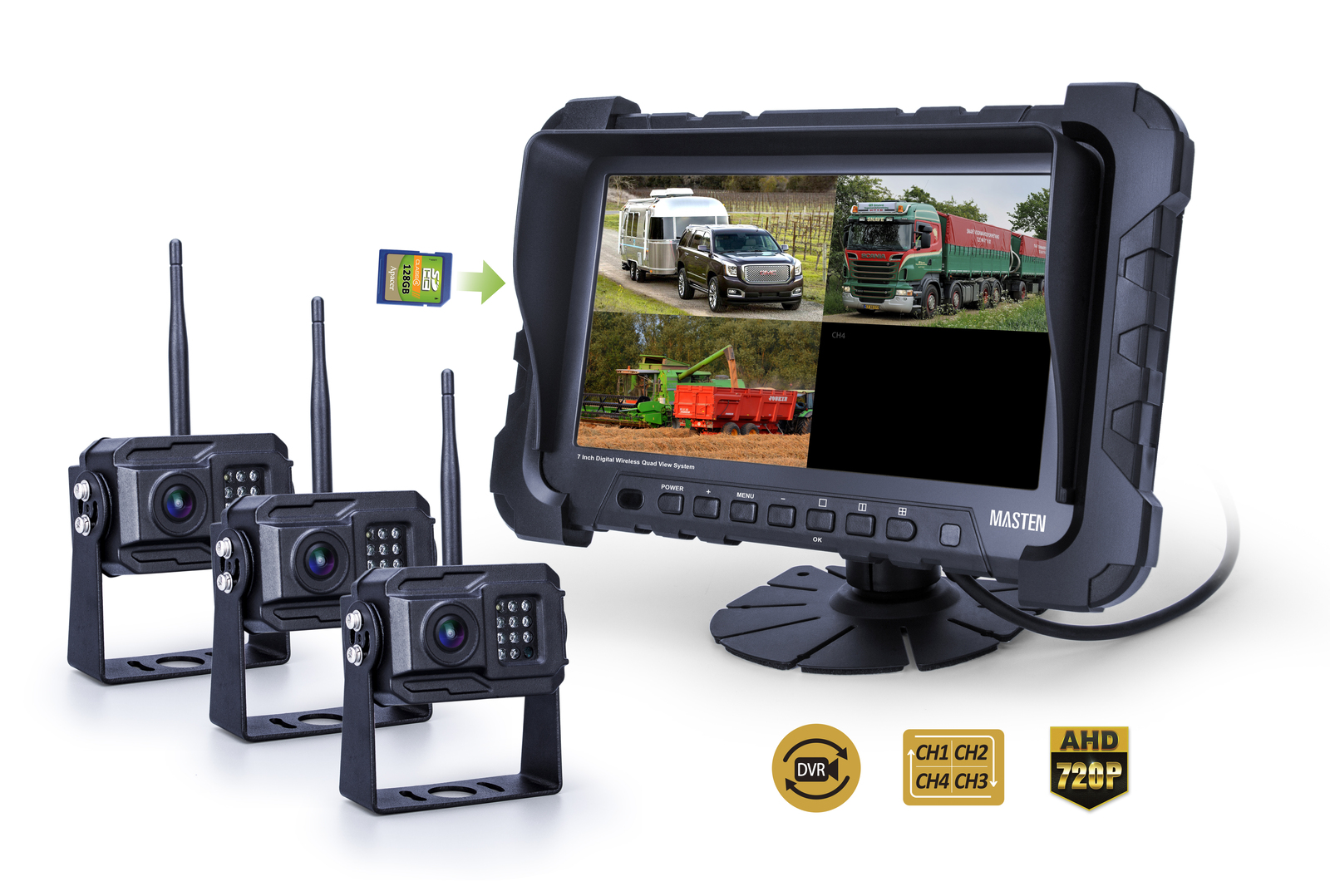

Masten Digital (not Analgue) Wireless Truck, Car, Horse Float, Bus (and more) 7" Monitor and CCD Camera Set

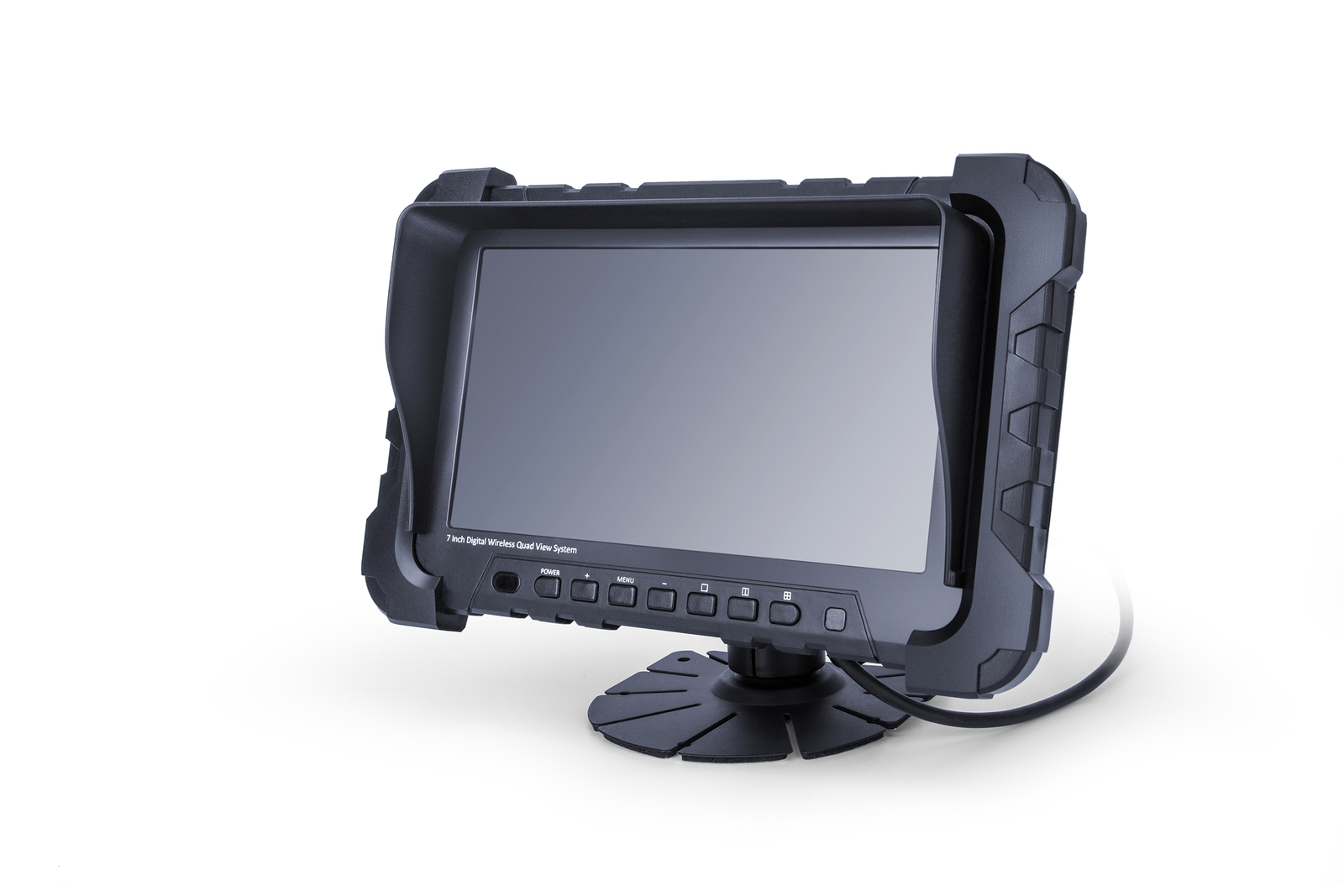

Main Features - Monitor

• Built-in DVR recording, hold up to 8-128Gb SD card
• Panel Size - 7" IPS Digital Panel
• Video System - PAL/NTSC Auto
• Resolution - 1024 x 3 (RGB) x 600
• Brightness - 450 cd/m2
• Contrast Ratio - 500:1
• Screen Mode - 16:9
• Power - DC 12-32V

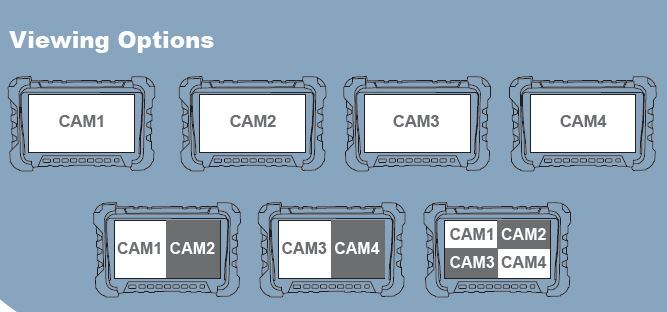

• Support Camera - up to 4 cameras - single, split and quad-view
• RF Impedance - 1vp-p 50Ohm
• Latency - 150ms Max
• Frame Rate - 30f/s
• Operating Frequency - 2400-2483.5 MHz
• Line of Sight Range - up to 350 meters at open area
• Video Codec - MPEG4
• Out Power - 18dBm
• RF Bit Rate - 8 Mbps
• Spead Spectrum - FHSS
• Overlapping Hopping Channel - 80
• Hopping rate - 1200/S

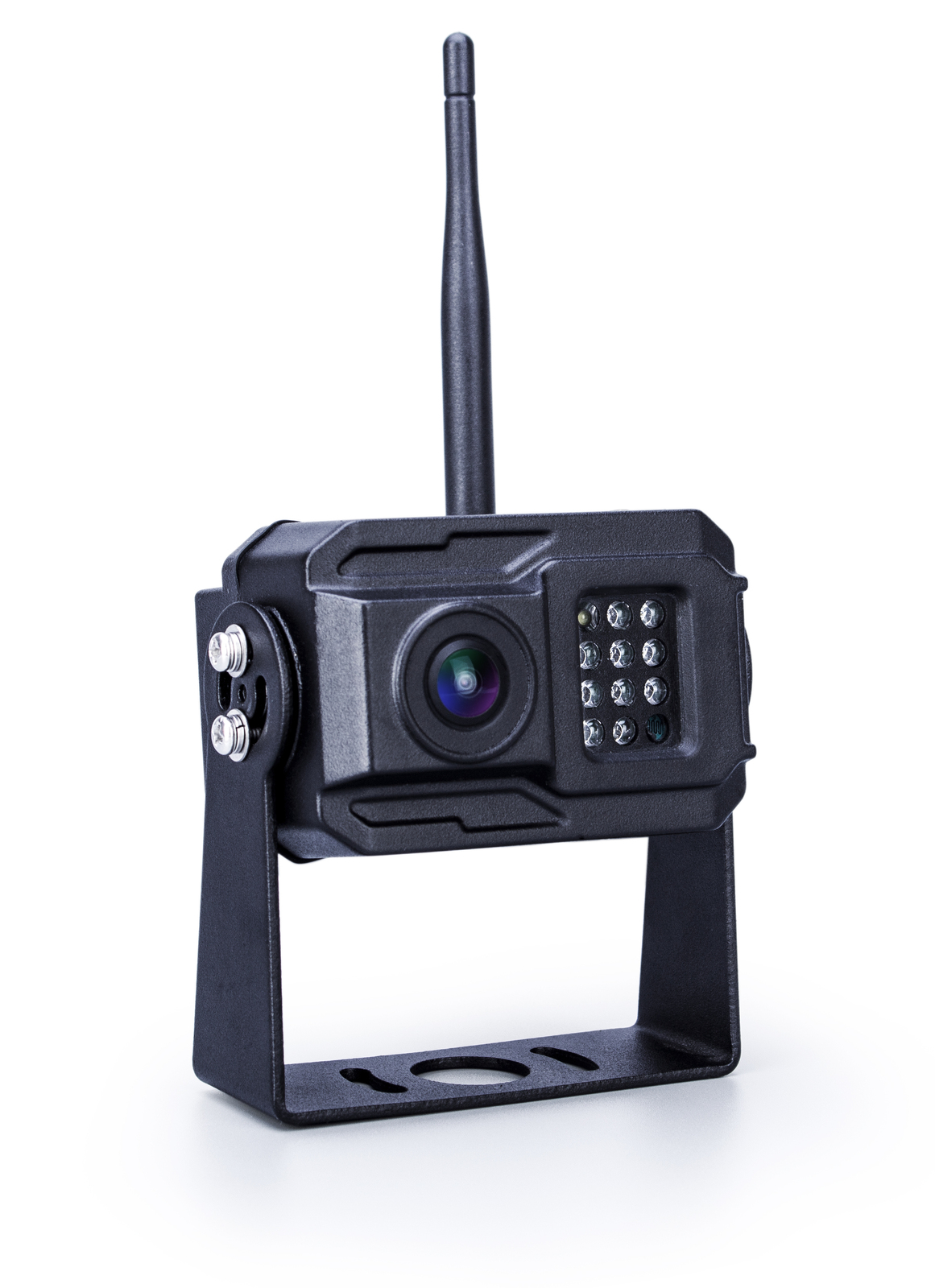

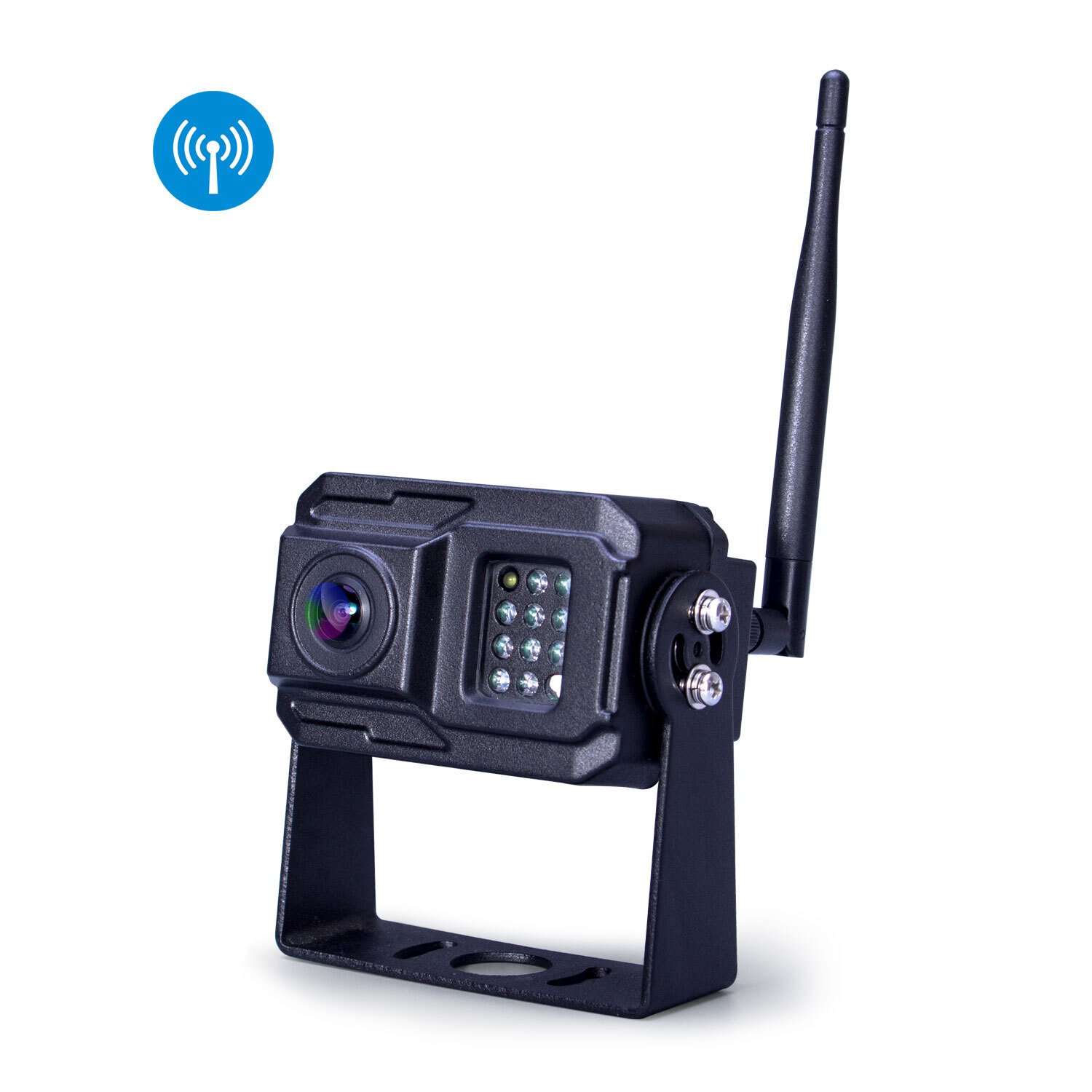

Main Features - Camera

• Resolution AHD 720P
• Working current 150mA
• Optical Format 1/4”
• Camera Correction R-0.45-1.0
• Lens F=2.5mm
• Viewing Angle 110°
• Waterproof Rating IP69K
• Power Consumption About 3.5W (IR on)
• Power Input DC12 -32V
• Nightvision Yes
• Frequency 2400-2483.5 MHz
• Transmission Type Digital Wireless
• Transmission Distance 350 meters at open area
• S/N Ratio More than 48dB
• White Balance Auto
• IR Control Auto
• Operating Temperature -20C to approx. 70C
• Storage Temperature -30C to approx. 80C

​Monitor Size:

Width: 21.5cm
Height (without antenna): 14.0cm
Depth: 3.0cm

Camera Size:

Width: 8.3cm
Height (without antenna):5.7cm
Depth:5.6cm

Trusted by the Horse Transport Industry - also perfect for other vehicles

Masten Products are used and trusted by horse breeders all over the world. It is devastating to lose a loved horse or a newborn foal. Don't leave it to fate. Our products are designed to help you keep your horses safe and reduce the risk of emotional and financial loss. We are dedicated to giving you the best service and products we can provide.

The Masten RK-7DW-DVR is a high tech, digital wireless monitor and camera kit that can be used in your horse trailer so that you may always monitor your animals while traveling. Whenever you must travel with your horses, you most likely spend a great deal of time worrying about the safety and health of the animals. However, you cannot stop every few moments to check on them. Normally, you would have no way of knowing if your horses are safe and secure. This problem will no longer be an issue for you once you start making use of Masten.

Just why do you need to monitor your horses while you are on the road? Think about all of the situations that could come along. If you will be traveling for an extended amount of time, you may not even know if one of your horses is sick or injured until you stop for a rest. One of your animals could be in pain for hours and you may not know it. However, when you choose to make use of Masten, you will always be able to monitor your horses right from your vehicle. If something were to happen to one of the animals, you will know immediately, and you can address the problem immediately.

This camera kit is different from any other wireless horse trailer camera that you could choose. It is completely digital wireless, meaning you do not have to run wiring from camera to monitor at all. In addition, it provides versatility. You will find many uses for this float camera, and you will find yourself turning to it again and again.

Imagine the peace of mind that you can gain from a product like Masten. Keep in mind that this trailer camera can be used in many other situations, like keeping up with your animals while they are in the barn. With this horse camera, you will easily be able to monitor your horses at all times. Never again will you have to worry about your horses’ health and safety. The Masten RK-7DW-DVR is the number one solution to monitoring your horses when they are traveling in a trailer

As you have already learned, the Masten RK-7DW-DVR is a fantastic tool for monitoring your horses when you are traveling. You will always have an eye on the horses in the trailer and you will not have to wait until you stop just to check on the animals. However, did you know that this product has many other uses? In fact, this high tech wireless horse trailer camera can provide you with help in caring for your horses whether you are at home or on the road. Here are some of the many other applications that you can use Masten for. You may be surprised at just how useful this tool can truly be.

The trailer camera could be set up in the barn and horse stalls. If you have an animal that is sick, injured, or pregnant, the RK-7DW-DVR will make it easy for you to monitor them at all times. This way, you will be able to help the horse at a moment’s notice.
Just as with the barn monitoring, The Masten RK-7DW-DVR could be set up to monitor a pasture. If you have ever had a horse get injured or become ill when it was out to pasture, you will know just how useful this monitoring service is. The The Masten RK-7DW-DVR camera is waterproof and can easily be used outside.

You can even use The Masten RK-7DW-DVR as a form of home security. With the float camera set up at the right locations, you will be able to see your home and monitor it for intruders. This can bring a great deal of peace of mind.

Perhaps one of the most helpful uses for The Masten RK-7DW-DVR would be with attaching your vehicle to your horse trailer, float, or caravan. With this trailer camera, you will easily be able to attach the two without that frustrating damage that could otherwise happen to your vehicle when you back too close to the trailer hitch.
When you choose Masten, you will be able to get so much use out of it beyond the ability to monitor your horses while they travel in a trailer. There are numerous different applications for this product and you will find yourself turning to it again and again for your horses and for your home.

The mountable horse trailer camera system operates in low light and wirelessly beams its signal to the 5" colour monitor placed wherever you like in your truck cab - the dash, air conditiong vents and mirrors are the most common mounting points.

The Masten Wireless Horse Camera is a weatherproof, portable, wireless and lightweight monitoring system.

The Masten RK-7DW-DVR camera can be used almost anywhere. For example, when back at the stable relocate the Masten camera to monitor stables, fence gates and other ares. Wireless transmission between camera and monitor can extend up to 50m (clear view).
