Why select a Masten Product?

Masten is 100% Australian owned and engineered. Masten offers a range of high quality products to the market at very affordable prices, something the Australian market is currently missing. Masten have been developing products primarily for the 4WD Off Road market since 2008 so we understand how to make a product that lasts.

WARNING

The power inlet of the monitor is a Micro USB. ONLY power the monitor with the SUPPLIED power supply. If you power with another power supply, for example an AC 240V/110V mobile phone power supply you will damage the monitor and void warranty. Only power the monitor in your vehicle (as intended).

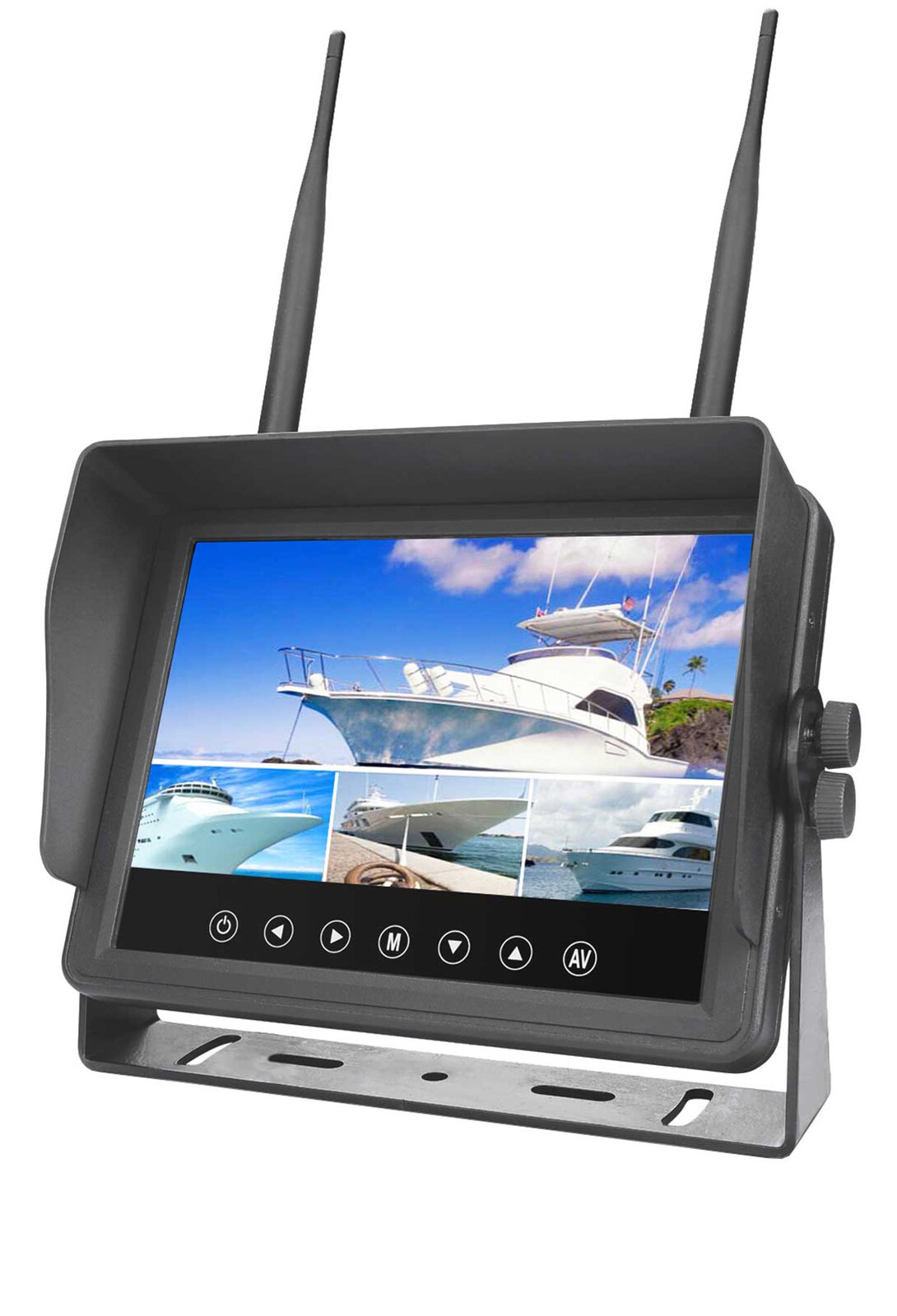

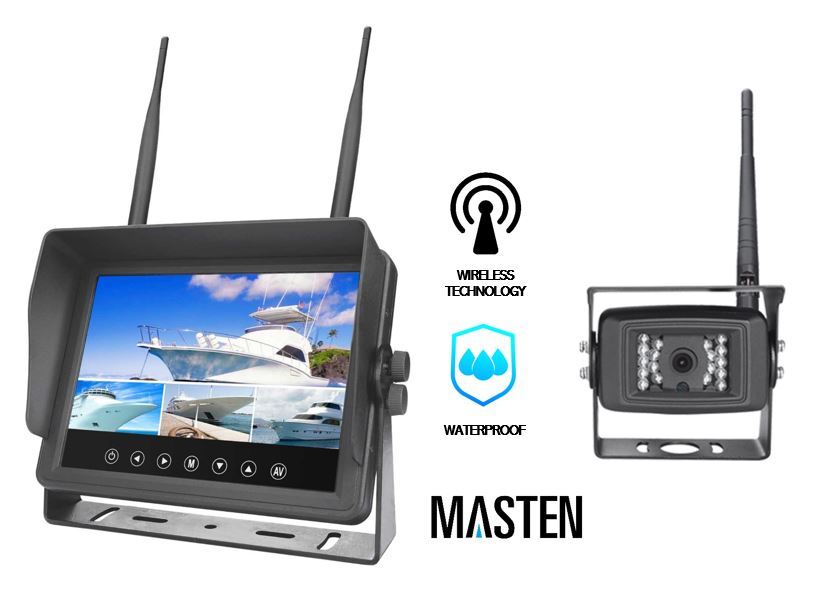

Masten Digital (not Analogue) Wireless Truck, Car, Horse Float, Bus (and more) 5" Monitor - Camera not included

Please note: Monitor Only - Masten RK-WC770 Wireless Camera is Required

Main Features

  • LCD size:7"
  • Resolution :800 x RGB x 480
  • Contrast :500:1
  • Brightness :400 cd/m²
  • Viewing Angle:U: 50 / D: 70, R/L: 70
  • Aspect Ratio:16:09
  • Channel : 3channels
  • Operating Frequency :2400 - 2483.5 MHz
  • Transmitting Distance :120 M
  • Recieving Sensitivity : 89 dBm
  • Decompression Form :MPEG4
  • Emitting Frequency :17 dBm
  • Modulation :2.4G FSK/GFSK
  • Time Delay:120ms
  • System Format :PAL / NTSC
  • Power Consumption :Max. 6W
  • Loudspeaker :1.5W/8Ω
  • Operating Temperature :-20~+70ºC, RH 90%
  • Storage Temperature :-30~+80℃, RH 90%

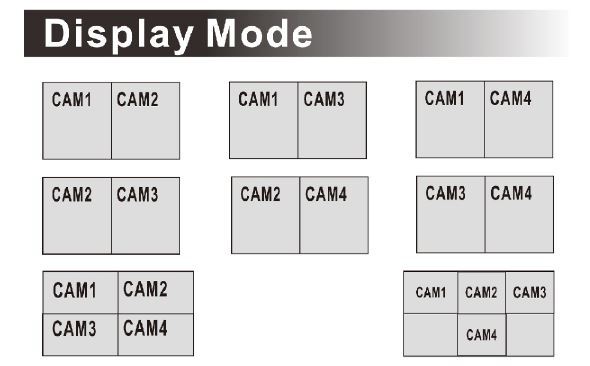

can pair up to 4 wireless cameras!

What's in the Box:

  • Premium Monitor
  • Monitor Stand
  • Cigarette Power Supply
  • User Manual





  • LCD size :7"
  • Resolution :800 x RGB x 480
  • Contrast :500:1
  • Brightness :400 cd/m²
  • Viewing Angle:U: 50 / D: 70, R/L: 70
  • Aspect Ratio:16:09
  • Channel : 3channels
  • Operating Frequency :2400 - 2483.5 MHz
  • Transmitting Distance :120 M
  • Recieving Sensitivity : 89 dBm
  • Decompression Form :MPEG4
  • Emitting Frequency :17 dBm
  • Modulation :2.4G FSK/GFSK
  • Time Delay:120ms
  • System Format :PAL / NTSC
  • Power Consumption :Max. 6W
  • Loudspeaker :1.5W/8Ω
  • Operating Temperature :-20~+70ºC, RH 90%
  • Storage Temperature :-30~+80℃, RH 90%
SKU RK_WM770
Barcode # 792019218643
Brand Masten
Shipping Weight 1.0200kg
Shipping Width 0.250m
Shipping Height 0.190m
Shipping Length 0.115m
Assembled Width 0.250m

2 Year Warranty
