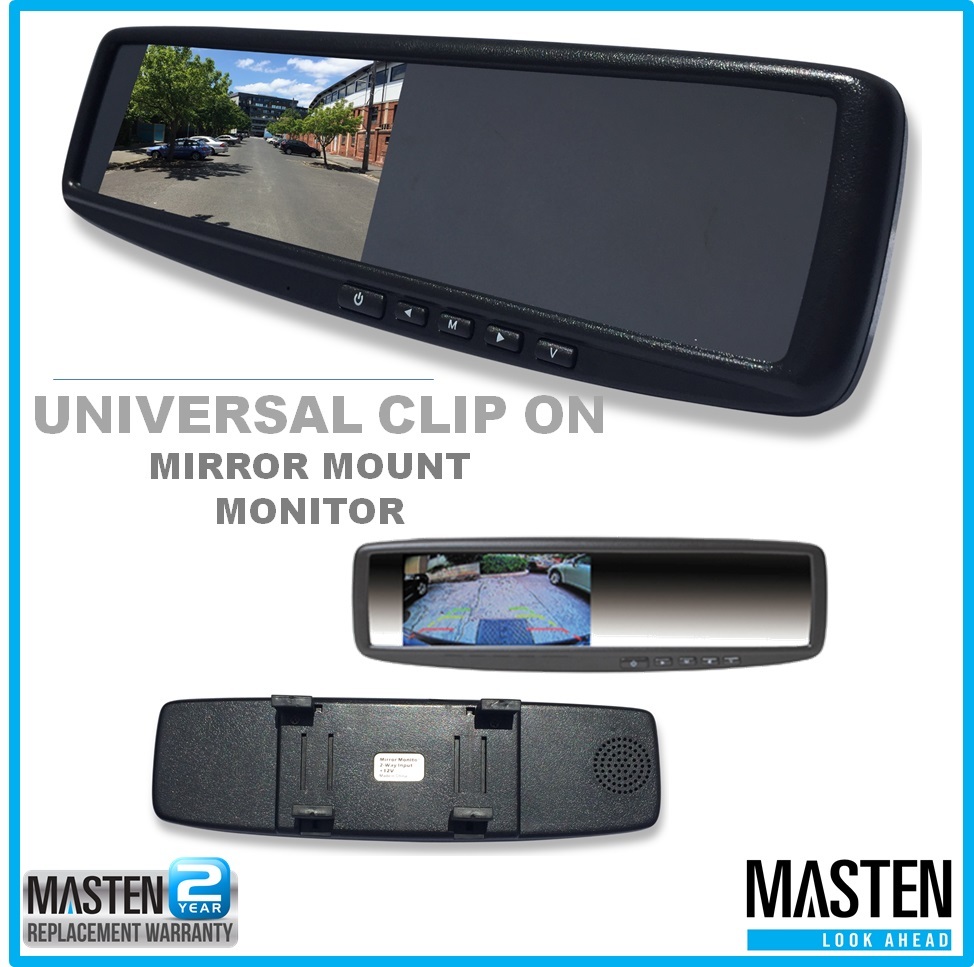

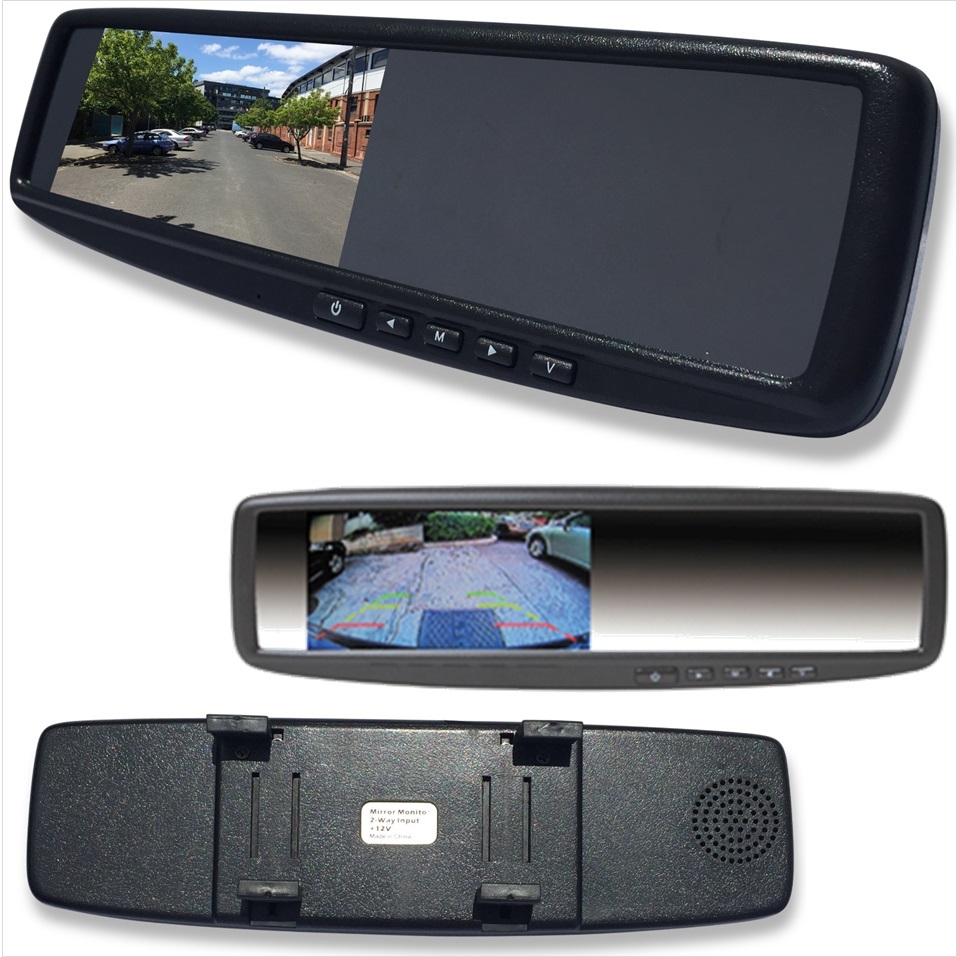

4.3" LCD Replacement Rearview mirror monitor with 2 Inputs - Universal Clip-on Style

The Premium Masten Rear View Camera Mirror replacement displays your camera image conveniently to the side of a highly reflective mirror. Avoid the clutter of screens on your dash, by simply upgrading your existing mirror to the Masten rear view camera mirror and connecting to power. The screen can be switched on automatically when your vehicle is put into reverse or can be left on while driving. Also features 2 Inputs meaning you can add 2 cameras for additional safety.

  • Left-Side 4.3” High-Quality LCD Colour HD Monitor for maximum visibility
  • Large highly reflective mirror
  • 2 Camera Video/Audio Inputs
  • Automatic Camera Display. Both camera inputs have a separate power trigger control wire allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Upgraded universal clamps for a durable and quality install
  • 350CD/m2 Bright Upgraded Digital LCD Panel Built-In
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Compatible with PAL and NTSC



24 Month Melbourne-Based Warranty!

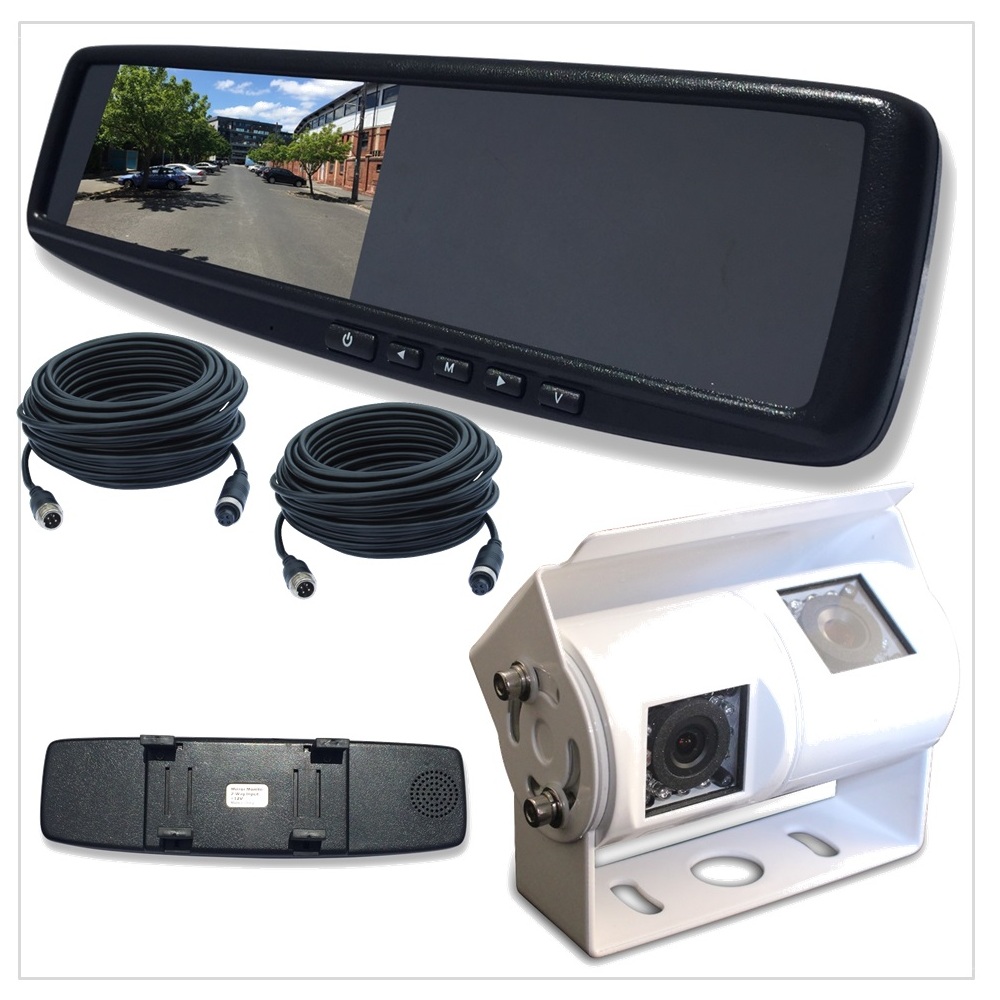

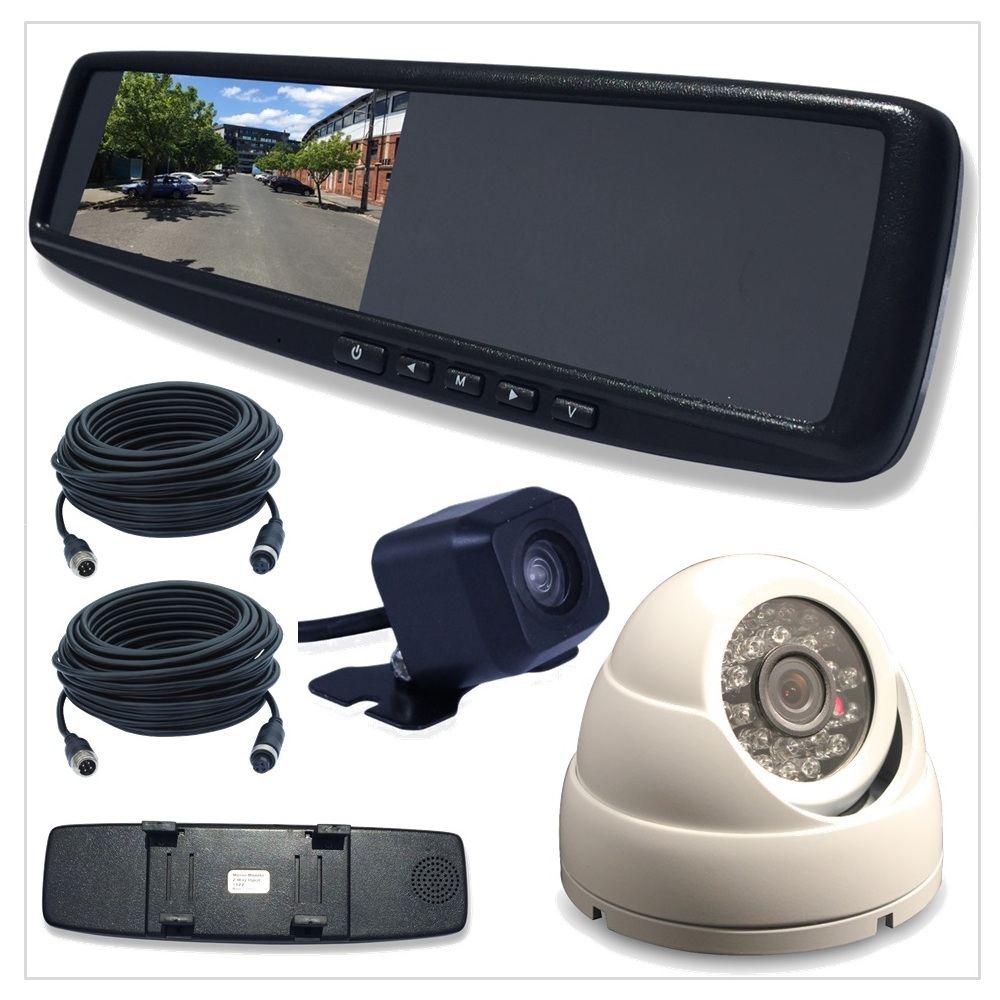

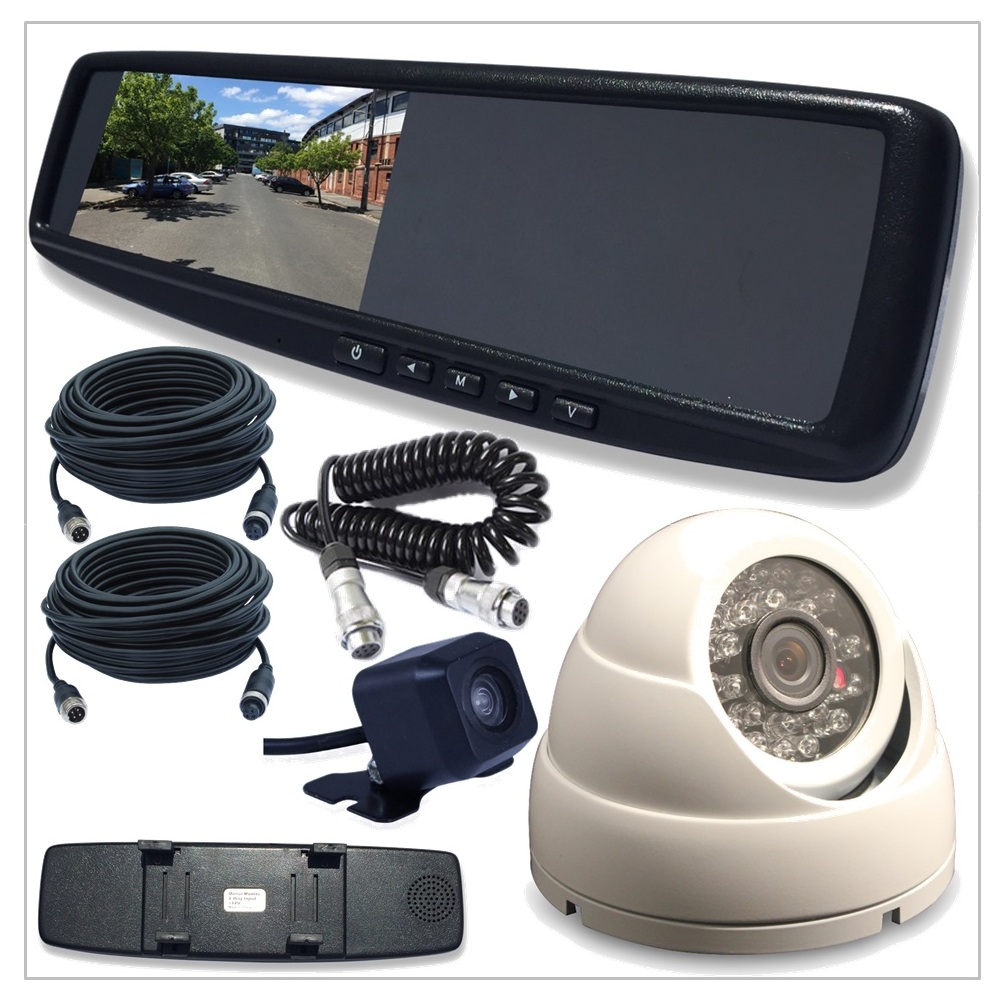

Optional Reverse Cameras – If you’re investing in a DIG Options Monitor it’s also recommended that you invest in a DIG Options Camera for peace of mind. Please note, the Masten Premium 4-Pin Connector cameras will need a 4-Pin to RCA Adapter Cable.

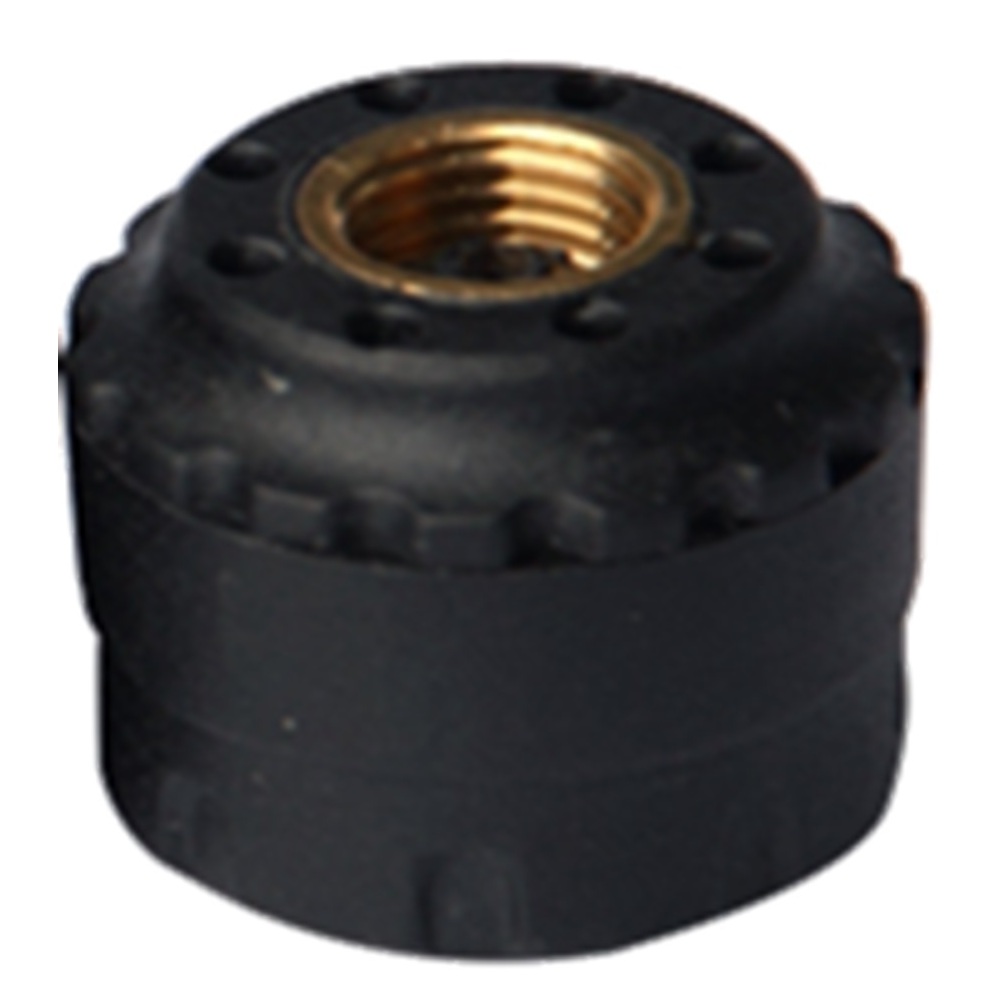

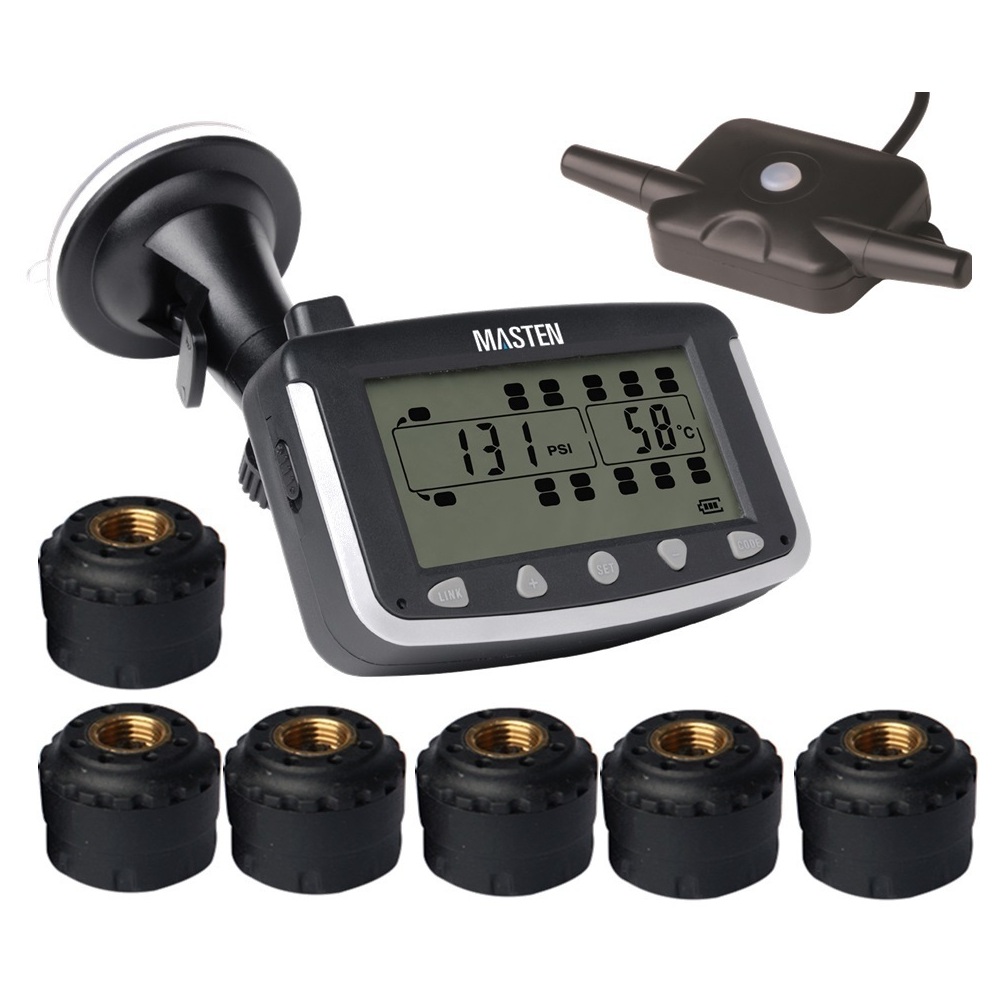

Optional TPMS – For additional safety why not add the Masten Professional Tyre Pressure Monitor System (TPMS) to monitor up to 4 tyres on your vehicle or whatever you’re towing. Available with hidden valve-type sensors or convenient cap-style sensors.



What's Included.

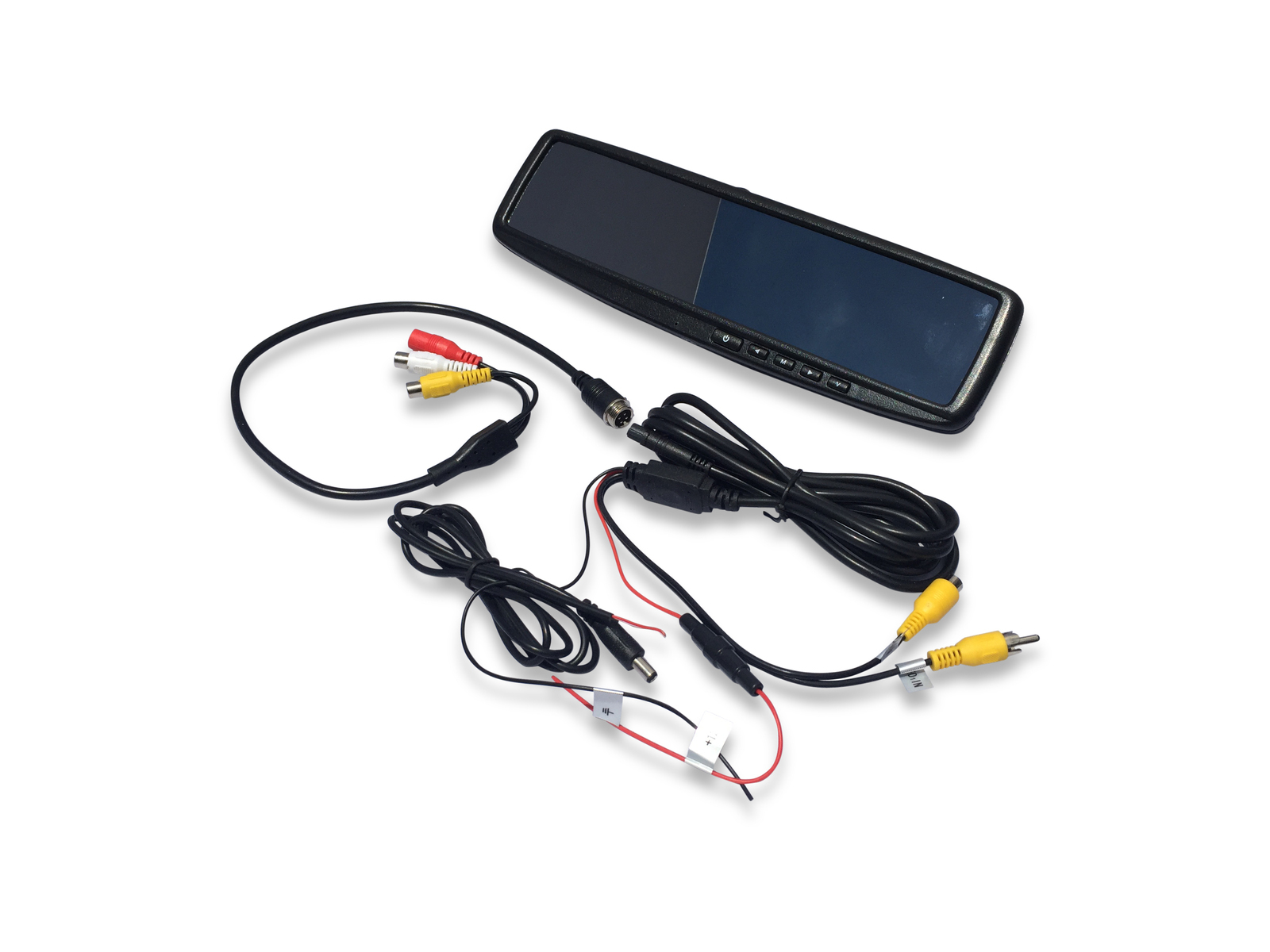

Premium Mirror with Monitor

All Cables Included for Powering



Intruction Manual.

Please download by clicking here.



Panel Specifications
Display/Monitor Size: 4.3 Inch
Monitor Panel Type: Digital LCD Panel
Display Colour: Full Colour
Waterproof Rating (with Certification): Not applicable
TV System:  NTSC/PAL AUTO
Resolution: 480 x R.G.B x 272 Pixels
Aspect ratio: 16:9
Viewing angle: U:50°/ D:60°, R/L: 70°
Brightness: 350cd/㎡
Contrast: 500:1
Lattice Distance:
Physical Specifications
Monitor Housing Material: Plastic

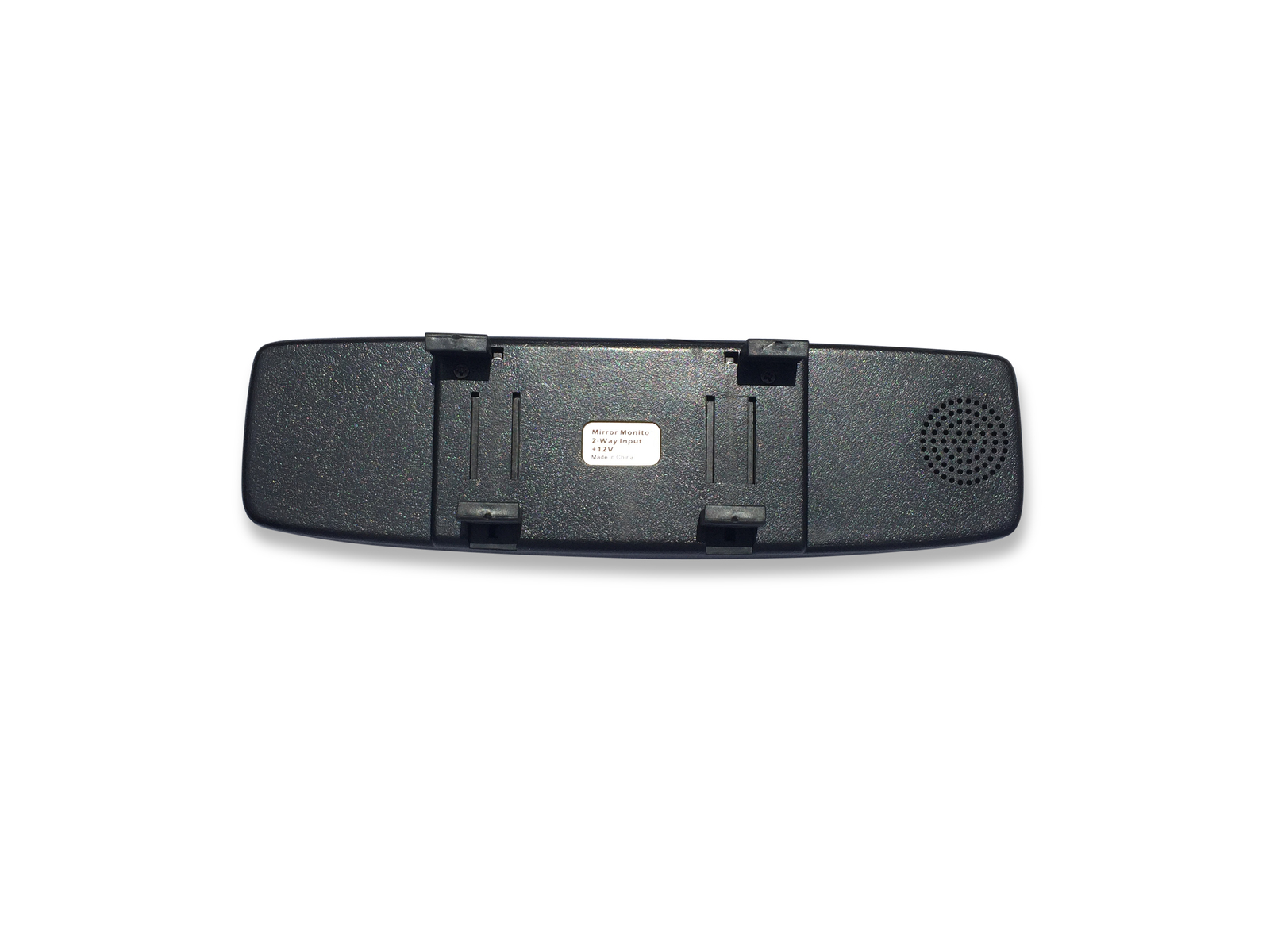

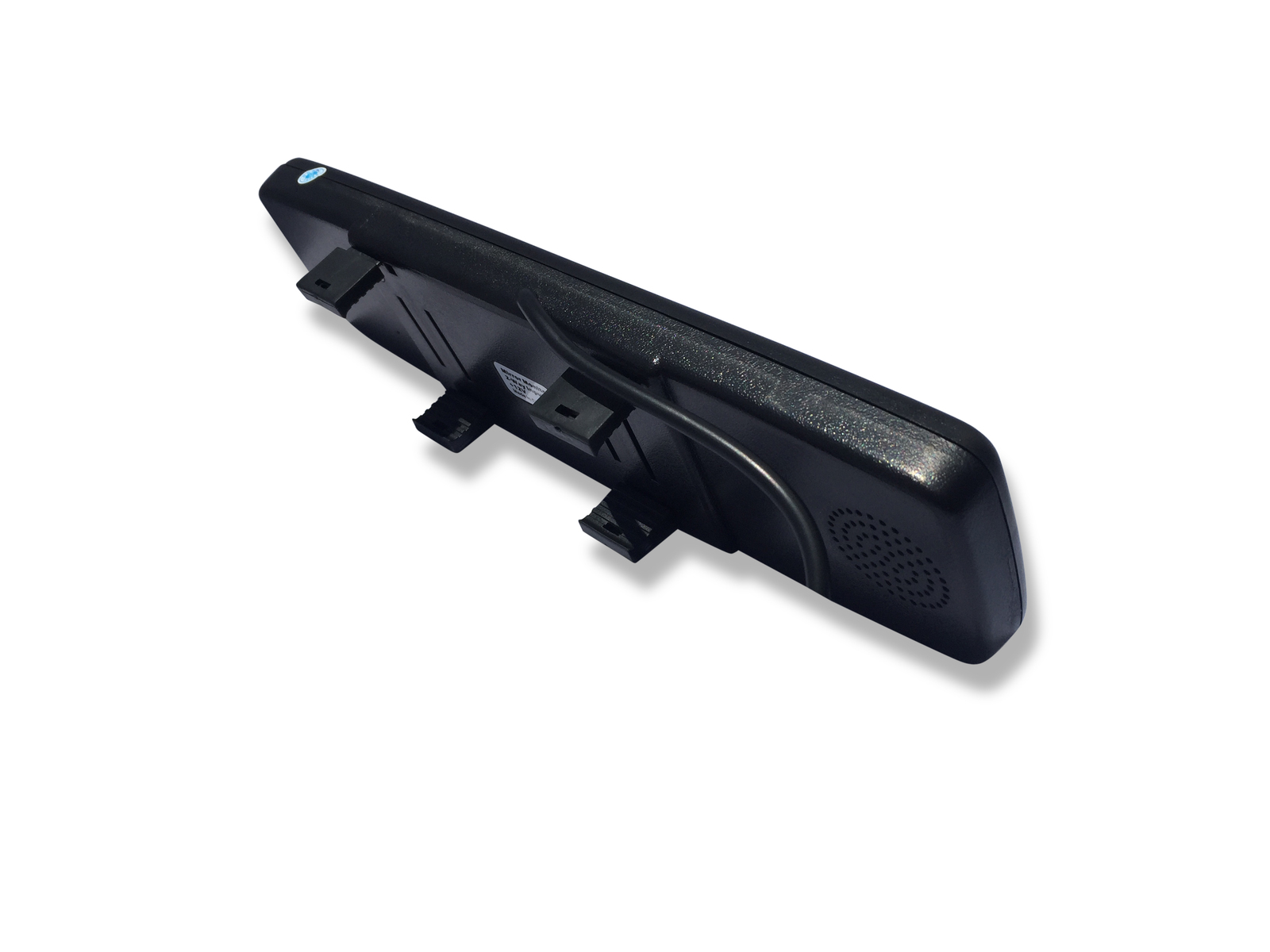

Monitor Bracket Type: Clip onto existing mirror
Monitor Bracket Material: High-Grade ABS Plastic
Other Specifications
Mirror Size: 247*53
Built-in Speaker: No
Bilingual Menu System: Yes
Day/Night Mode Switch: NA
Mirror/Natural Camera View Selection: NA
Remote Control: Yes
Working voltage: 12V
DC Power Overload Protection Yes
Working Current: 0.12
Operating Temperature -10℃'~+50℃
Storage Temperature -30℃~+70℃
Operating humidity: 20-85%
Product Net Weight: 0.40KG
Product Dimensions: 275*80*30
SKU MM-02S
Barcode # 729436060494
Brand Masten
Shipping Weight 1.0000kg
Shipping Width 0.060m
Shipping Height 0.300m
Shipping Length 0.170m
Assembled Width 0.060m

2 Year Warranty
