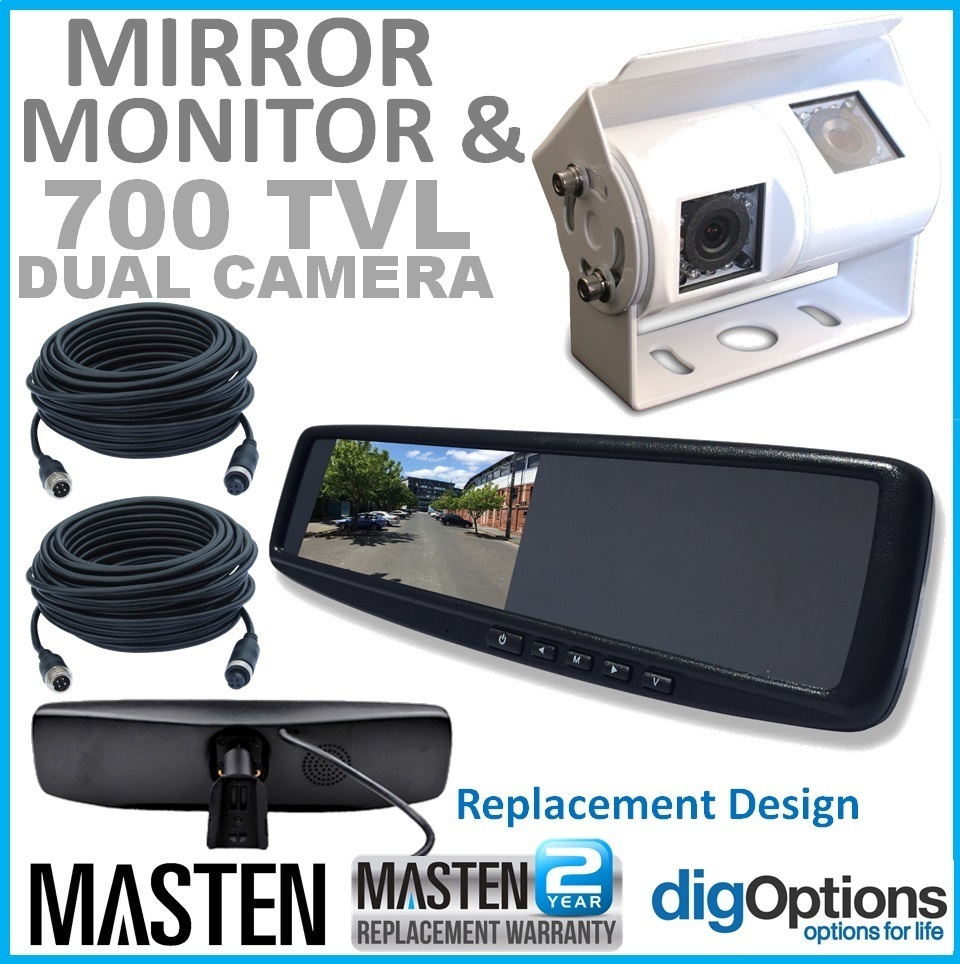

4.3 LCD Rearview Mirror Monitor with Dual Twin View CCD Cameras and Cables Fit KIT-CAM14-M
Item Number: KIT-CAM14-M
Sold Out

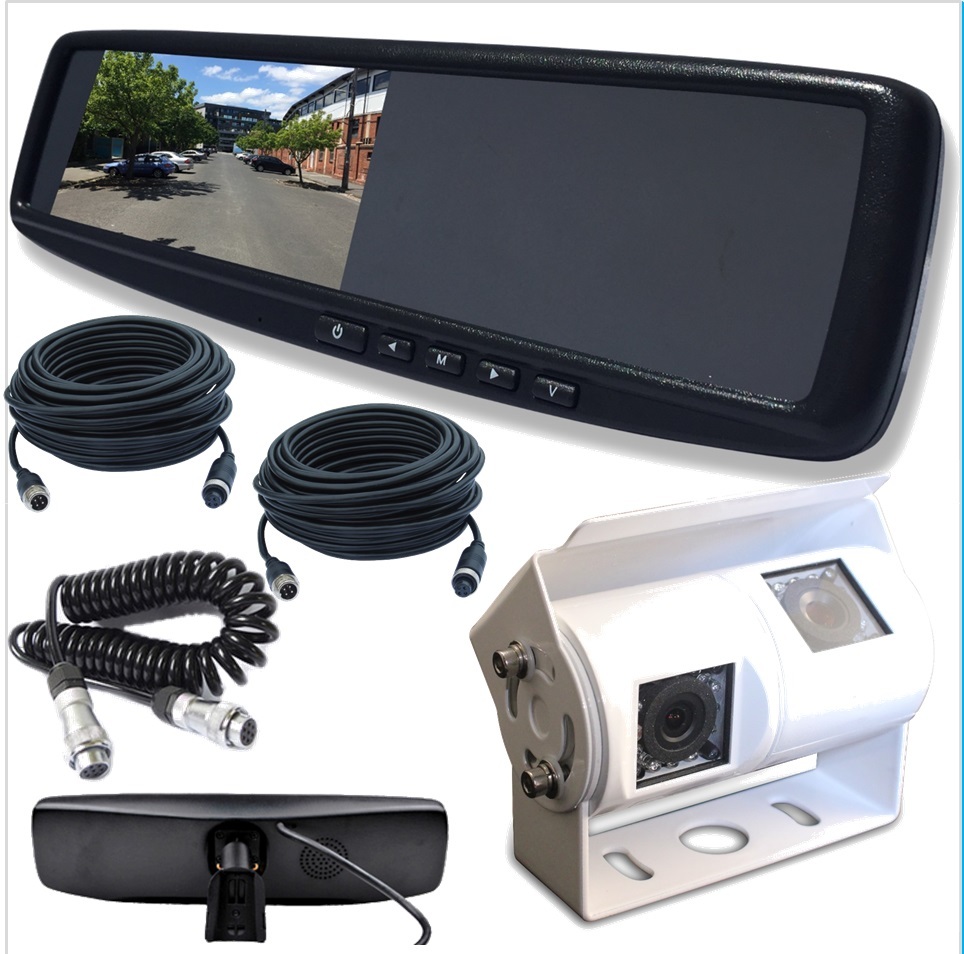

Masten Premium 4.3" Mirror Monitor with Replacement Windscreen Arm, dual view CCD Camera, Spiral Hitch Cable and 2 x Twin Cables
Have Questions? Contact Us Here
This premium rear camera safety kit combines versatile and durable cables with a 4.3" full colour replacement mirror monitor and heavy duty dual CCD camera, this kit is a one-stop shop for all your needs.
This kit includes:

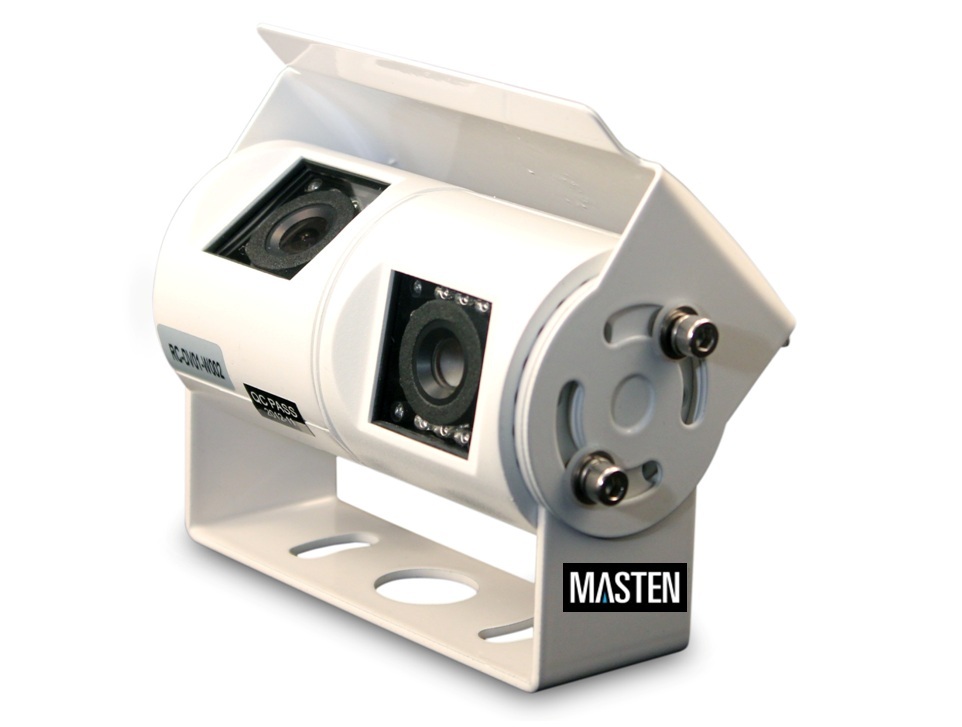

Heavy Duty Twin View Masten White Rear Camera
Camera Style: Dual Camera Housing / Dual View Heavy Duty
Camera Image Sensor: Sony 1/4 CCD 700 TV Lines of Resolution
Camera Colour: White
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 30 LEDs
Night Vision Distance: 15 metres
Viewing Angle: 120° and 45°
White Balance Sensor: Yes
Application: Ideal for Caravans, Trucks and Motor Homes
- World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
- Stylish Design available in White or Black
- PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
- Perfectly adjusted viewing angle for safer reversing and more accurate imagery
- Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
- Wide working temperature of Working temperature: -20°C~70°C.
- Unique IR-CUT effectively avoids color aberration in daylight
- Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
- Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more
7.5m 4-Pin Shielded Camera Extension Cable (Twin)
Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.
15m 4-Pin Shielded Camera Extension Cable (Twin)
Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.
Premium Spiral Hitch Suzi Cable with 4m curley cable
Industrial-grade Shielded 5-Pin DIN spiral hitch cables from DIG Options are well designed and robust for all conditions and ideal if you're looking for a long lasting cable capable of carrying Video, Audio and Power cable signals for 2 cameras. The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection. This cable combines video, audio and power within the same cable and is designed to simplify the rear view camera hitch and un-hitch process. Ideal for connecting cameras to monitors in a range of applications for cars, buses, trucks, farm machinery, mining and much more.

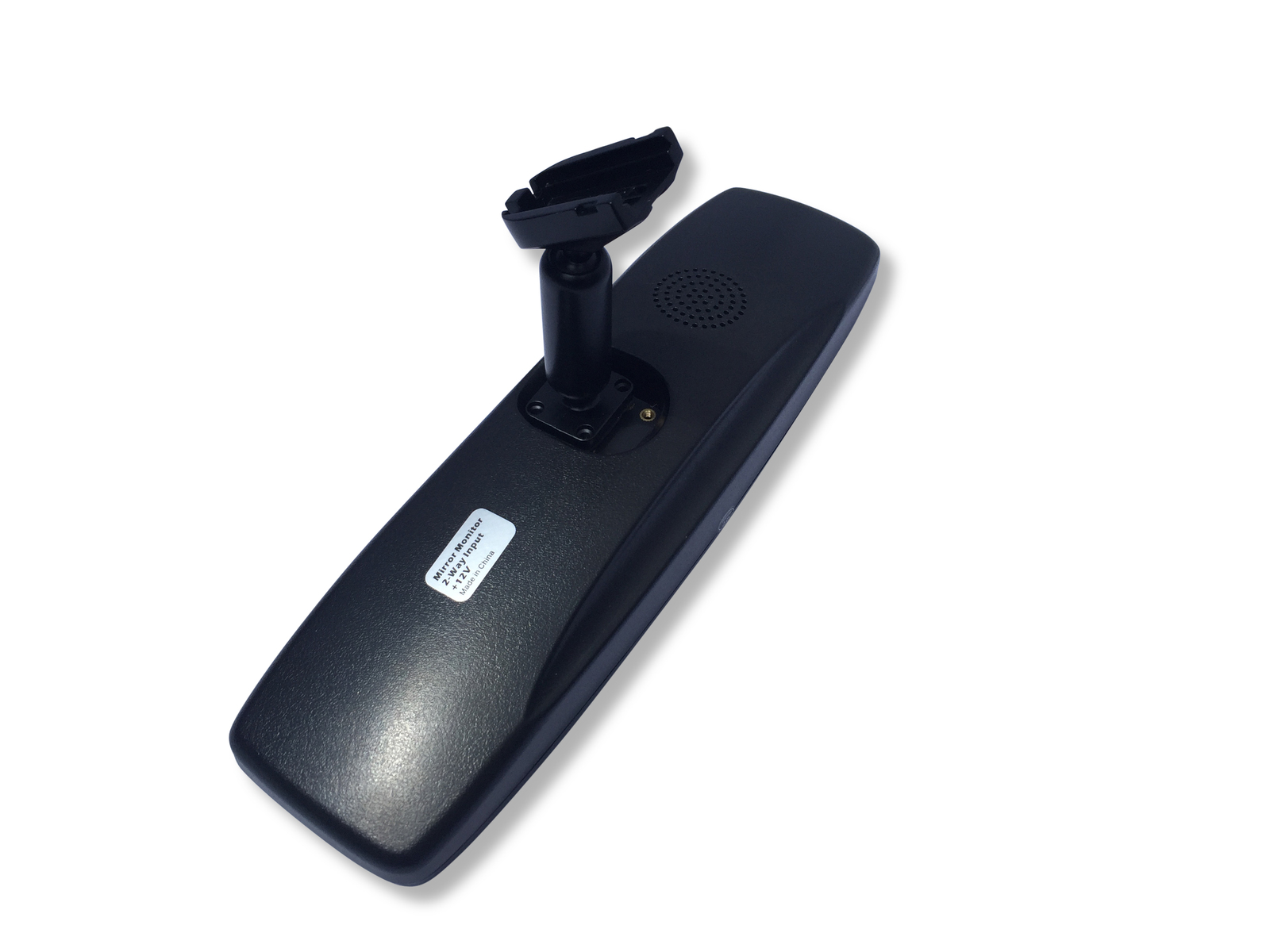

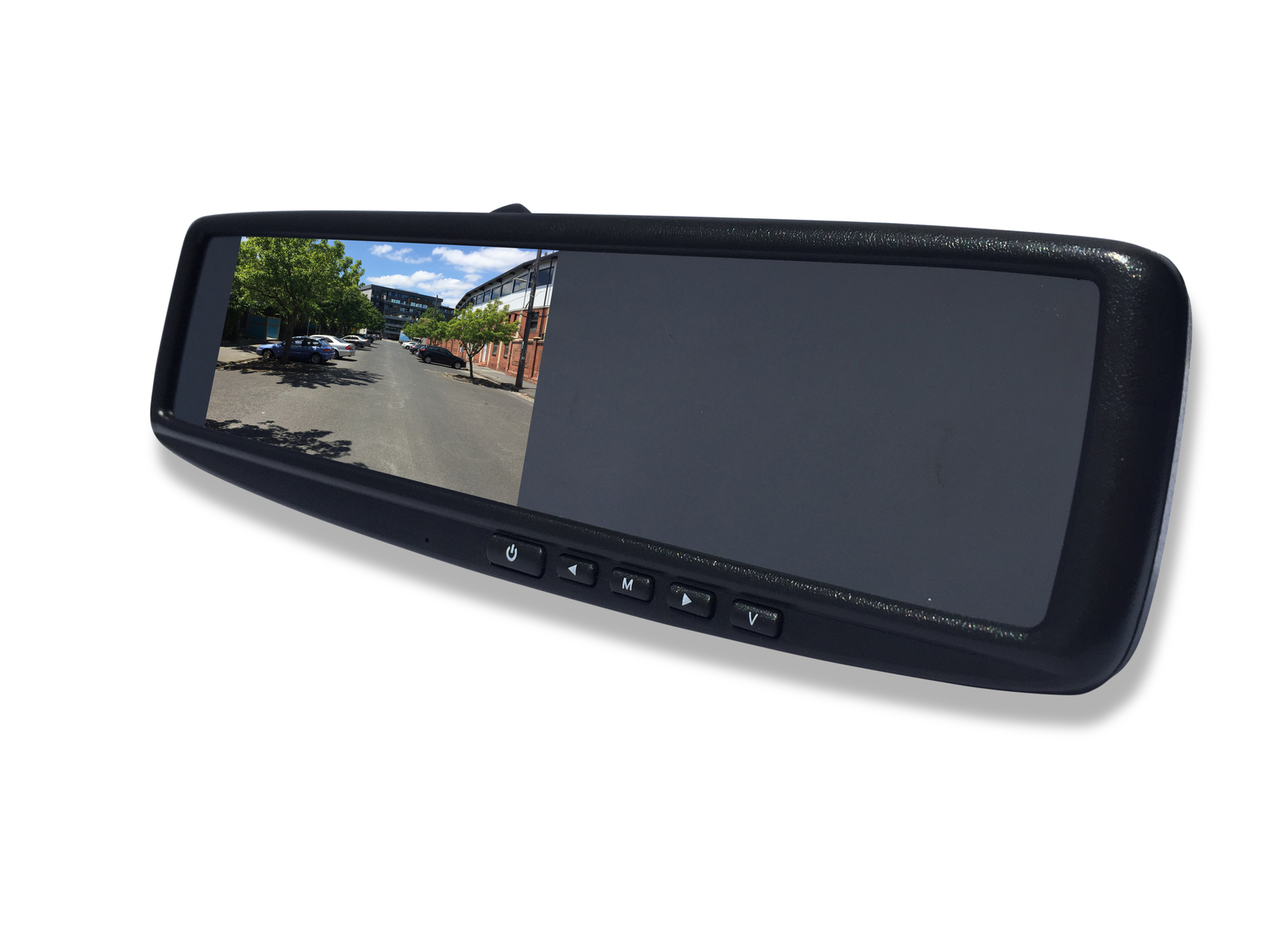

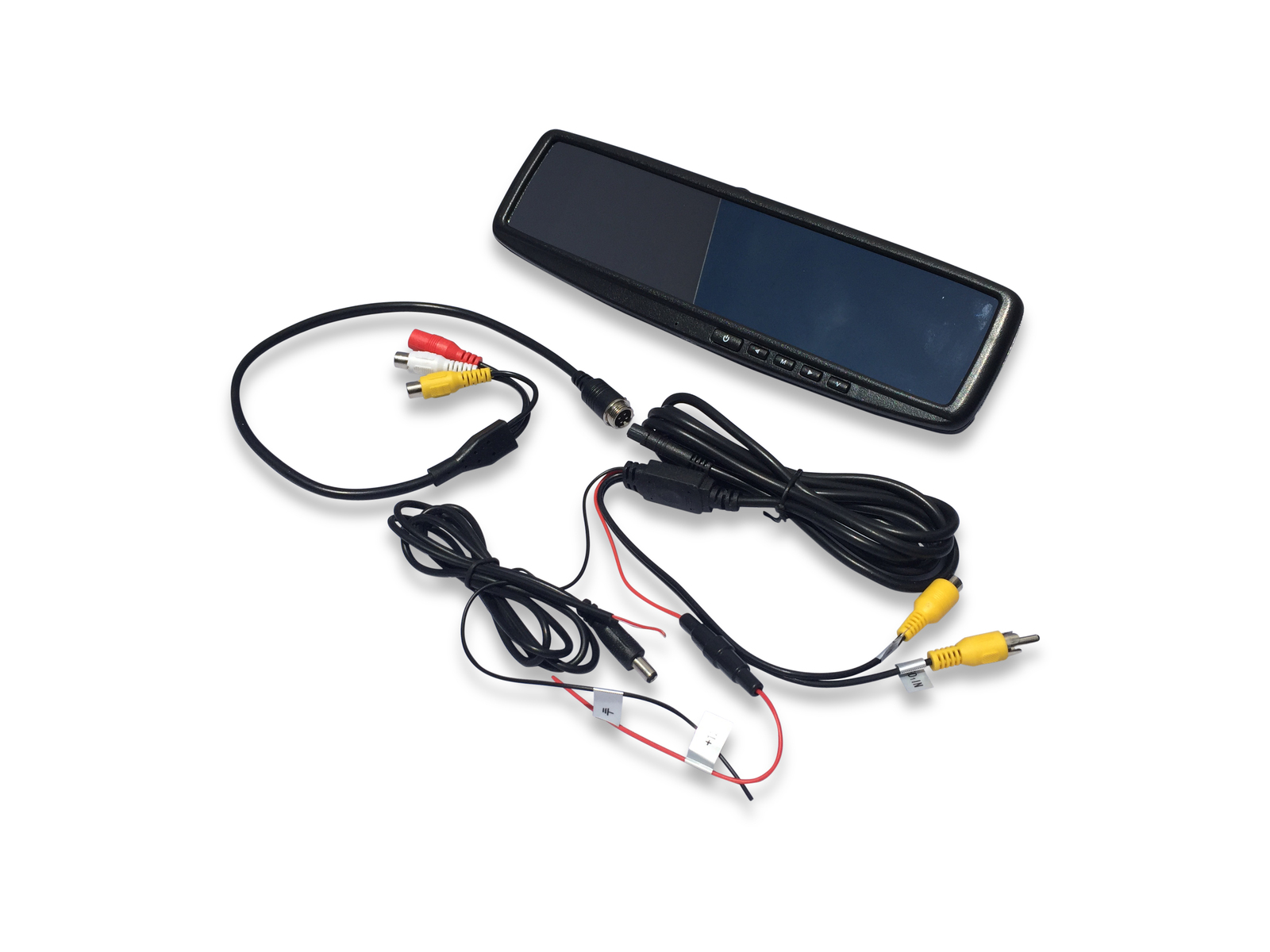

Masten Premium 4.3" Replacement Mirror LCD Full Colour Monitor
The Premium Masten Rear View Camera Mirror replacement displays your camera image conveniently to the side of a highly reflective mirror. Avoid the clutter of screens on your dash, by simply upgrading your existing mirror to the Masten rear view camera mirror and connecting to power. The screen can be switched on automatically when your vehicle is put into reverse or can be left on while driving. Also features 2 Inputs meaning you can add 2 cameras for additional safety.
- Left-Side 4.3â High-Quality LCD Colour HD Monitor for maximum visibility
- Large highly reflective mirror
- 2 Camera Video/Audio Inputs
- Automatic Camera Display. Both camera inputs have a separate power trigger control wire allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops

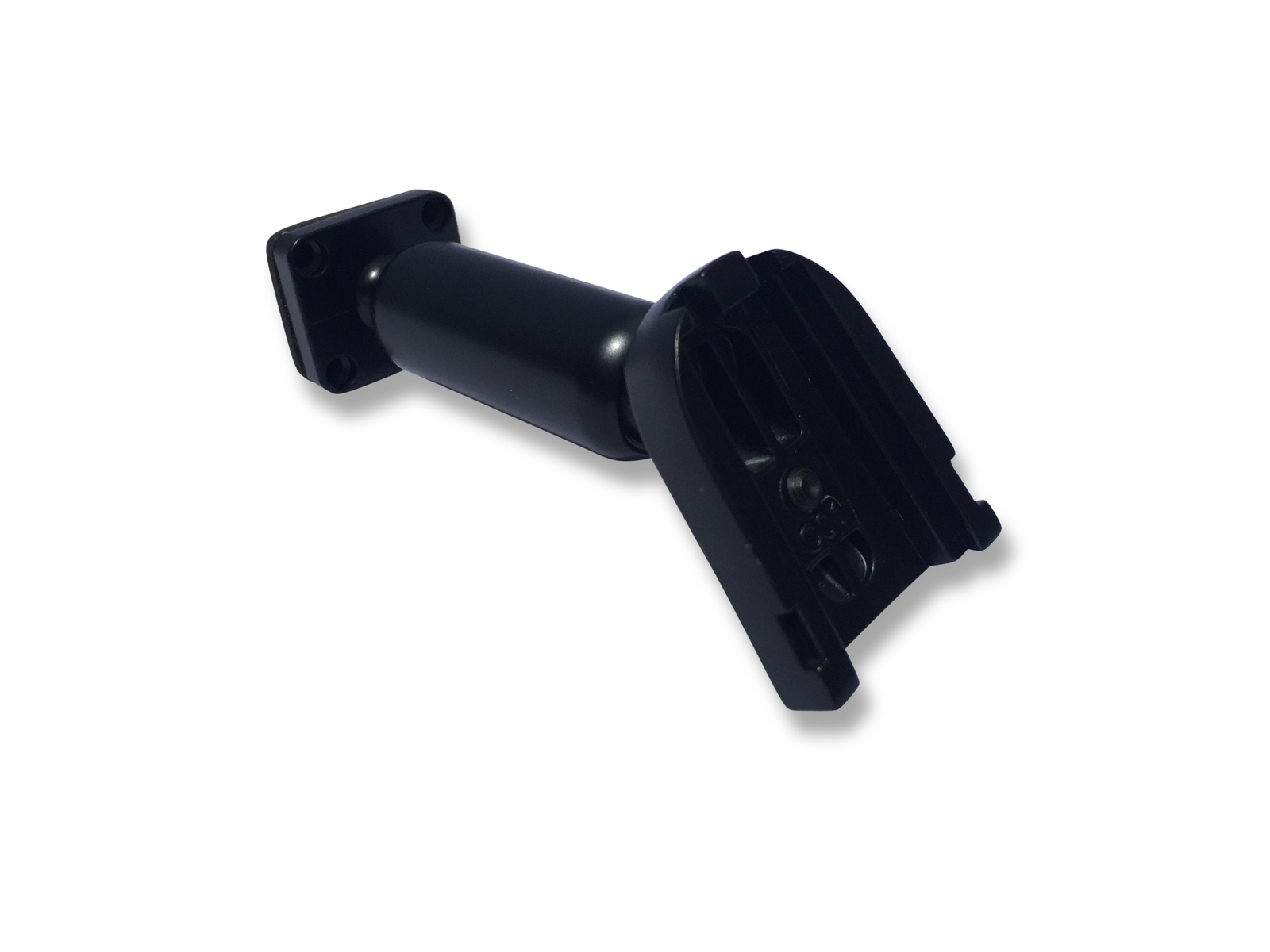

- Metal Replacement Windscreen Arm for a durable and quality install
- 350CD/m2 Bright Upgraded Digital LCD Panel Built-In
- Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
- Compatible with PAL and NTSC
Intruction Manual.
Please download by clicking here.
Parts included
- RC-DV02-W - Masten CCD Heavy Duty Camera White
- EC-72 - 7.5m 4-Pin Shielded Camera Extension Cable (Single)
- EC-152 - 15m 4-Pin Shielded Camera Extension Cable (Single)
- MM-01 Masten Premium 4.3" HD LCD Full Colour Mirror Monitor
- EC-S02 Spiral Hitch Cable
- 2 x EC-4M RCA Adapters
| Monitor Panel Specifications | |
| Display/Monitor Size: | 4.3 Inch |
| Monitor Panel Type: | Upgraded Digital LCD Panel |
| Display Colour: | Full Colour |
| Waterproof Rating (with Certification): | Not applicable |
| TV System: | NTSC/PAL AUTO |
| Resolution: | 480 x R.G.B x 272 Pixels |
| Aspect ratio: | 16:9 |
| Viewing angle: | U:50°/ D:60°, R/L: 70° |
| Brightness: | 350cd/㎡ |
| Contrast: | 500:1 |
| Lattice Distance: | |
| Physical Specifications | |
| Monitor Housing Material: | Plastic |
| Monitor Bracket Type: | Replace existing mirror arm |
| Monitor Bracket Material: | Steel arm |
| Camera Specifications | |
| Camera Inputs: | No |
| Camera Connection Type: | RCA |
| Automatic Camera Display (separate trigger wire): | Yes - 1 Cameras via Trigger Line from Power Source |
| 4 (Quad) Camera View: | No |
| Other Specifications | |
| Mirror Size: | 247*53 |
| Built-in Speaker: | No |
| Bilingual Menu System: | Yes |
| Day/Night Mode Switch: | NA |
| Mirror/Natural Camera View Selection: | NA |
| Remote Control: | Yes |
| Working voltage: | 12V |
| DC Power Overload Protection | Yes |
| Working Current: | 0.12 |
| Operating Temperature | -10℃'~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Operating humidity: | 20-85% |
| Product Net Weight: | 0.40KG |
| Product Dimensions: | 275*80*30 |
Camera Specifications
| Critical Specifications | ||
| Description: |
Premium CMOS Dual Lens/View Camera Also Available |
Premium CCD Dual Lens/View Camera |
| Image Device: | CMOS | 1/4 SONY CCD |
| Resolution: | 420TV lines | 700TV lines |
| Lens: | 2.5mm | 2.5mm |
| Lens Angle: | 120 Degrees / 45 Degrees | 120 Degrees / 45 Degrees |
| Infrared LED light: | 30 LEDs | 30 LEDs |
| IR Distance: | 15m | 15m |
| Waterproof Rating: | IP69K | IP69K |
| Technical Specifications | ||
| TV System: | PAL/ NTSC | PAL/ NTSC |
| Manual Mirror Image Switch | N/A | N/A |
| Effective Pixels: | 512 x 582 pixels / 512 x 492 pixels | 512 x 582 pixels / 512 x 492 pixels |
| Sensing Area: | 3.6mm x 2.7mm | 3.6mm x 2.7mm |
| Scanning System: | 2:1 Interlace | 2:1 Interlace |
| Sync. System: | Internal | Internal |
| Horizontal Sync. Frequency: | 15.625 KHz / 15.734KHz | 15.625 KHz / 15.734KHz |
| Vertical Sync. Frequency: | 50Hz / 60Hz | 50Hz / 60Hz |
| Minimum Illumination: | 0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2 |
0Lux (Infrared lamps on) 0 .1Lux(day) / F1.2 |
| Video Output: | 1.0vp-p, 75Ohm | 1.0vp-p, 75Ohm |
| Gamma Consumption: | 0.45 | 0.45 |
| AGC: | Auto | Auto |
| S/N Ratio: | Better than 48dB | Better than 48dB |
| White Balance: | Auto | Auto |
| Electronic Shutter: | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds |
| BLC: | Auto | Auto |
| Shell material: | Aluminum alloy | Aluminum alloy |
| Current Consumption: | Max. 180mA | Max. 180mA |
| Power Supply: | DC12V | DC12V |
| Operating Temperature: | -20°C~70°C , RH95％ MAX | -20°C~70°C , RH95％ MAX |
| Storage Temperature: | -40°C~80°C，RH95％ MAX | -40°C~80°C，RH95％ MAX |
| Dimensions : | 98 (L) ×67 (w) ×82(H) mm | 98 (L) ×67 (w) ×82(H) mm |
| SKU | KIT-CAM14-M |
| Barcode # | 9357423016387 |
| Brand | Masten |
| Shipping Weight | 4.1920kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.060m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.003060000m3 |
2 Year Replacement Warranty
