5" Monitor & Rear View Universal CCD Reverse Camera HD Colour Night Vision RC-07-M
Item Number: RC-07-M
Sold Out
Latest Truck Van Car Reversing Sony CMOS Camera HD Rear View IR Caravan Black Reverse is available at digoptions.com
Have Questions? Contact Us Here
IMPORTANT. This camera uses a Sony Image Sensor component. The quality of image is what you would expect from Sony but without the high price tag for Sony Branded cameras. This is a Masten branded camera.

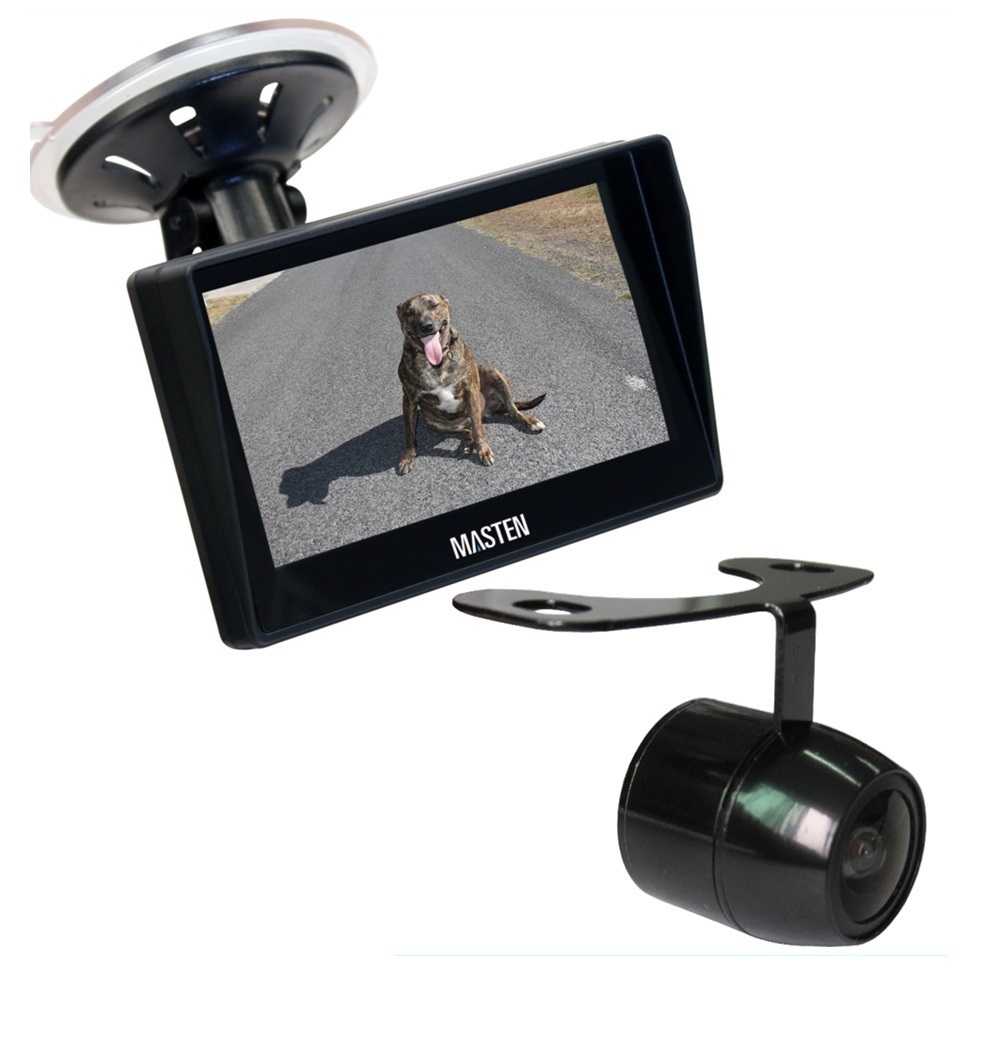

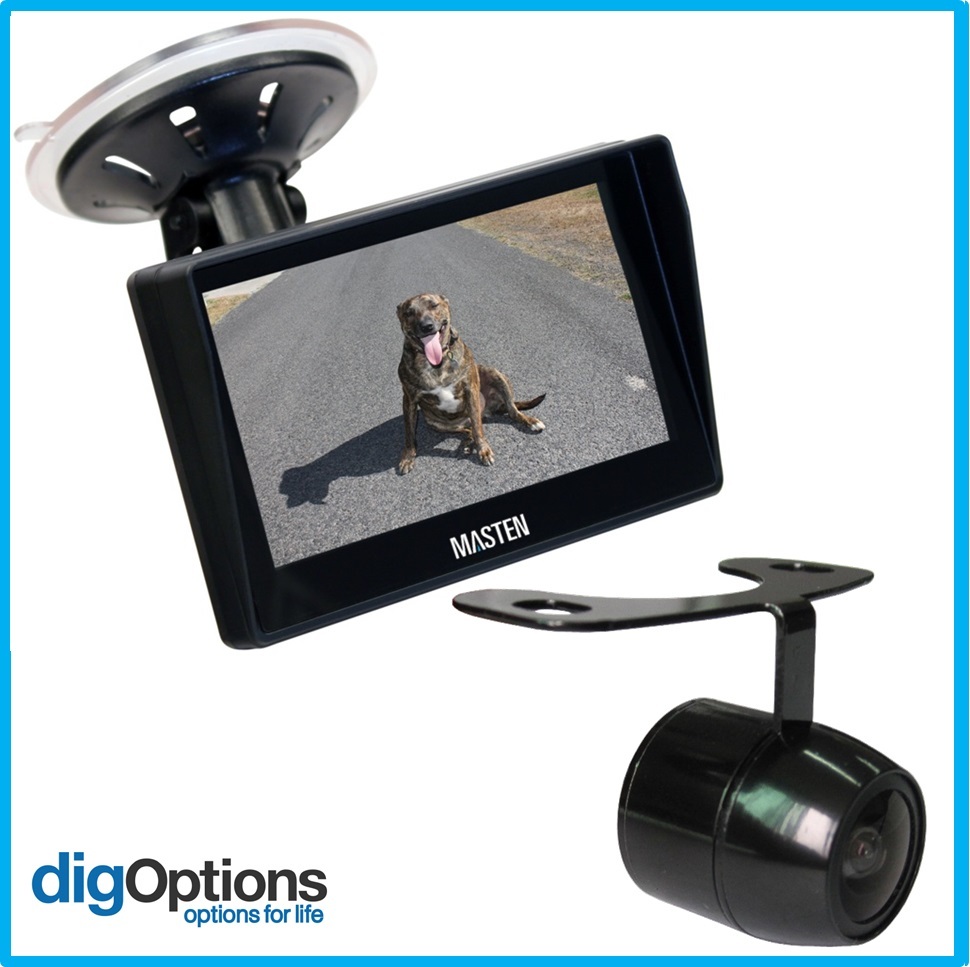

5" Monitor and Universal Mini Eyeball Round Premium CCD Camera Kit
TV FORMAT: PAL
Short description
DIG Options has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening with us. DIG Options provide the automotive electronics, dash kits, cables, adapters and more so you can keep your vehicle updated with the latest technology.
Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed for an Australia 12 month warranty.
Description
This listing includes 2 parts which are:
- 5" Colour Monitor
- A Premium Universal CCD Camera
- 5m Video Cable and Integrated Trigger Wire

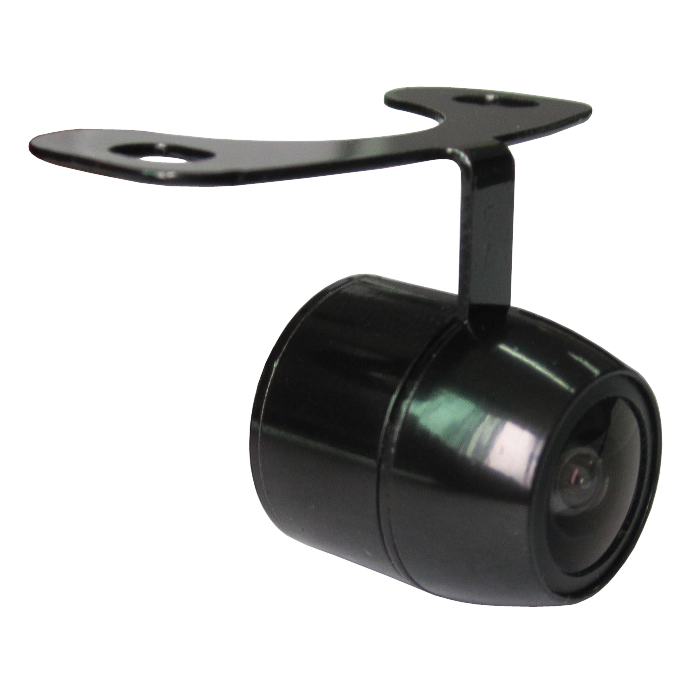

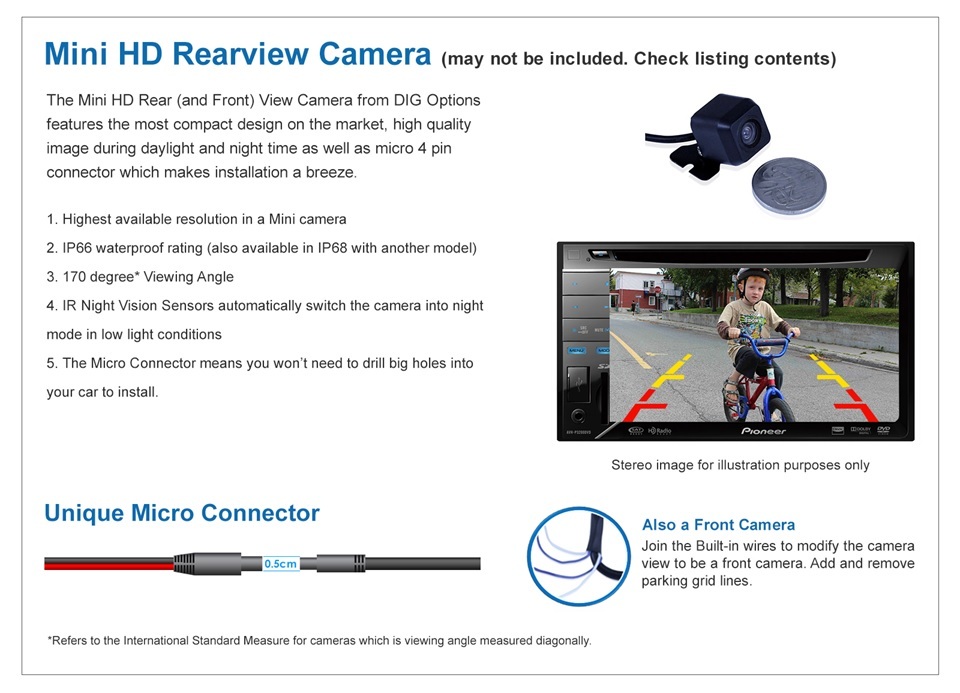

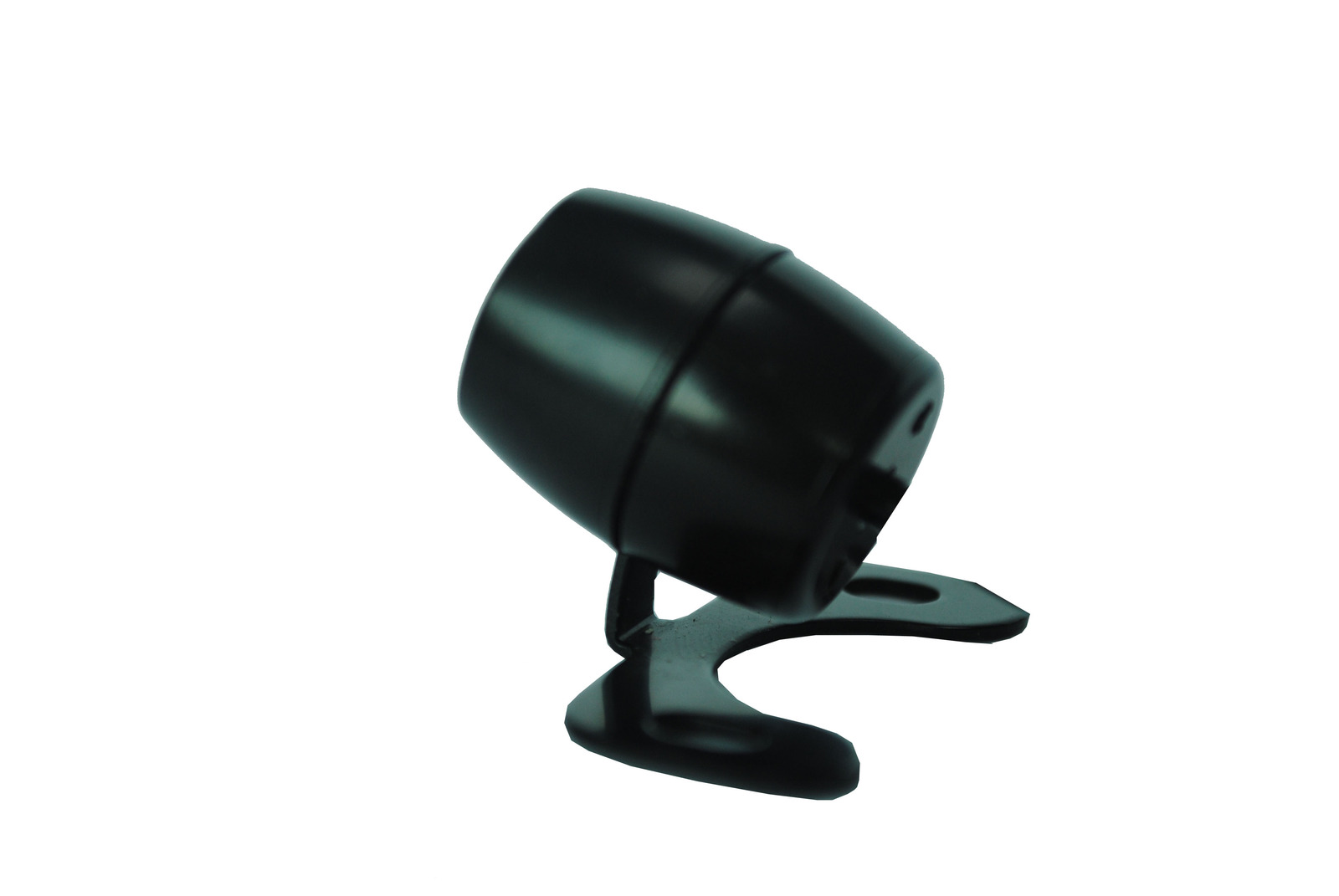

About the Camera
170° (vertical viewing angle) High Resolution Mini CCD Reversing Park Camera
- High Resolution Colour CCD Image Sensor with crisp colour display and the latest sensor technology for improved visibility
- Best-in-Class PAL 976 (H) 576 (V) pixel Resolution
- Special trouble-free micro 4-pin connector means you donât need to drill huge holes and it makes the install easier
- High Water/Dust Proof Rating
- Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
- The 170 degree viewing range with advanced CCD Image Sensor provides the latest technology in reverse cameras.
- Due to the cameras low light properties it works brilliantly at night using the light generated from your reverse lights and the camera is water resistant.

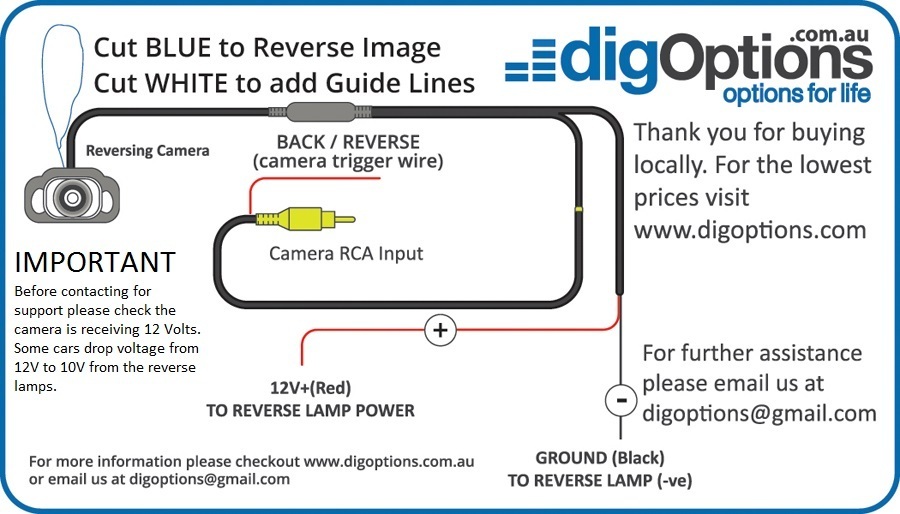

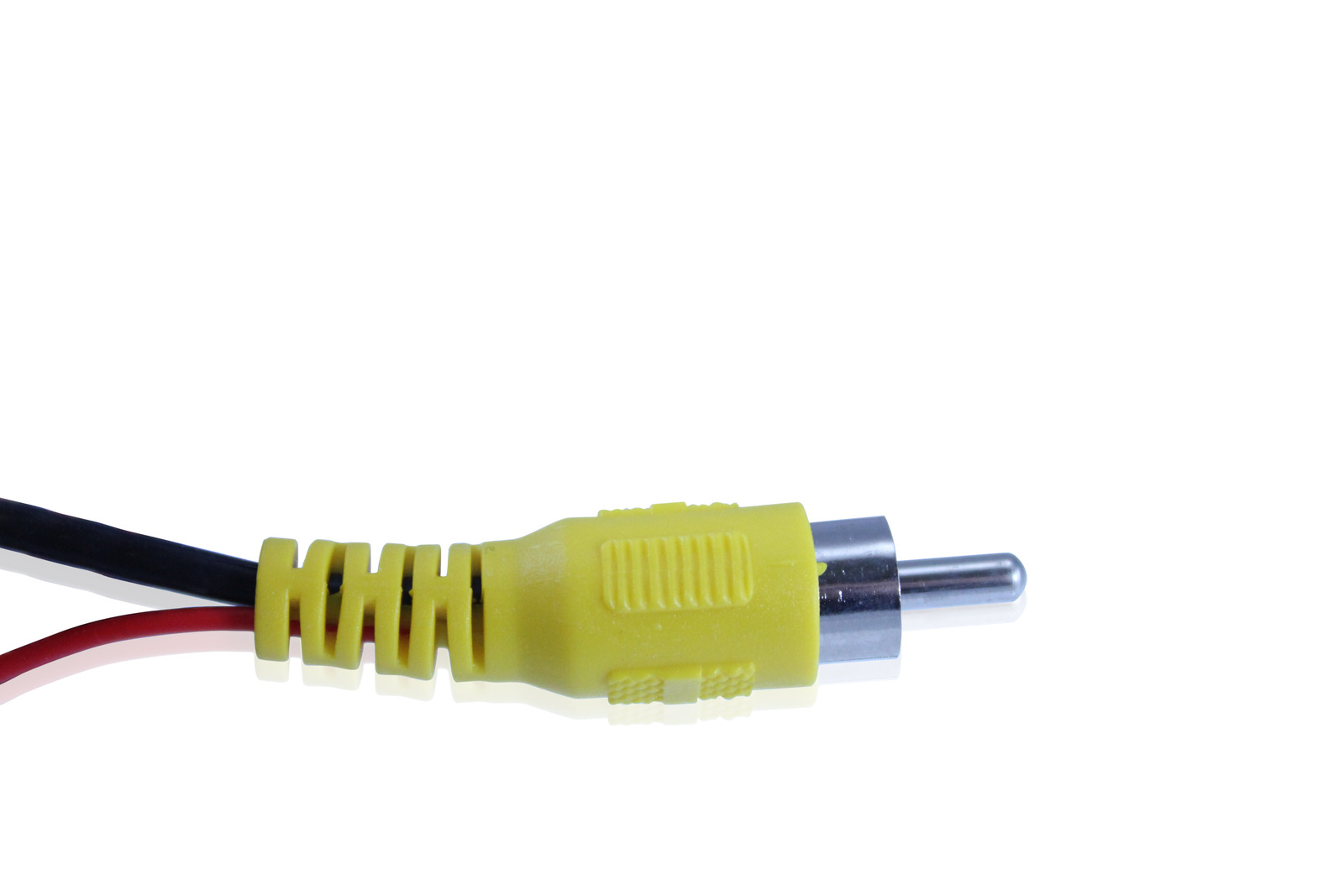

- The camera features an RCA plug for connection into your monitor video input as well as built in trigger line which means you won't need to run a separate wire for the reverse power trigger input.

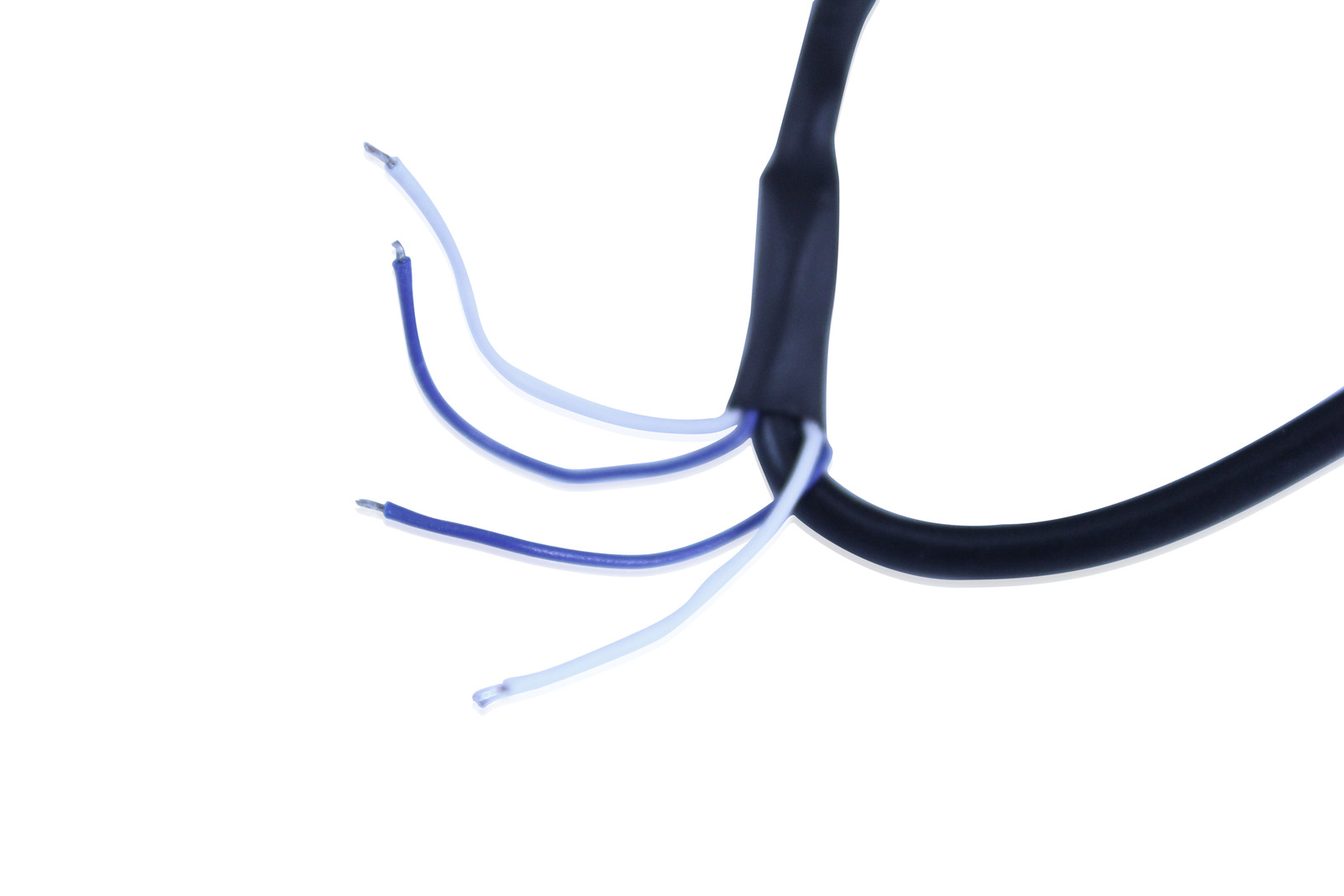

- Cutting the in-built connectors allows the camera to be both a reverse camera (mirror image) or front view camera (True view)
About the Compact 5" HD LCD Monitor with 2-Camera Inputs
- Compact 4â High-Quality LCD Colour Monitor with 1440 x 272 Pixel Resolution for maximum visibility
- 2 Camera Inputs with High Quality RCA Plugs for a secure connection
- Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
- Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
- Compatible with PAL and NTSC
- Window-Suction Cup Mount for a secure fit in line of sight
- Easy to install
12-Month Melbourne-Based Warranty!
Vehicle Compatibility
This part is suitable for all vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.
Looking for a Premium Navigation DVD Bluetooth IN-DASH System? Checkout our store categories for a suitable solution or contact us.
Other Accessories for your Vehicle are in our store including:
- Plug and Play Premium Integrated Navigation DVD Bluetooth System
- Fascia Stereo Surround
- Premium Reverse Camera
- In-Car Entertainment Monitors
- Dash Removal Tools
- Tyre Pressure Monitor Systems
- Off Road Navigation Software
- Home Electronics and much more
Specifications
Camera Specifications
| Total Pixels | 976 (H) X 592（V） |
| Effect Pixels | 900 (H) X 576 (V) |
| Pixel size | 5.00 um X 7.40 um |
| Image Area | 4.88 mm X 3.67 MM |
| Image Sensor | 1/3 inch CCD |
| Resolution | 720TV |
| Dark Signal | 48.8[mv/sec]@60℃ |
| Illuminance | 9.67[V/Lux.sec] |
| Max Gain | 0.5-16 Times |
| Datarate | Both：27 MB / S |
| NTSC ：60 MB/S | |
| PAL ：50 MB/S | |
| Power Supply | 12V DC (3.3V IN) |
| Current | 3.3V/60mA, 12V/120mA |
| Capacity | 〈350mw |
| Working Temperature | –30°C to 80°C |
| Store Temperature | –50°C to +105°C |
| S/N Ratio | >45.3dB |
| Pixel dynamic range | > 63.2dB |
| IP Rating | IP67 |
| Lens Angle | 130 degree （Horizontal) ; 170 degree (diagonal) |
| Monitor Specifications | |
| Display/Monitor Size: | 4 Inch |
| Monitor Panel Type: | Digital LCD Panel |
| Display Colour: | Full |
| Waterproof Rating (with Certification): | NA |
| Camera Inputs: | 2 |
| Quad Camera View: | NA |
| TV System: | NTSC/PAL AUTO |
| Resolution: | 480 x R.G.B x 272 Pixels |
| Aspect ratio: | 16:09 |
| Viewing angle: | U:50°/ D:60°, R/L: 70° |
| Brightness: | 350cd/㎡. |
| Contrast: | 500:1 |
| Lattice Distance: | NA |
| Monitor Housing Material: | Plastic |
| Monitor Bracket Type: | Window Suction Mount |
| Monitor Bracket Material: | Plastic |
| Camera Connection Type: | RCA |
| Automatic Camera Display: | Yes - 2 Cameras via Trigger Line from Power Sourc |
| Built-in Speaker: | NA |
| Bilingual Menu System: | NA |
| Day/Night Mode Switch: | NA |
| Mirror/Natural Camera View: | NA |
| Remote Control: | NA |
| Working voltage: | 12V |
| DC Power Overload Protection | NA |
| Working Current: | NA |
| Operating Temperature | -20℃'~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Operating humidity: | 10% |
| Product Net Weight: | 0.25KG |
| Product Dimensions: | 104mm*18mm*70mm |
| SKU | RC-07-M |
| Barcode # | 729436060722 |
| Brand | DIG Options |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.070m |
| Shipping Length | 0.035m |
| Assembled Width | 0.130m |
