7" HD Digital Clip On LCD Rearview mirror monitor with 2 Inputs
Item Number: MM-03
Sold Out
Masten Premium 7" Mirror Monitor with Premium Clamping System
Have Questions? Contact Us Here
7" HD LCD Rearview mirror monitor with 2 Inputs - Clip On Universal
RRP$199
The DIG Options Rear View Camera Mirror replacement displays your camera image conveniently to the side of a highly reflective mirror. Avoid the clutter of screens on your dash, by simply upgrading your existing mirror to the DIG Options rear view camera mirror and connecting to power. The screen can be switched on automatically when your vehicle is put into reverse or can be left on while driving. Also features 2 Inputs meaning you can add 2 cameras for additional safety.
- 7â High-Quality LCD Colour HD Monitor for maximum visibility
- Large highly reflective mirror
- 2 Camera Video/Audio Inputs
- Automatic Camera Display. Both camera inputs have a separate power trigger control wire allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
- Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
- Compatible with PAL and NTSC
- Universal Clip-on Clamps for a durable and quality install.
- Low Power Consumption
- Full Colour LED Backlight Display
â
CCD Mini Reverse Camera Features RRP$99
Universal Mini Square Premium CCD Camera
Short description
DIG Options has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening with us. DIG Options provide the automotive electronics, dash kits, cables, adapters and more so you can keep your vehicle updated with the latest technology.
Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed for an Australia 12 month warranty.
Description
This listing includes 2 parts which are:
- A Premium Universal CCD Camera
- 5m Video Cable and Integrated Trigger Wire
About the Camera
170° (vertical viewing angle) High Resolution Mini CCD Reversing Park Camera
- High Resolution Colour CCD Image Sensor with crisp colour display and the latest sensor technology for improved visibility
- Best-in-Class PAL 704x576 pixel Resolution
- Special trouble-free micro 4-pin connector means you donât need to drill huge holes and it makes the install easier
- High Water/Dust Proof Rating
- Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
- The 170 degree viewing range with advanced CCD Image Sensor provides the latest technology in reverse cameras.
- Due to the cameras low light properties it works brilliantly at night using the light generated from your reverse lights and the camera is water resistant.
- The camera features an RCA plug for connection into your monitor video input as well as built in trigger line which means you won't need to run a separate wire for the reverse power trigger input.
Vehicle Compatibility
This part is suitable for all vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.
12-Month Melbourne-Based Warranty!
Optional Reverse Cameras â If youâre investing in a DIG Options Monitor itâs also recommended that you invest in a DIG Options Camera for peace of mind. Please note, the Masten Premium 4-Pin Connector cameras will need a 4-Pin to RCA Adapter Cable.
Optional TPMS â For additional safety why not add the Masten Professional Tyre Pressure Monitor System (TPMS) to monitor up to 4 tyres on your vehicle or whatever youâre towing. Available with hidden valve-type sensors or convenient cap-style sensors.

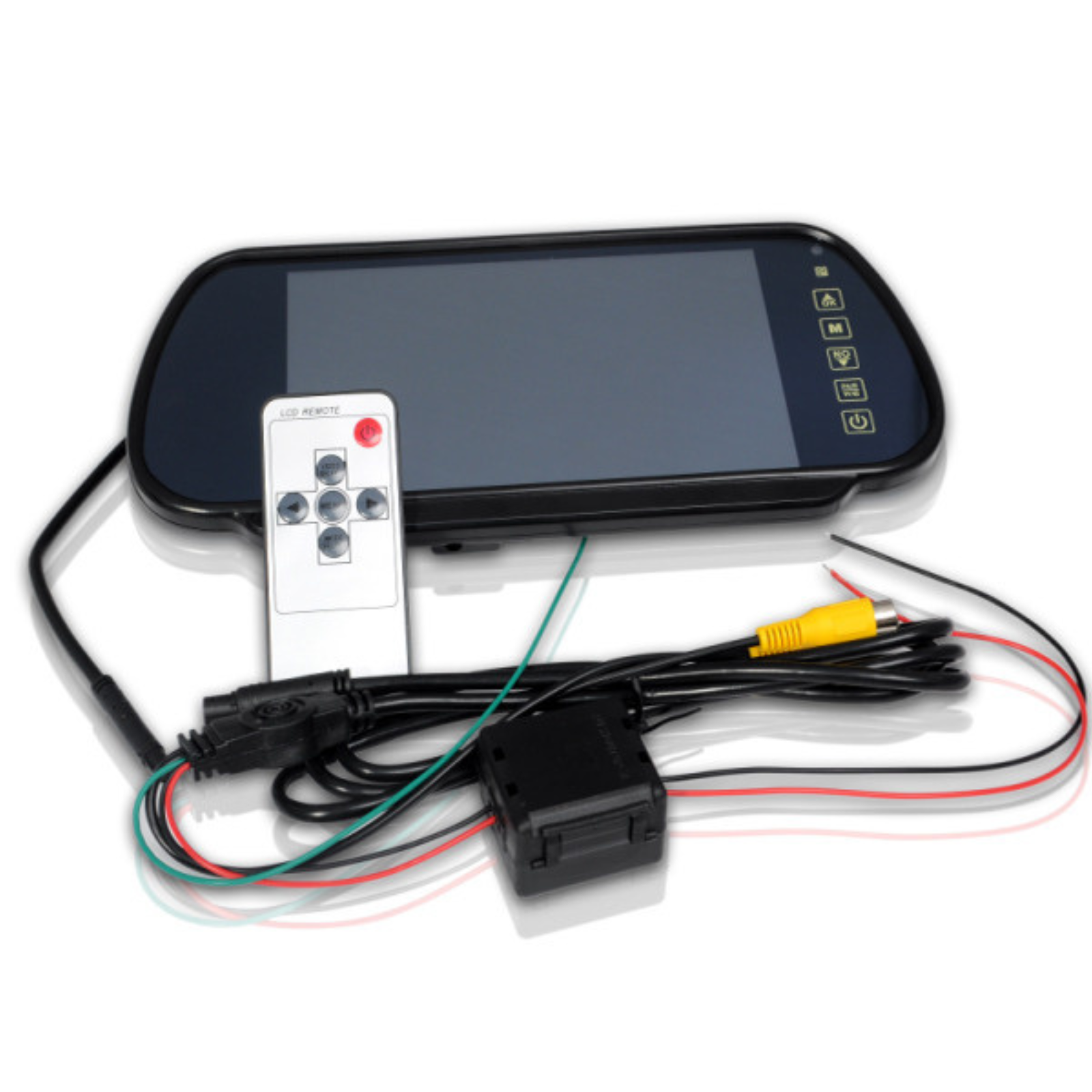

What's Included.
Premium Mirror with Clip-On Clamps
All Cables Included for Powering
Remote Control
CCD Mini Camera
| Panel Specifications | |
| Display/Monitor Size: | 7 Inch |
| Monitor Panel Type: | Upgraded Masten Digital LCD Panel |
| Display Colour: | Full Colour |
| Waterproof Rating (with Certification): | Not applicable |
| TV System: | NTSC/PAL AUTO |
| Resolution: | 800 x R.G.B x 480 Pixels |
| Aspect ratio: | 16:9 |
| Viewing angle: | U:100°, V/L: 80° |
| Brightness: | 350cd/㎡ |
| Contrast: | 200:1 |
| Lattice Distance: | |
| Physical Specifications | |
| Monitor Housing Material: | Plastic |
| Monitor Bracket Type: | Clip Over |
| Monitor Bracket Material: | ABS |
| Camera Specifications | |
| Camera Inputs: | 2 |
| Camera Connection Type: | RCA |
| Automatic Camera Display (separate trigger wire): | Yes - 1 Cameras via Trigger Line from Power Source |
| 4 (Quad) Camera View: | No |
| Other Specifications | |
| Mirror Size: | 234*91mm |
| Built-in Speaker: | Yes |
| Bilingual Menu System: | Yes |
| Day/Night Mode Switch: | NA |
| Mirror/Natural Camera View Selection: | Yes |
| Remote Control: | Yes |
| Working voltage: | 12V |
| DC Power Overload Protection | Yes |
| Working Current: | 0.12 |
| Operating Temperature | -10℃'~+50℃ |
| Storage Temperature | -30℃~+70℃ |
| Operating humidity: | 20-85% |
| Product Net Weight: | 0.60KG |
| Product Dimensions: | 250*110mm |
| SKU | MM-03 |
| Barcode # | 2000000002392 |
| Brand | DIG Options |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.060m |
| Shipping Height | 0.300m |
| Shipping Length | 0.170m |
| Unit Of Measure | ctn |
| Assembled Length | 0.175m |
| Assembled Height | 0.065m |
| Assembled Width | 0.060m |
