7" HD Monitor & Caravan CMOS Reverse Camera Kit HD Safety Visibility HD Kit KIT-CAM10-M
Item Number: KIT-CAM10-M
Sold Out
DIG Options have taken the guess work out of adding a second caravan to your car monitor. The kit will plug into an RCA or 4-Pin Aviation-style Video Input.
Have Questions? Contact Us Here
CMOS Caravan Square Heavy Duty Camera and Cable Kit - Premium CCD 700TVL Kit also available

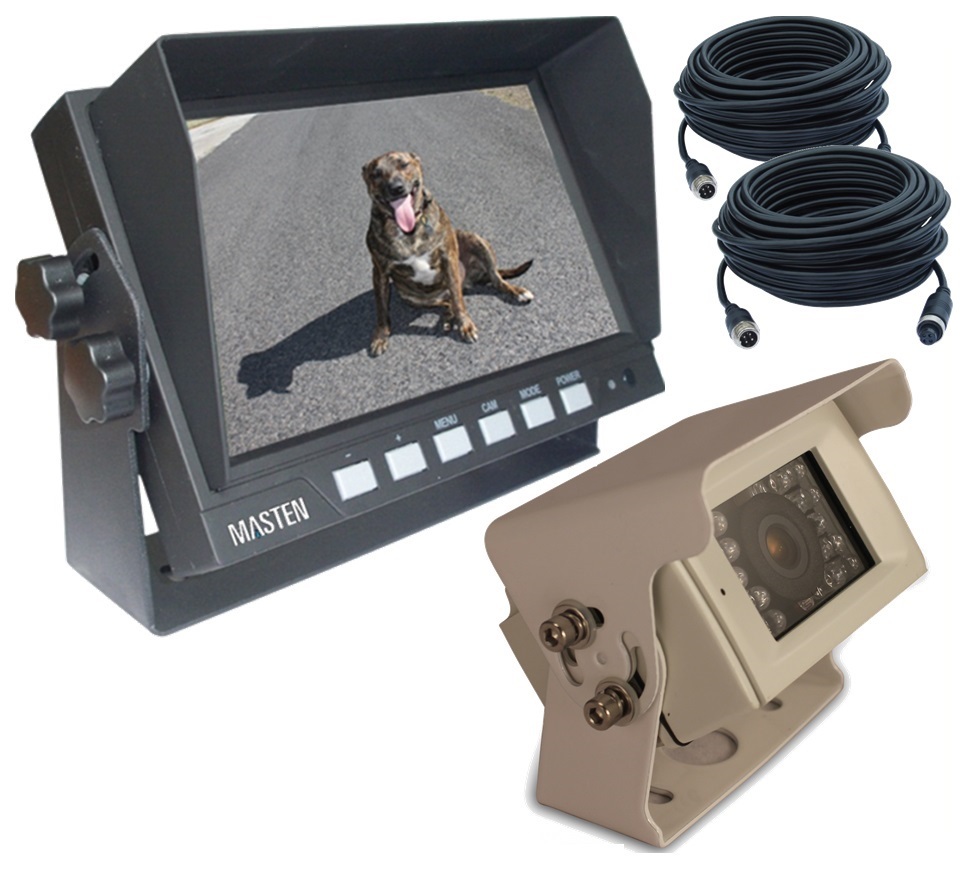

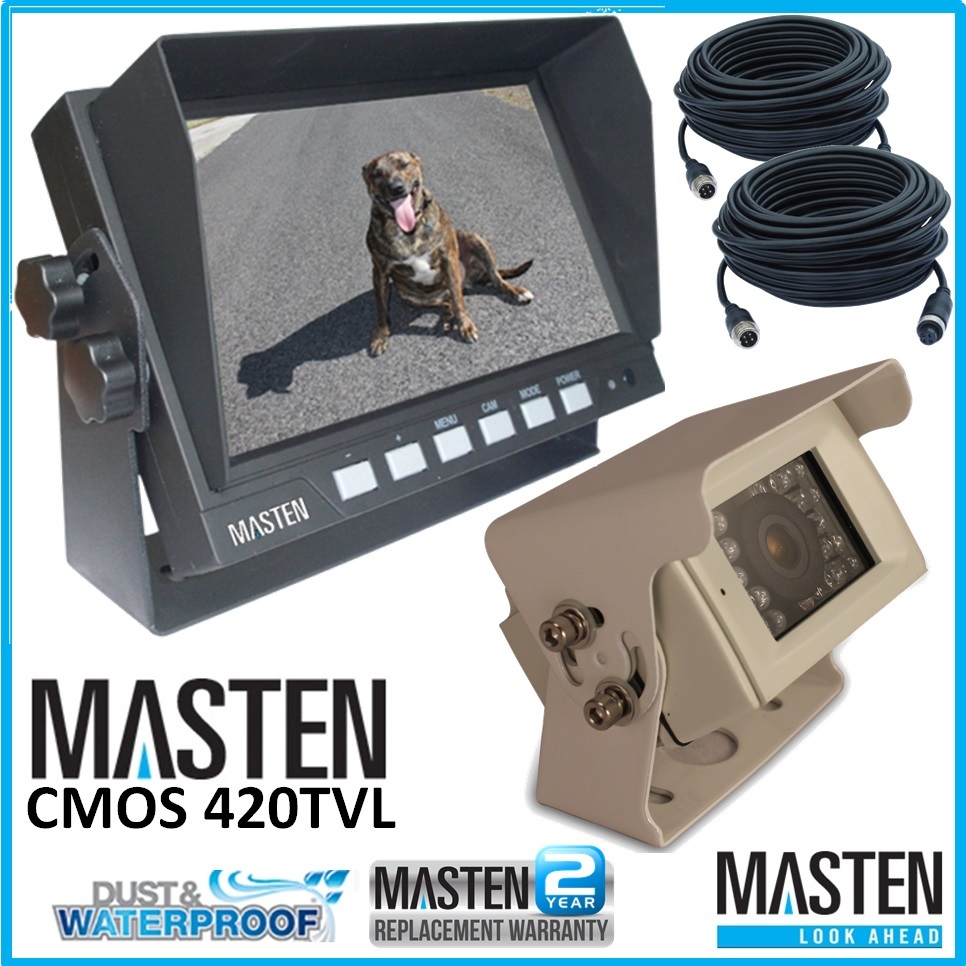

Kit includes Masten 7" Monitor and CMOS Heavy Duty Camera, 7.5m & 15m Cables
Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2 year Melbourne-based warranty.
Product Description
Overview
Heavy Duty CMOS Caravan Heavy Duty Reversing Camera Kit
Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty.
Included in this kit:
- Masten Premium Heavy Duty Camera with Masten CMOS 420TVL HD Image Sensors (Sony 700TVL also available)
- 7.5m and 15m 4-Pin Shielded Camera Extension Cable
- Masten Premium 7" HD LCD Full Colour Monitor

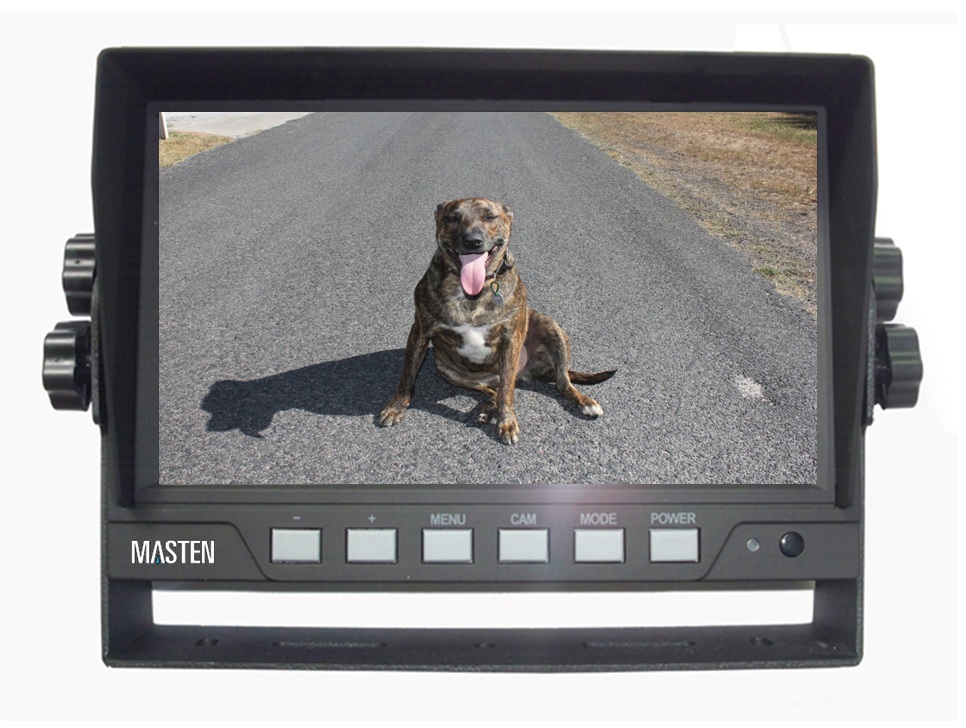

Masten Premium 7â HD LCD Full Colour Monitor
- 7â High-Quality LCD LED Colour Monitor with Highl Resolution for maximum visibility
- 2 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection

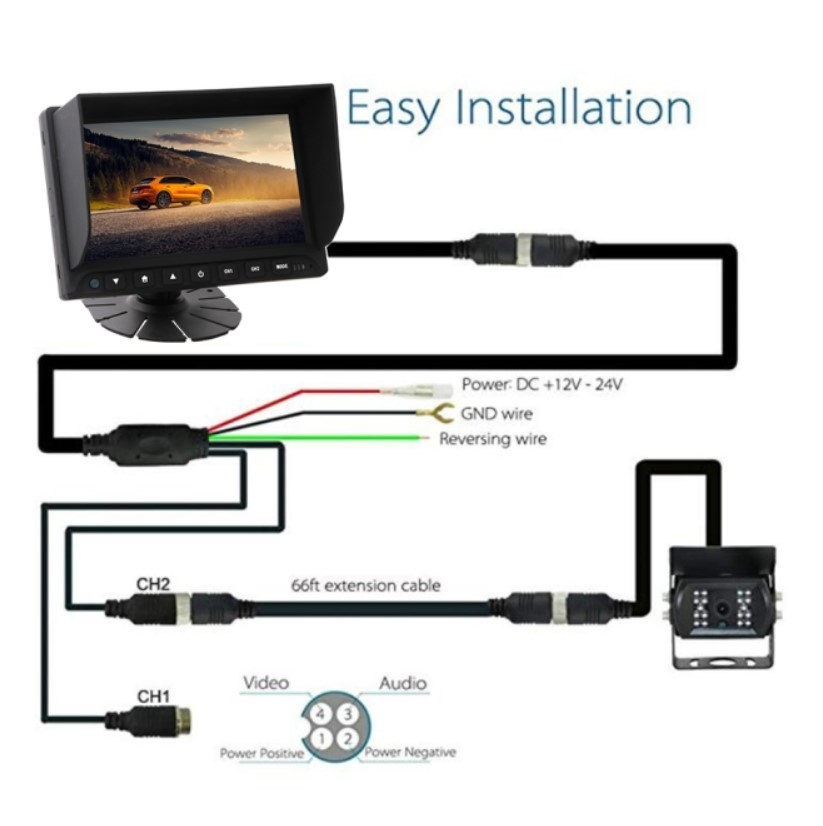

- Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
- Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
- Convenient Day/Night Mode Switch
- Adjustable trigger camera view (0-4 seconds) for each camera
- Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
- Compatible with PAL and NTSC
- Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
- Masten Steel Pro Fit Universal Mounting System for a secure fit that wonât budge
- Multi-language On-Screen Display
- Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters

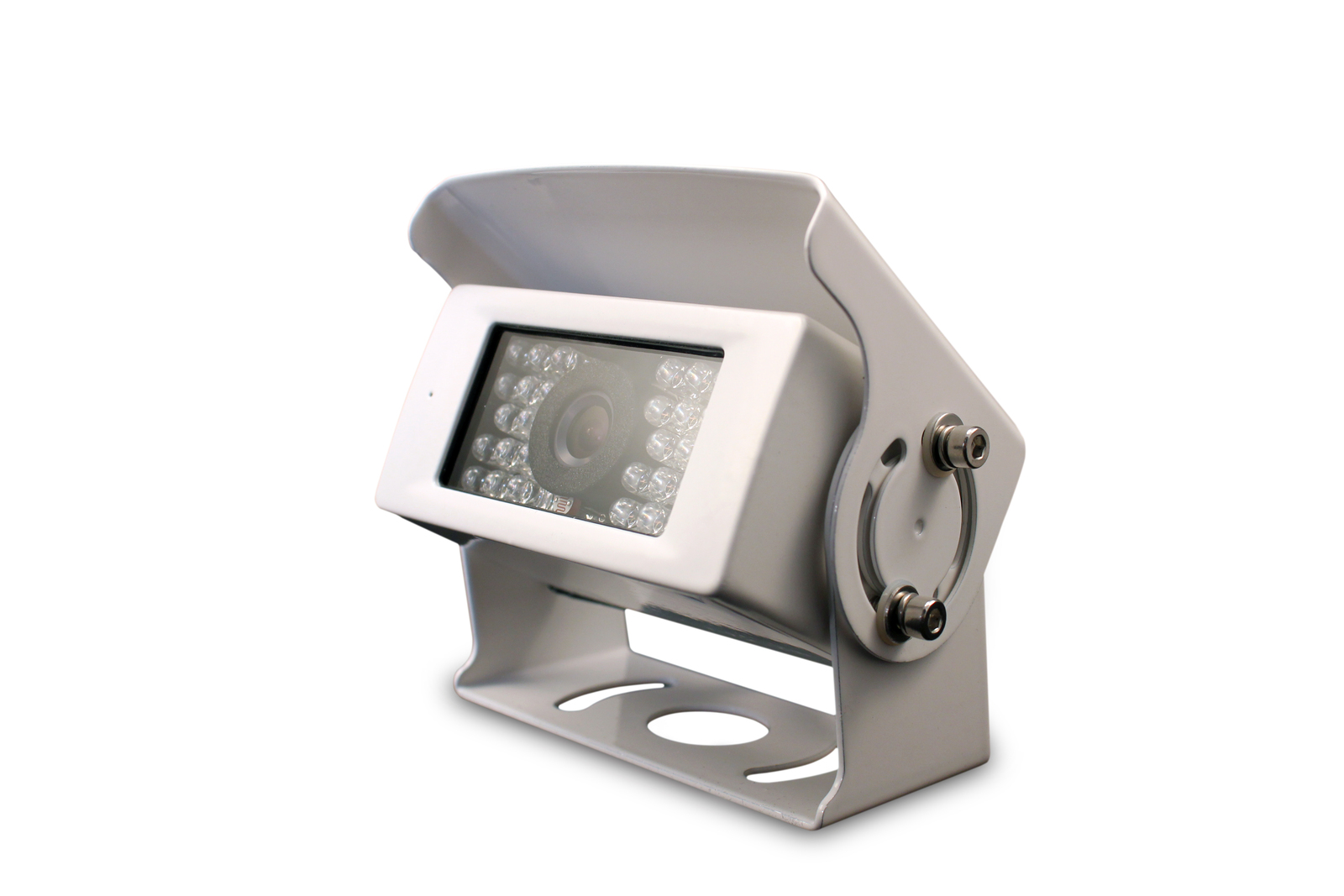

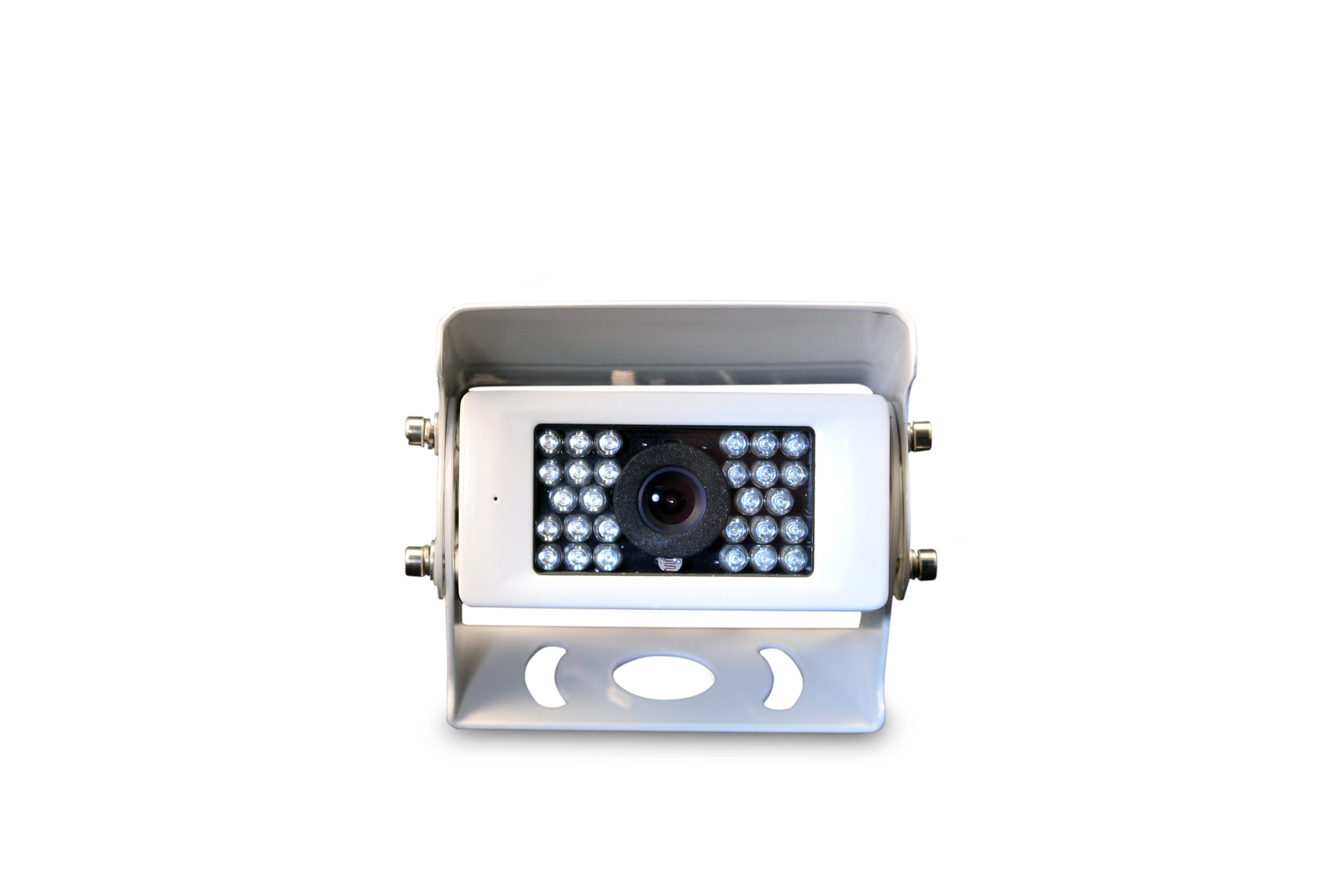

Camera Features
- World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
- Stylish Patented Design
- PixelPerfect® High-Grade image sensors feature Masten CMOS 420TVL for clear viewing day and night
- (Sony® 1/4 CCD Sensor with 700 TV Lines also available).
- Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
- Safer driving at night with a long 15m night vision viewing distance supported by 18 infrared LED lights
- Wide working temperature of Working temperature: -20°C~70°C.
- Unique IR-CUT effectively avoids colour aberration in daylight
- Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
- Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more
Unbeatable Melbourne-Based 2-Year Warranty!

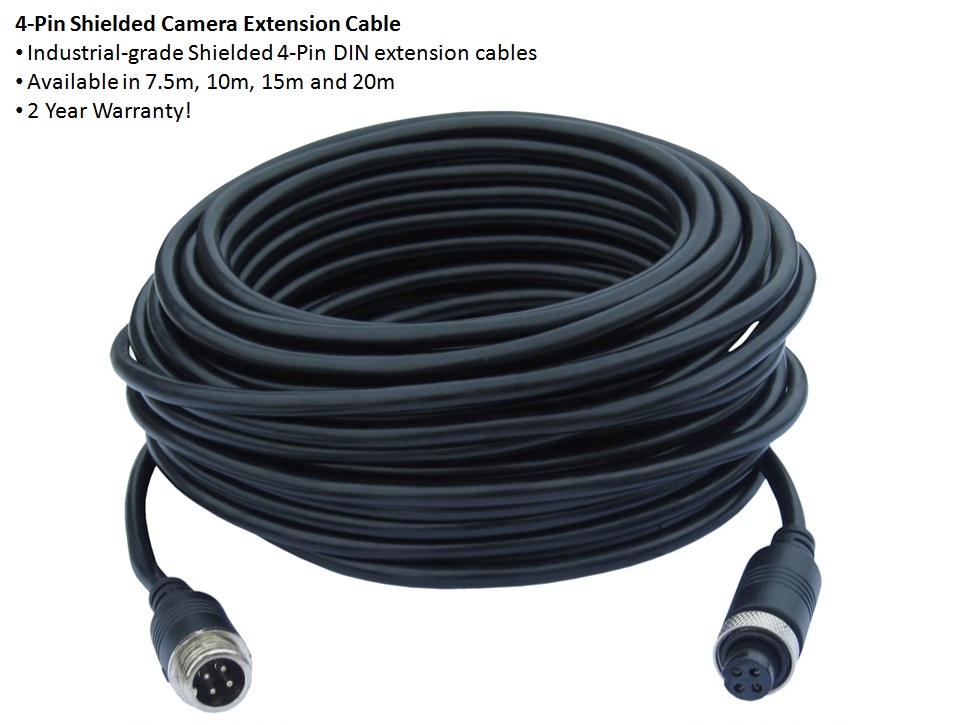

Cable Features
Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
| Camera Specifications (Sony CCD Camera also available from Dig Options) | ||
| Critical Specifications | ||
| Description: | Premium CMOS Heavy Duty Camera - Included in this kit | Premium CCD Heavy Duty Camera (optional) |
| Image Device: | CMOS | 1/4 SONY CCD |
| Resolution: | 420TV lines | 700TV lines |
| Lens: | 2.5mm | 2.5mm |
| Lens Angle: | 120 Degrees | 120 Degrees |
| Infrared LED light: | 18 LEDs | 18 LEDs |
| IR Distance: | 15m | 15m |
| Waterproof Rating: | IP69K | IP69K |
| Audio Microphone: | Yes | Yes |
| Technical Specifications | ||
| TV System: | PAL/ NTSC | PAL/ NTSC |
| Manual Mirror Image Switch | Yes | Yes |
| Effective Pixels: | 512 x 582 pixels / 512 x 492 pixels | 512 x 582 pixels / 512 x 492 pixels |
| Sensing Area: | 3.6mm x 2.7mm | 3.6mm x 2.7mm |
| Scanning System: | 2:1 Interlace | 2:1 Interlace |
| Sync. System: | Internal | Internal |
| Horizontal Sync. Frequency: | 15.625 KHz / 15.734KHz | 15.625 KHz / 15.734KHz |
| Vertical Sync. Frequency: | 50Hz / 60Hz | 50Hz / 60Hz |
| Minimum Illumination: | 0Lux (Infrared lamps on) | |
| 0 .1Lux(day) / F1.2 | 0Lux (Infrared lamps on) | |
| 0 .1Lux(day) / F1.2 | ||
| Video Output: | 1.0vp-p, 75Ohm | 1.0vp-p, 75Ohm |
| Gamma Consumption: | 0.45 | 0.45 |
| AGC: | Auto | Auto |
| S/N Ratio: | Better than 48dB | Better than 48dB |
| White Balance: | Auto | Auto |
| Electronic Shutter: | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds |
| BLC: | Auto | Auto |
| Shell material: | Aluminum alloy | Aluminum alloy |
| Current Consumption: | Max. 180mA | Max. 180mA |
| Power Supply: | DC12V | DC12V |
| Operating Temperature: | -20°C~70°C MAX | -20°C~70°C MAX |
| Storage Temperature: | -40°C~80° MAX | -40°C~80° MAX |
| Dimensions : | 80(L) ×74 (w) ×71 (H) mm | 80(L) ×74 (w) ×71 (H) mm |
General Monitor Specifications
| Display/Monitor Size: | 7 Inch |
| Monitor Panel Type: | Digital LCD LED Panel |
| Display Colour: | Full |
| Waterproof Rating (with Certification): | NA |
| Camera Inputs: | 2 |
| Quad Camera View: | NA |
| TV System: | NTSC/PAL |
| Resolution: | 800 X 3 X（RGB）X 480 Pixels |
| Aspect ratio: | 16:09 |
| Viewing angle: | U: 50°/ D:60°, R/L:70° |
| Brightness: | 400cd/㎡. |
| Contrast: | 500:01:00 |
| Lattice Distance: | 0.192(H) x 0.1805(V) |
| Monitor Housing Material: | Plastic |
| Monitor Bracket Type: | Dash Mount |
| Monitor Bracket Material: | Iron |
| Camera Connection Type: | Industrial-Grade 4-Pin Connectors |
| Automatic Camera Display: | Yes - 2 Cameras via Trigger Line from Power Source |
| Built-in Speaker: | Yes - Requires connected camera to have microphone |
| Bilingual Menu System: | Yes - English, Dutch, French, Portuguese, Spanish, Russian and German |
| Day/Night Mode Switch: | Yes - Manually |
| Mirror/Natural Camera View: | Yes - Switchable for each camera |
| Remote Control: | Yes |
| Working voltage: | 12-32V |
| DC Power Overload Protection: | Yes |
| Working Current: | 800MA (with 2 came |
| Operating Temperature | -10℃~+65℃ |
| Storage Temperature | -30℃~+80℃ |
| Operating humidity: | 10% |
| Product Net Weight: | 1KG |
| Product Dimensions: | 182mm*99mm*124mm |
| SKU | KIT-CAM10-M |
| Barcode # | 9357423016325 |
| Brand | Masten |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.265m |
| Shipping Height | 0.070m |
| Shipping Length | 0.198m |
