7" HD Monitor & Ute/Canopy CCD 700TVL Camera Kit Night Vision 7.5m Cable KIT-CAM4-M
Item Number: KIT-CAM4-M
Sold Out
DIG Options have take the guess work out of adding a heavy duty camera to your ute or canopy.
Have Questions? Contact Us Here

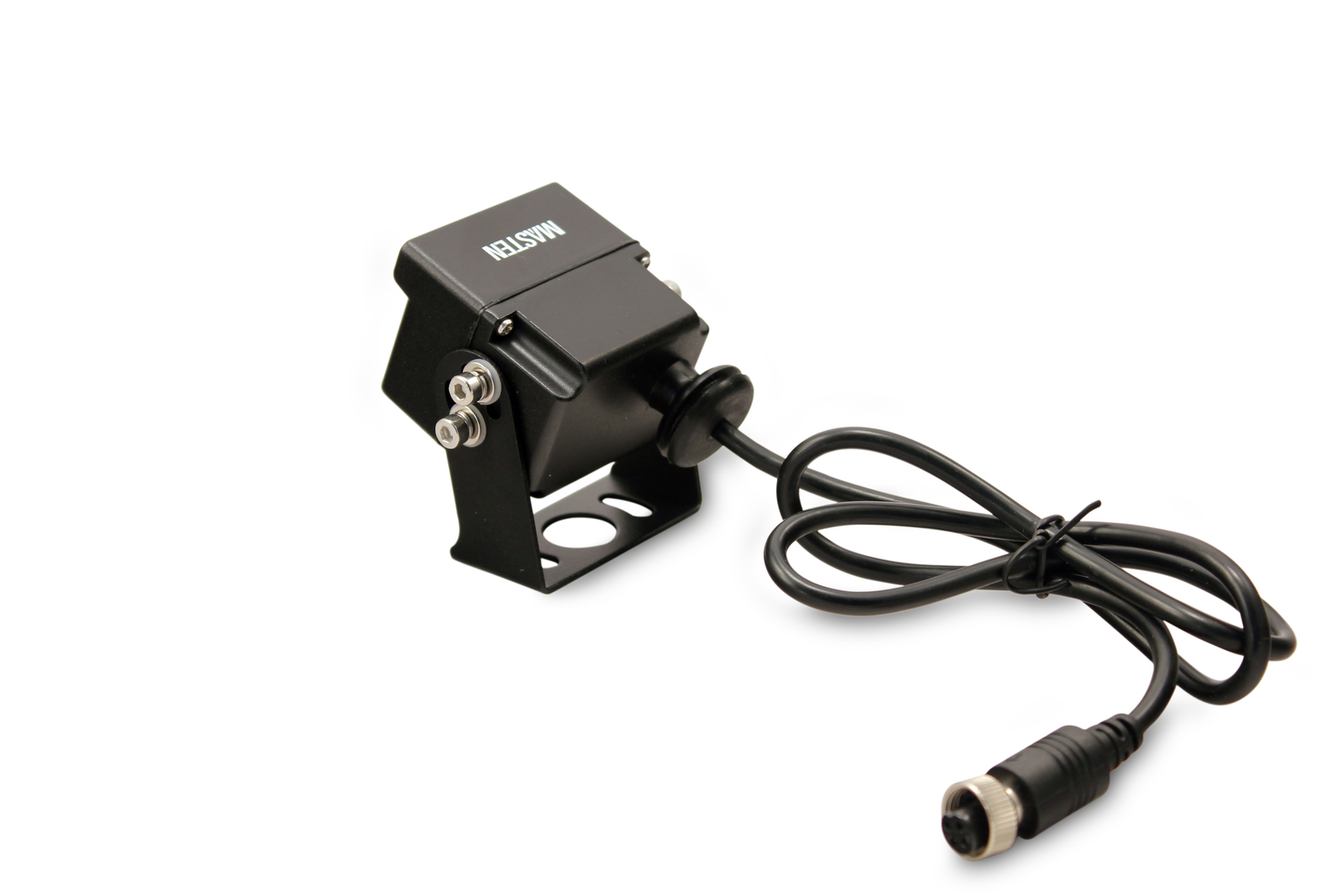

Specially designed CCD 700TVL Heavy Duty camera for Utes and Canopies

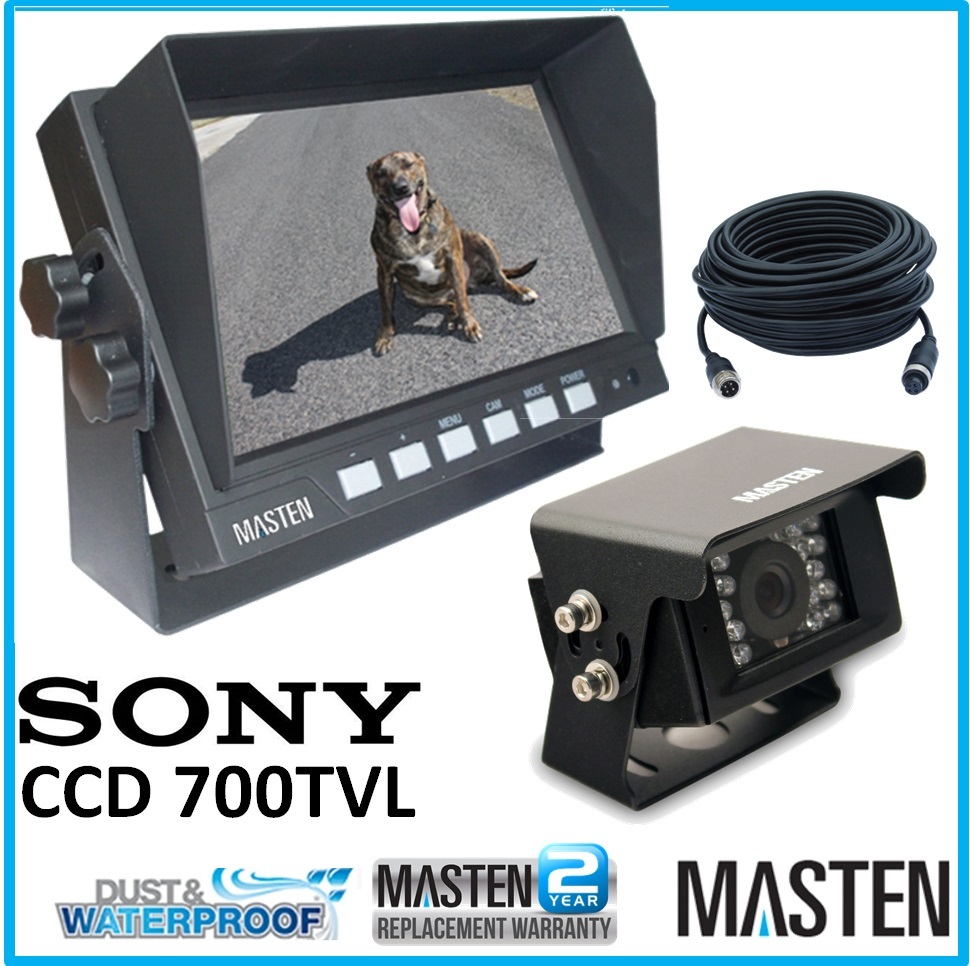

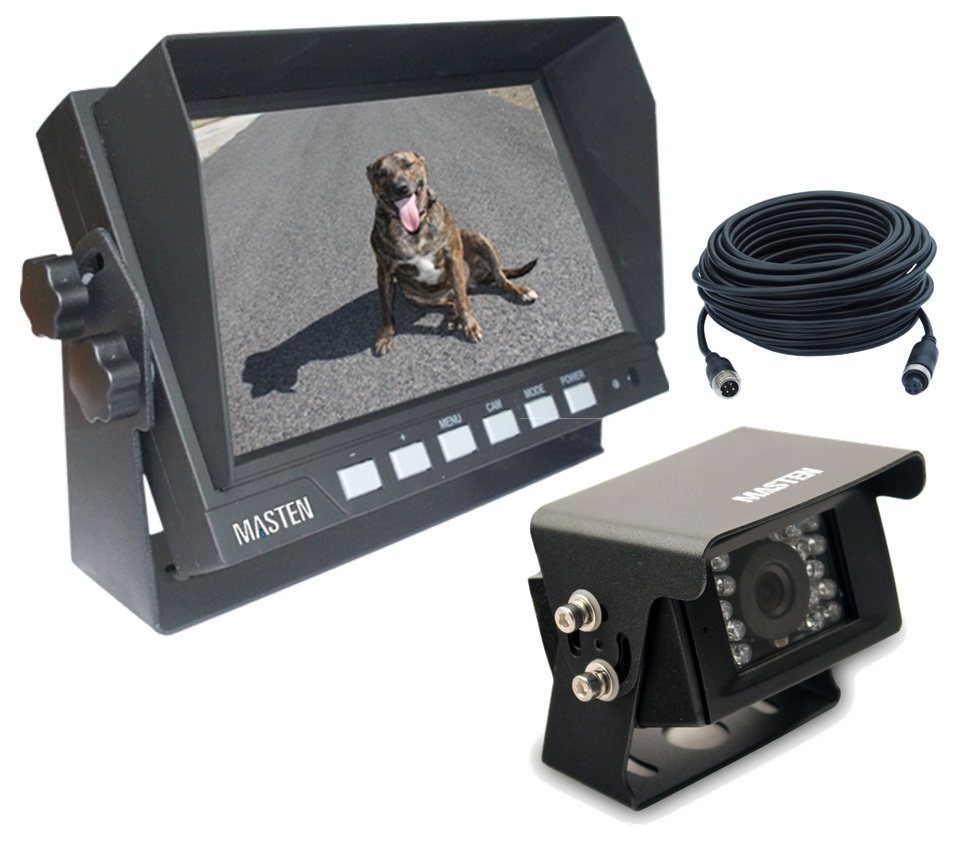

Kit includes Masten 7" Monitor and Premium CCD Ute/Canopy Camera, 7.5m Cable
Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2 year Melbourne-based warranty.
Product Description
Overview
Ute/Canopy CCD Heavy Duty Reversing Camera Kit
Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty.
Included in this kit:
- Masten Premium Ute / Canopy Camera with HD Masten CCD Sony 700TVL
- 7.5m 4-Pin Shielded Camera Extension Cable

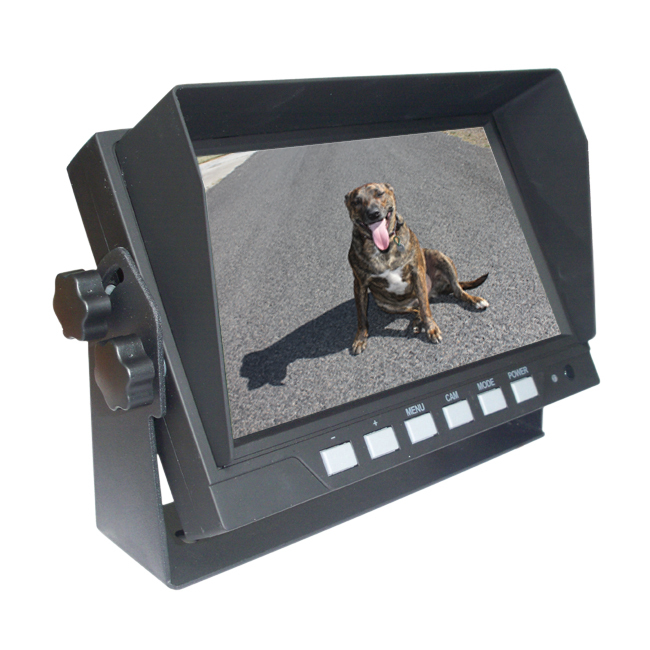

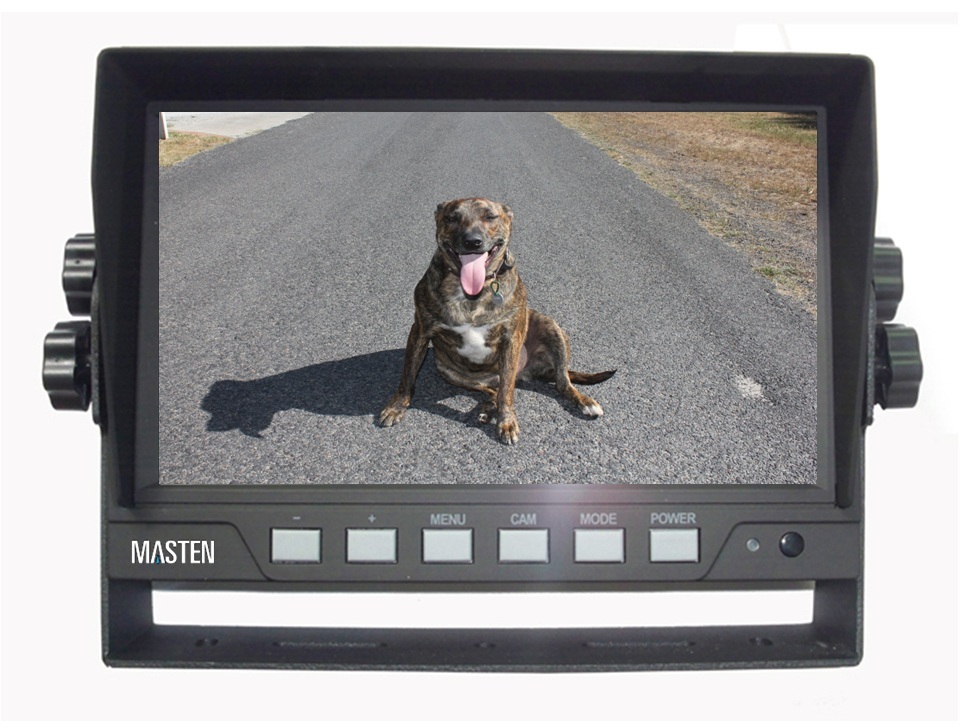

- Masten Premium 7" HD LCD Full Colour Monitor
Masten Premium 7â HD LCD Full Colour Monitor
- 7â High-Quality LCD LED Colour Monitor with Highl Resolution for maximum visibility
- 2 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection

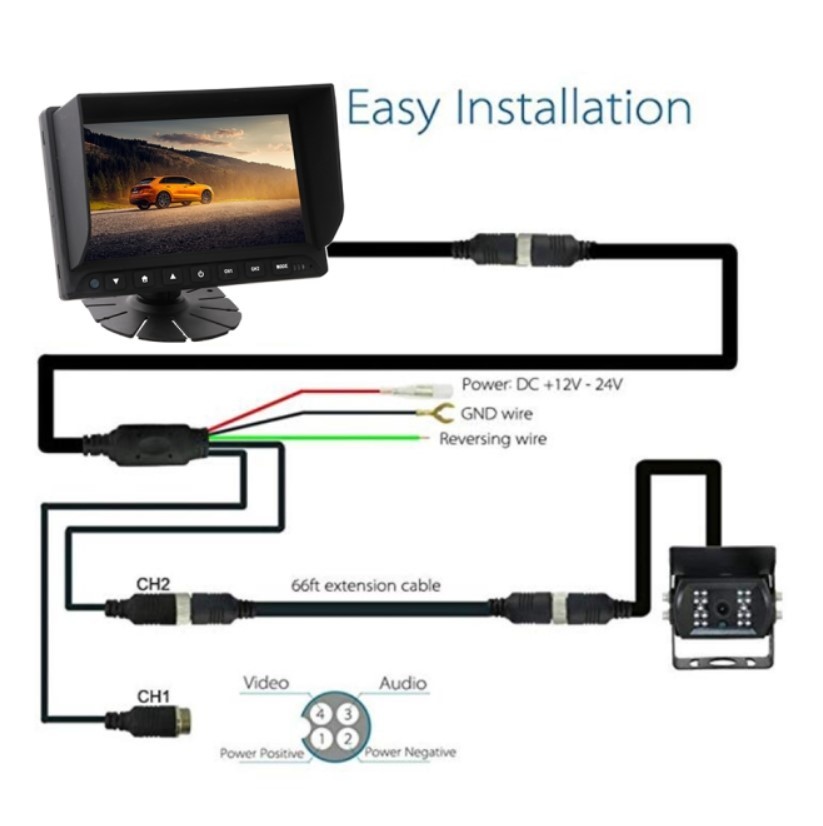

- Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
- Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
- Convenient Day/Night Mode Switch
- Adjustable trigger camera view (0-4 seconds) for each camera
- Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
- Compatible with PAL and NTSC
- Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
- Masten Steel Pro Fit Universal Mounting System for a secure fit that wonât budge
- Multi-language On-Screen Display
- Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters

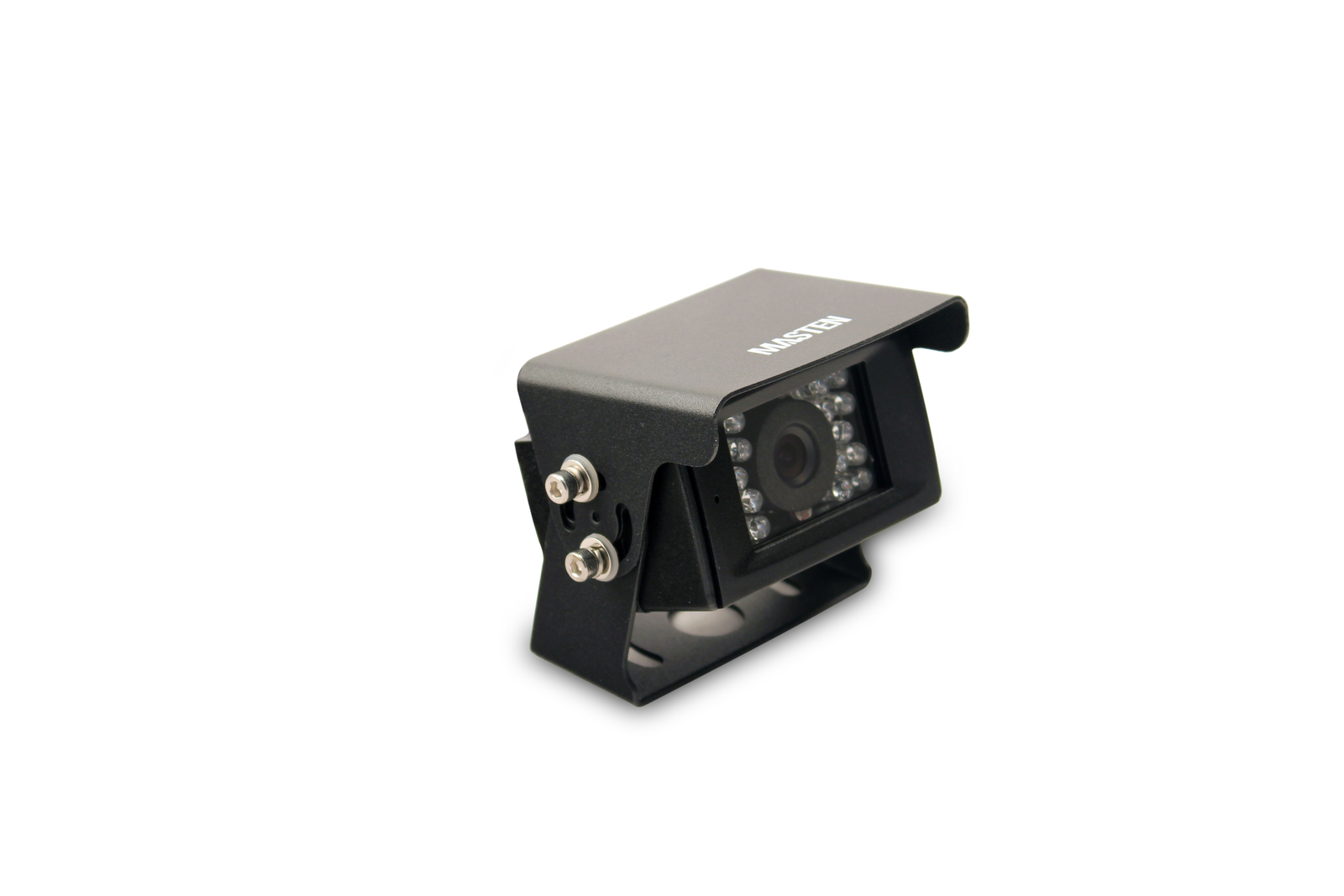

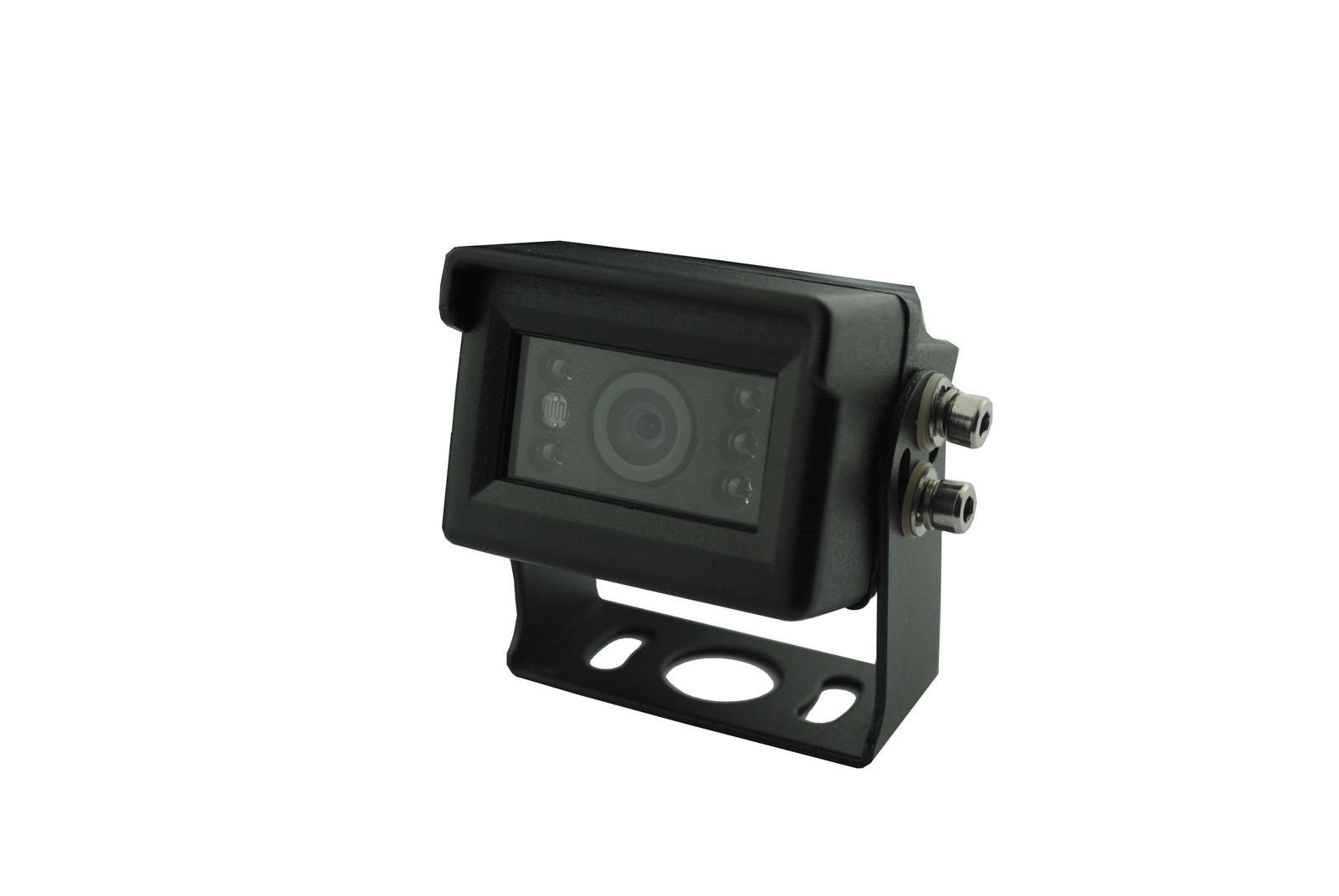

Camera Features
- World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
- Stylish Patented Design
- PixelPerfect® High-Grade image sensors feature Masten CCD 700TVL Resolution HD CCD for clear viewing day and night
- Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
- Safer driving at night with a long 15m night vision viewing distance supported by 18 infrared LED lights
- Wide working temperature of Working temperature: -20°C~70°C.
- Unique IR-CUT effectively avoids color aberration in daylight
- Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
- Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more
Unbeatable Melbourne-Based 2-Year Warranty!
Cable Features
Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
| General Camera Specifications | ||
| Description: | Optional | Optional |
| Image Device: | CMOS | 1/4 SONY CCD |
| Resolution: | 420TV lines | 700TV lines |
| Lens: | 2.5mm | 2.5mm |
| Lens Angle: | 120 Degrees | 120 Degrees |
| Infrared LED light: | Depends on model | Depends on model |
| IR Distance: | Depends on model | Depends on model |
| Waterproof Rating: | IP69K | IP69K |
| Audio Microphone: | Depends on model | Depends on model |
| Technical Specifications | ||
| TV System: | PAL/ NTSC | PAL/ NTSC |
| Manual Mirror Image Switch | ||
| Effective Pixels: | 512 x 582 pixels / 512 x 492 pixels | 512 x 582 pixels / 512 x 492 pixels |
| Sensing Area: | 3.6mm x 2.7mm | 3.6mm x 2.7mm |
| Scanning System: | 2:1 Interlace | 2:1 Interlace |
| Sync. System: | Internal | Internal |
| Horizontal Sync. Frequency: | 15.625 KHz / 15.734KHz | 15.625 KHz / 15.734KHz |
| Vertical Sync. Frequency: | 50Hz / 60Hz | 50Hz / 60Hz |
| Minimum Illumination: | 0Lux (Infrared lamps on) | 0Lux (Infrared lamps on) |
| 0 .1Lux(day) / F1.2 | 0 .1Lux(day) / F1.2 | |
| Video Output: | 1.0vp-p, 75Ohm | 1.0vp-p, 75Ohm |
| Gamma Consumption: | 0.45 | 0.45 |
| AGC: | Auto | Auto |
| S/N Ratio: | Better than 48dB | Better than 48dB |
| White Balance: | Auto | Auto |
| Electronic Shutter: | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds |
| BLC: | Auto | Auto |
| Shell material: | Aluminum alloy | Aluminum alloy |
| Current Consumption: | Max. 220mA | Max. 220mA |
| Power Supply: | DC12V | DC12V |
| Operating Temperature: | -20°C~70°C , RH95％ MAX | -20°C~70°C , RH95％ MAX |
| Storage Temperature: | -40°C~80°C，RH95％ MAX | -40°C~80°C，RH95％ MAX |
| Dimensions : | Depends on model | Depends on model |
General Monitor Specifications
| Display/Monitor Size: | 7 Inch |
| Monitor Panel Type: | Digital LCD LED Panel |
| Display Colour: | Full |
| Waterproof Rating (with Certification): | NA |
| Camera Inputs: | 2 |
| Quad Camera View: | NA |
| TV System: | NTSC/PAL |
| Resolution: | 800 X 3 X（RGB）X 480 Pixels |
| Aspect ratio: | 16:09 |
| Viewing angle: | U: 50°/ D:60°, R/L:70° |
| Brightness: | 400cd/㎡. |
| Contrast: | 500:01:00 |
| Lattice Distance: | 0.192(H) x 0.1805(V) |
| Monitor Housing Material: | Plastic |
| Monitor Bracket Type: | Dash Mount |
| Monitor Bracket Material: | Iron |
| Camera Connection Type: | Industrial-Grade 4-Pin Connectors |
| Automatic Camera Display: | Yes - 2 Cameras via Trigger Line from Power Source |
| Built-in Speaker: | Yes - Requires connected camera to have microphone |
| Bilingual Menu System: | Yes - English, Dutch, French, Portuguese, Spanish, Russian and German |
| Day/Night Mode Switch: | Yes - Manually |
| Mirror/Natural Camera View: | Yes - Switchable for each camera |
| Remote Control: | Yes |
| Working voltage: | 12-32V |
| DC Power Overload Protection: | Yes |
| Working Current: | 800MA (with 2 came |
| Operating Temperature | -10℃~+65℃ |
| Storage Temperature | -30℃~+80℃ |
| Operating humidity: | 10% |
| Product Net Weight: | 1KG |

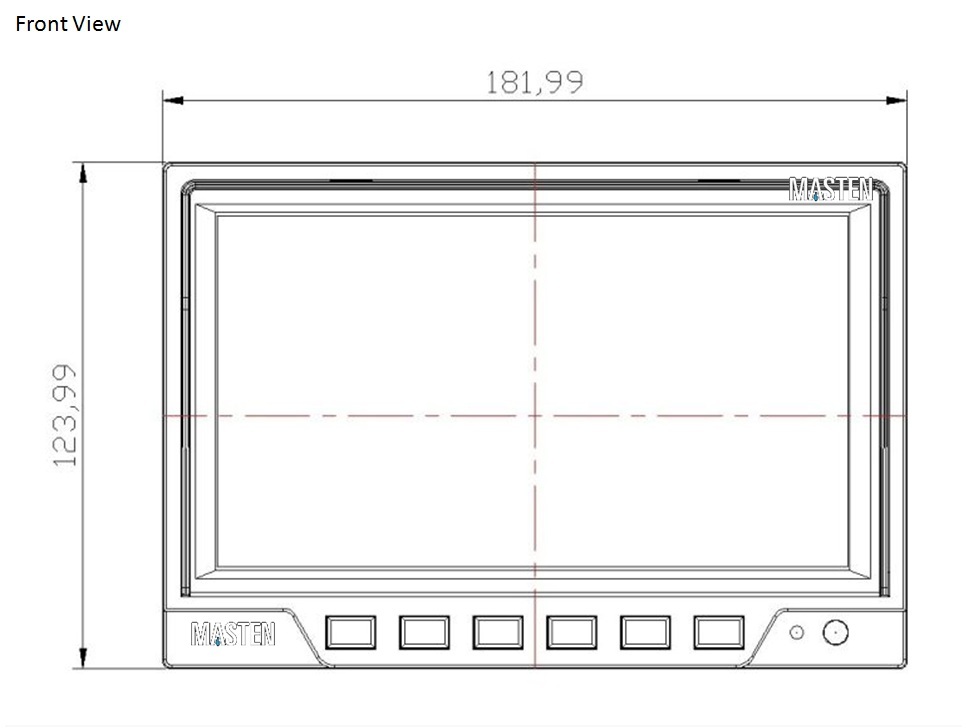

| Product Dimensions: | 182mm*99mm*124mm |
| SKU | KIT-CAM4-M |
| Barcode # | 729436059955 |
| Brand | Masten |
| Shipping Weight | 2.0000kg |
| Shipping Width | 0.265m |
| Shipping Height | 0.070m |
| Shipping Length | 0.198m |
Unbeatable Masten 2 Year Replacement Warranty
