7 inch TFT-LCD Car Display Screen Monitor Backup Rear View Camera 2 Inputs Full Colour RCM-71S
Item Number: RCM-71S
Sold Out
The Masten Lineup of High Definition Automotive Cameras - Unmatched Workmanship and Quality, backed by a Two Year Replacement Warranty - Suitable for Commercial, Private, Agricultural and Industrial Usage
Have Questions? Contact Us Here

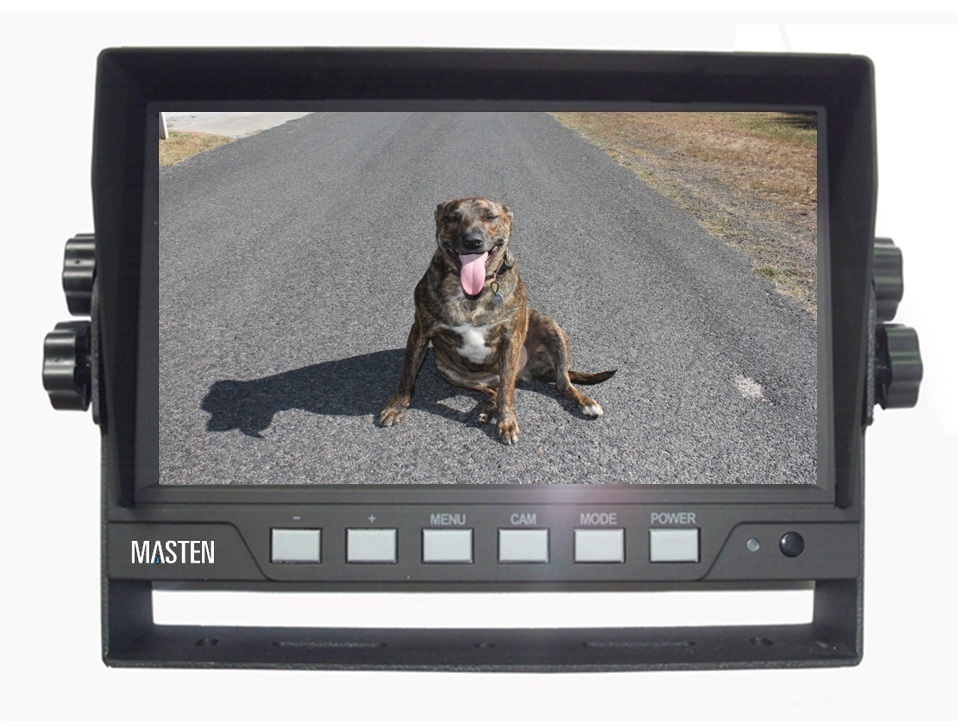

Masten Premium HD LCD Monitor with 2-Camera Inputs
- High-Quality LCD LED Colour Monitor with 800 x 480 Pixel Resolution for maximum visibility
- 2 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection

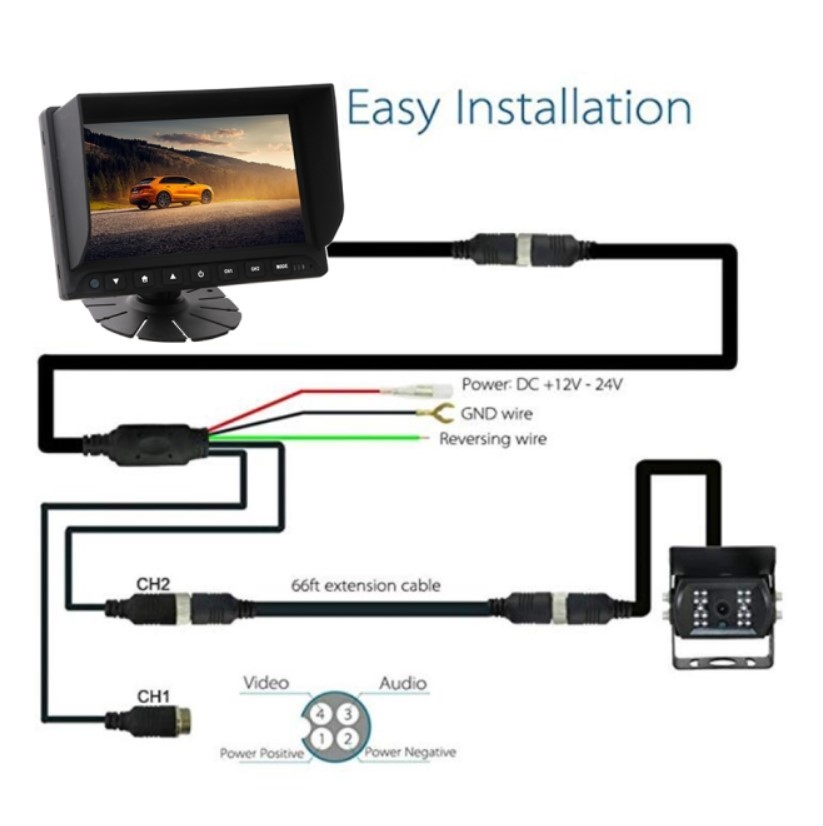

- Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
- Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
- Convenient Day/Night Mode Switch
- Adjustable trigger camera view (0-4 seconds) for each camera
- Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
- Compatible with PAL and NTSC
- Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
- Masten Steel Pro Fit Universal Mounting System for a secure fit that will not budge
- Multi-language On-Screen Display
- Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters
- Unbeatable Melbourne-Based 2-Year Warranty!
Optional Reverse Cameras If you're investing in a Masten Premium Monitor it's also recommended that you invest in a Masten Premium Camera for peace of mind. Masten cameras feature world-class design, waterproof rating and image quality, all this with a 2-Year Warranty (subject to specific models).
Optional Cables For reliability and value you can't go past the well-built range of cables from DIG Options.
Product Specifications
| Display/Monitor Size: | 7 Inch |
| Monitor Panel Type: | Digital LCD LED Panel |
| Display Colour: | Full |
| Waterproof Rating (with Certification): | NA |
| Camera Inputs: | 2 |
| Quad Camera View: | NA |
| TV System: | NTSC/PAL |
| Resolution: | 800 X 3 X（RGB）X 480 Pixels |
| Aspect ratio: | 16:09 |
| Viewing angle: | U: 50°/ D:60°, R/L:70° |
| Brightness: | 400cd/㎡. |
| Contrast: | 500:01:00 |
| Lattice Distance: | 0.192(H) x 0.1805(V) |
| Monitor Housing Material: | Plastic |

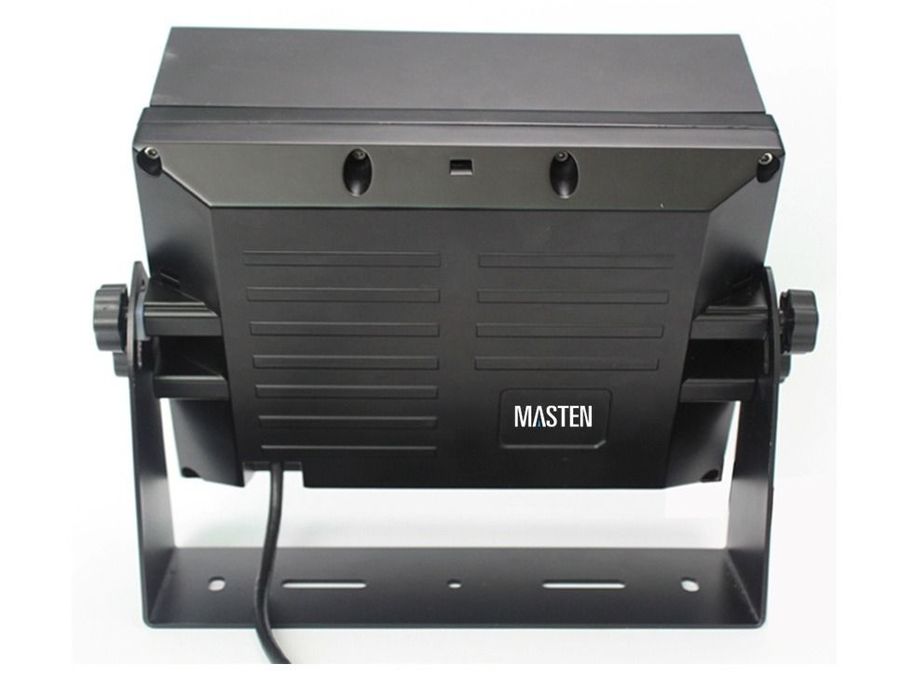

| Monitor Bracket Type: | Dash Mount |
| Monitor Bracket Material: | Iron |

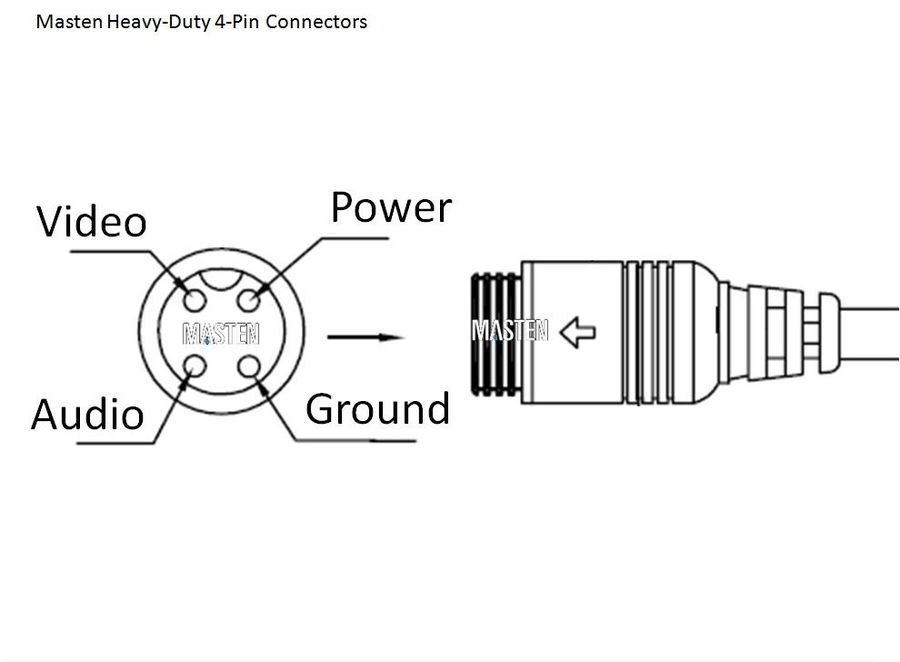

| Camera Connection Type: | Industrial-Grade 4-Pin Connectors |
| Automatic Camera Display: | Yes - 2 Cameras via Trigger Line from Power Source |
| Built-in Speaker: | Yes - Requires connected camera to have microphone |
| Bilingual Menu System: | Yes - English, Dutch, French, Portuguese, Spanish, Russian and German |
| Day/Night Mode Switch: | Yes - Manually |
| Mirror/Natural Camera View: | Yes - Switchable for each camera |
| Remote Control: | Yes |
| Working voltage: | 12-32V |
| DC Power Overload Protection: | Yes |
| Working Current: | 800MA (with 2 came |
| Operating Temperature | -10℃~+65℃ |
| Storage Temperature | -30℃~+80℃ |
| Operating humidity: | 10% |
| Product Net Weight: | 1KG |

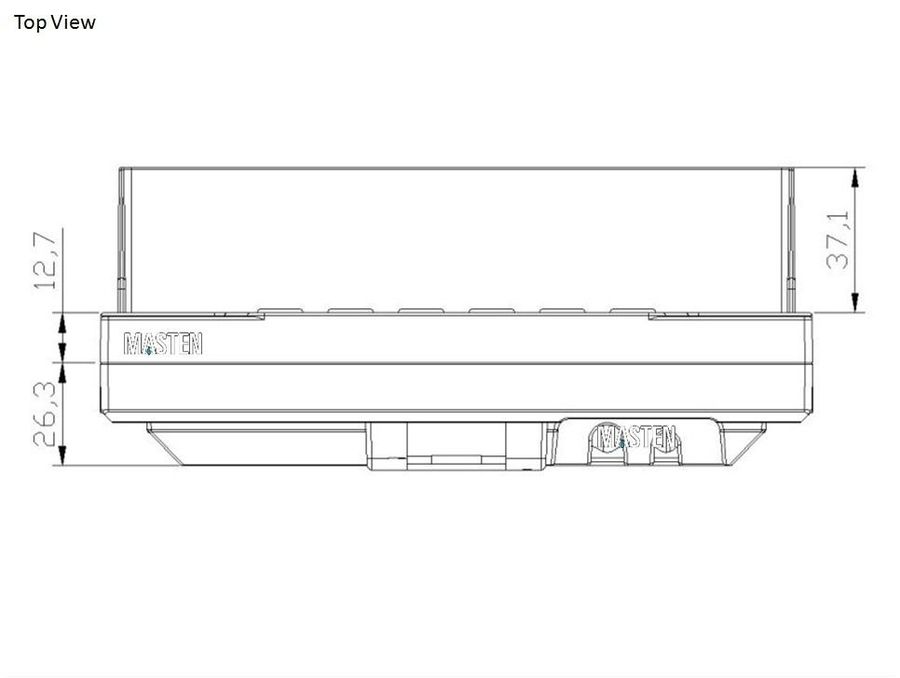

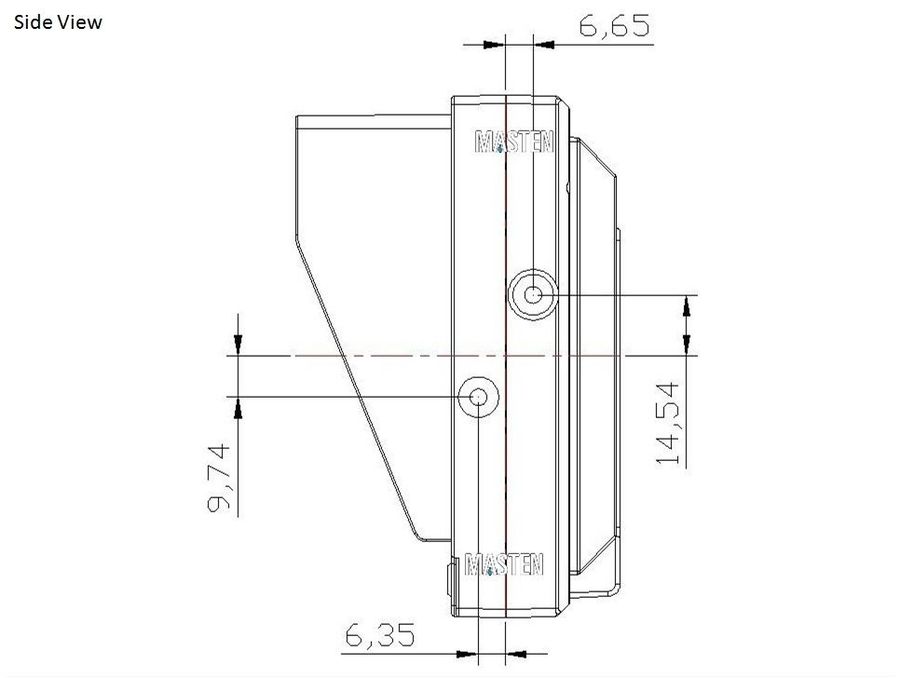

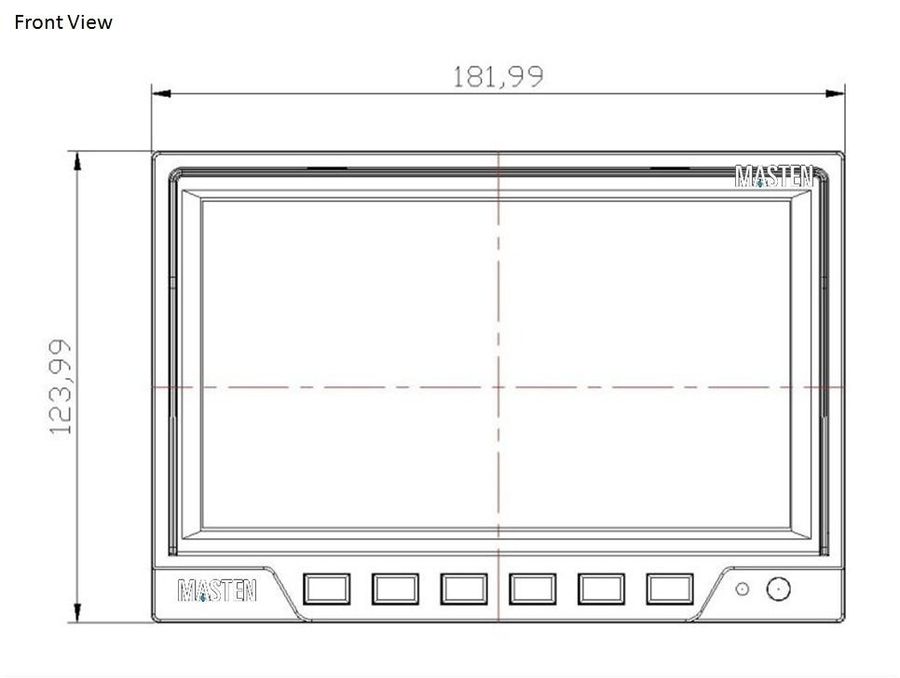

| Product Dimensions: | 182 x 124 x 27mm |
| Product Dimensions (with bracket): | 210 x 143 x 45mm |
| SKU | RCM-71S |
| Barcode # | 729436061149 |
| Brand | Masten |
| Shipping Weight | 1.1000kg |
| Shipping Width | 0.265m |
| Shipping Height | 0.198m |
| Shipping Length | 0.070m |
| Assembled Width | 0.265m |
