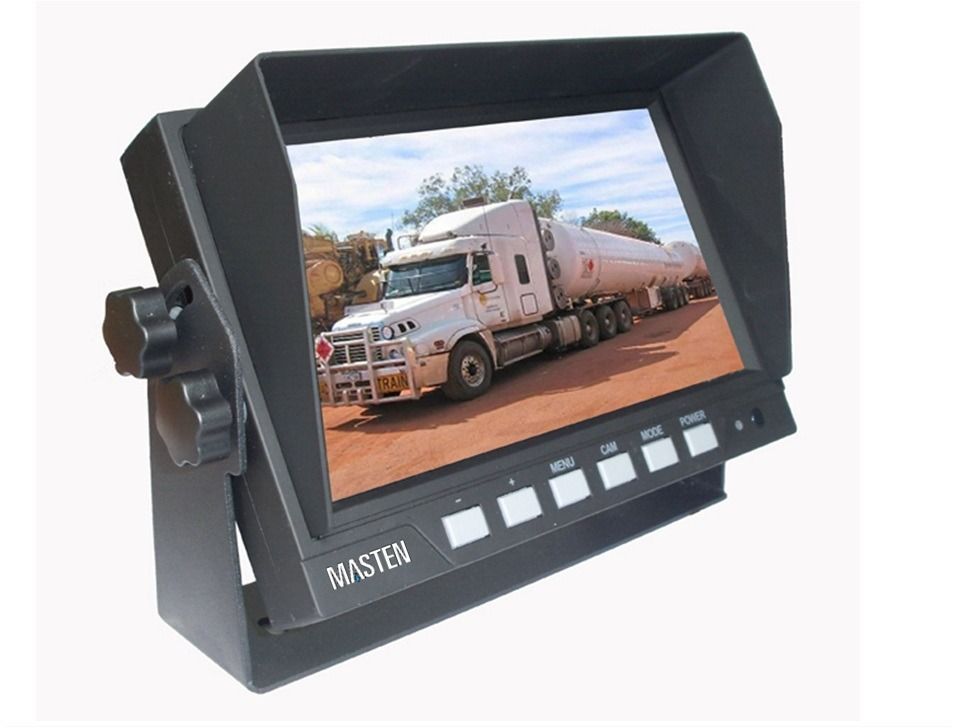

High-Quality LCD LED Colour Monitor with 800 x 480 Pixel Resolution for maximum visibility

  • Waterproof and Dustproof Design with IP69K Waterproof Certification for any application
  • 4 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection

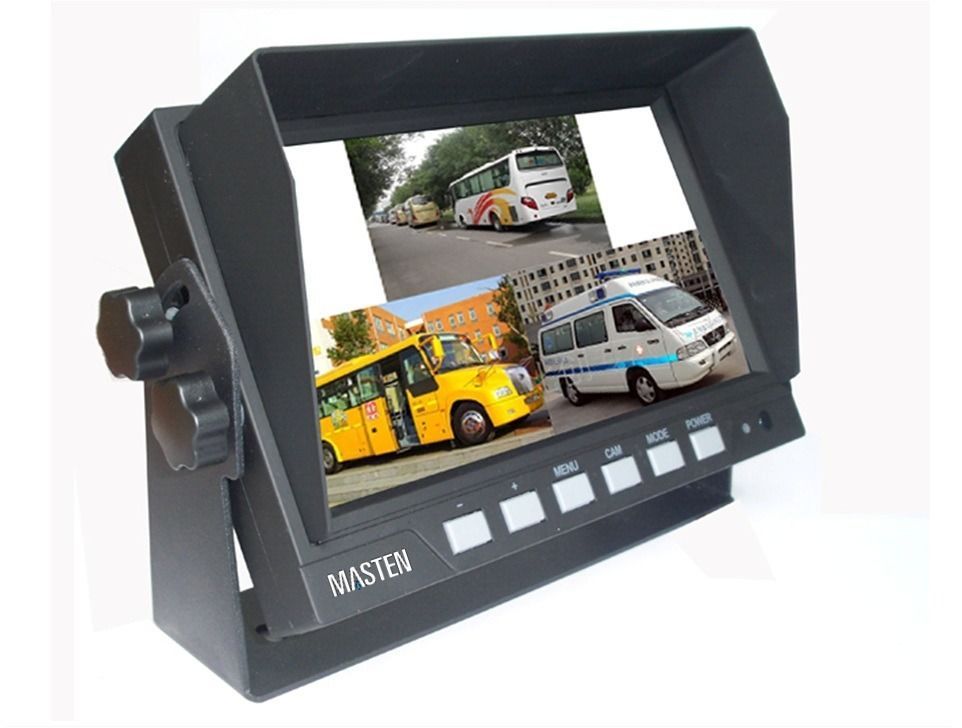

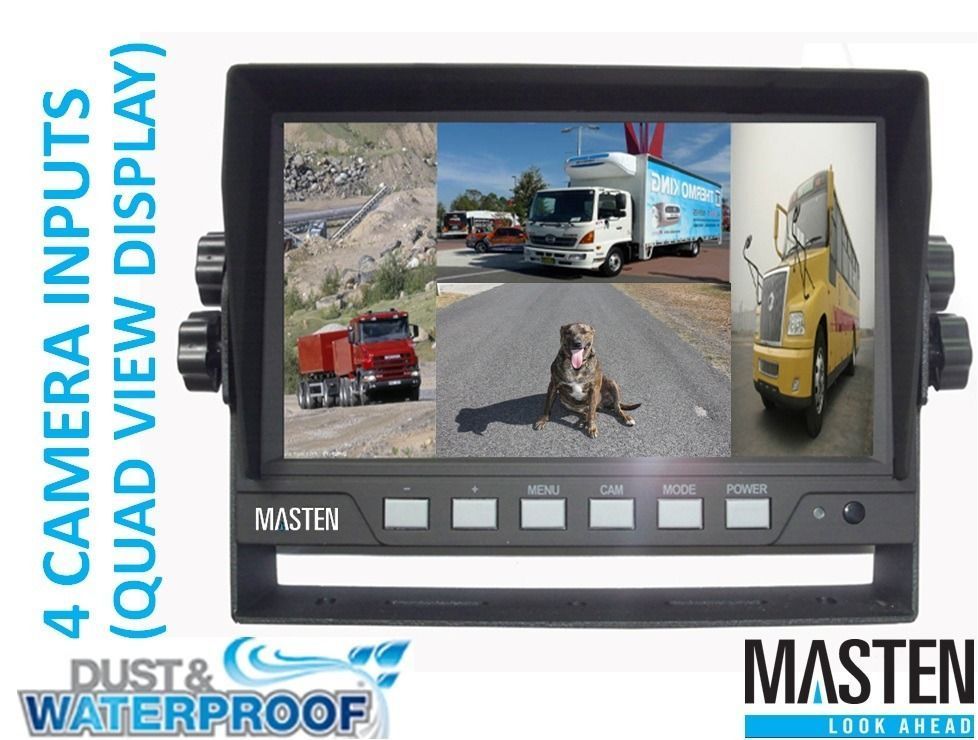

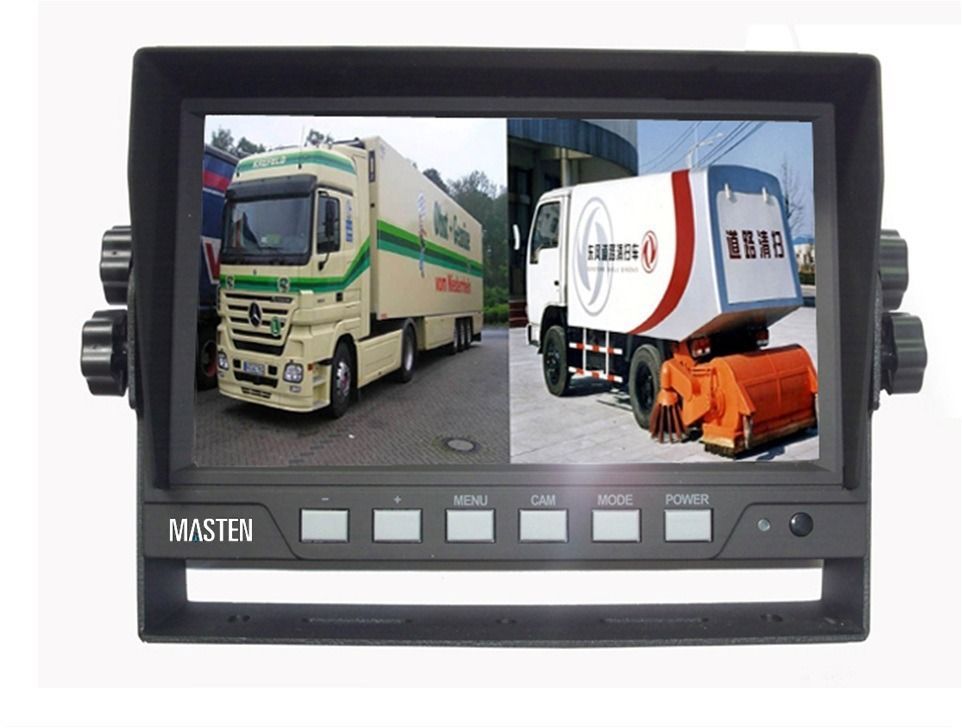

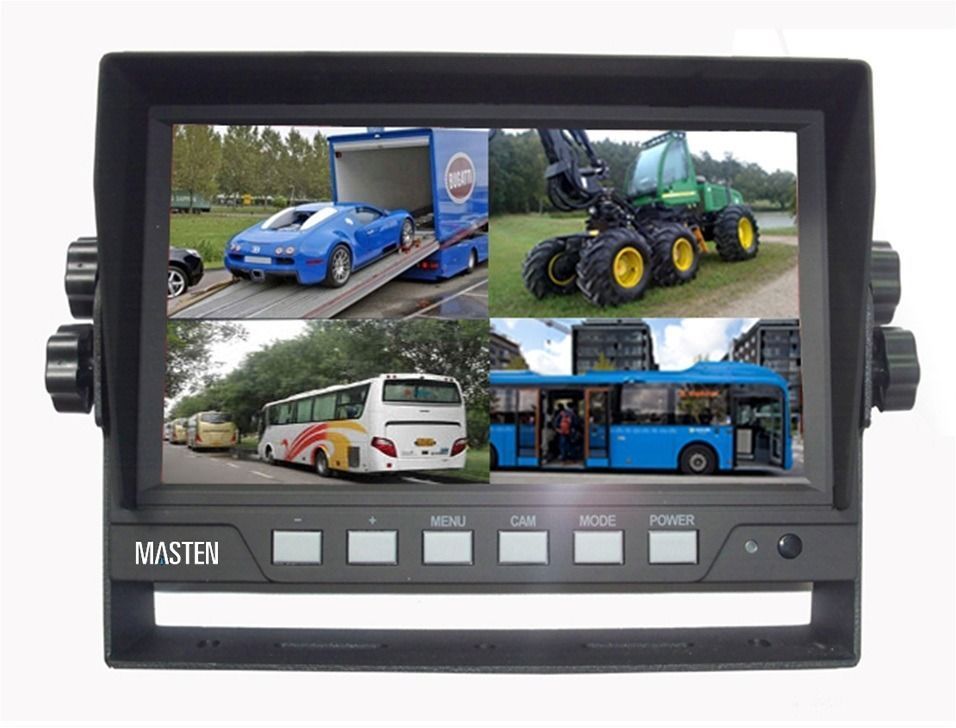

  • QUAD Camera Display Module allows you to view 4 cameras simultaneously for greater viewing safety. The monitor can also be switch to view 1, 2 or 3 cameras at one time.

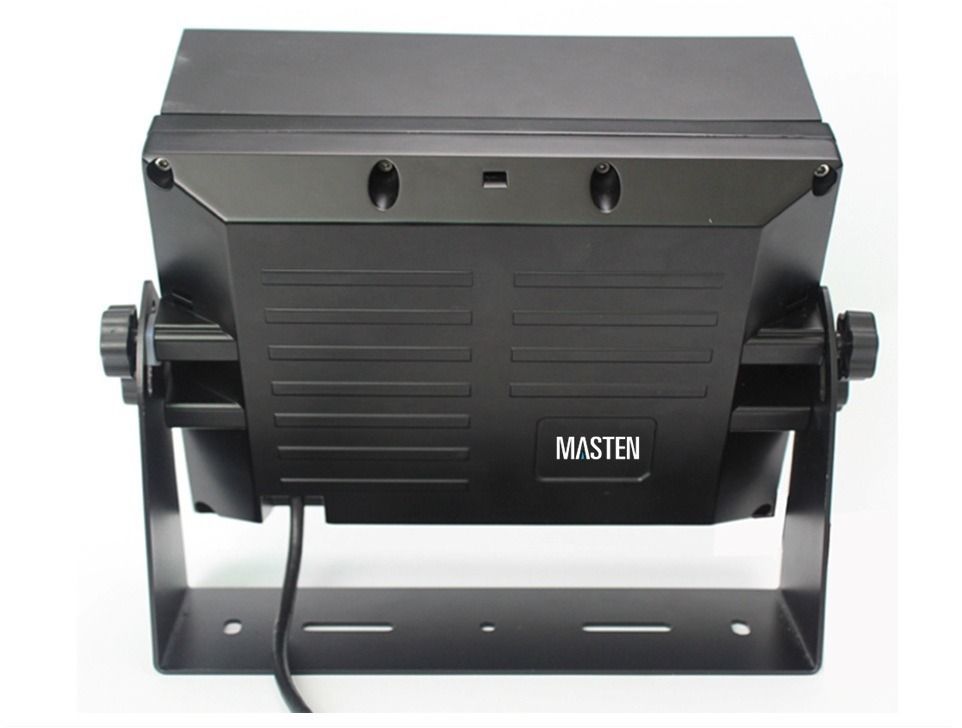

  • Solid Aluminum Alloy Monitor Housing, perfect for more rugged applications
  • 4 Camera Video/Audio Heavy-Duty 4-Pin Inputs for a secure connection

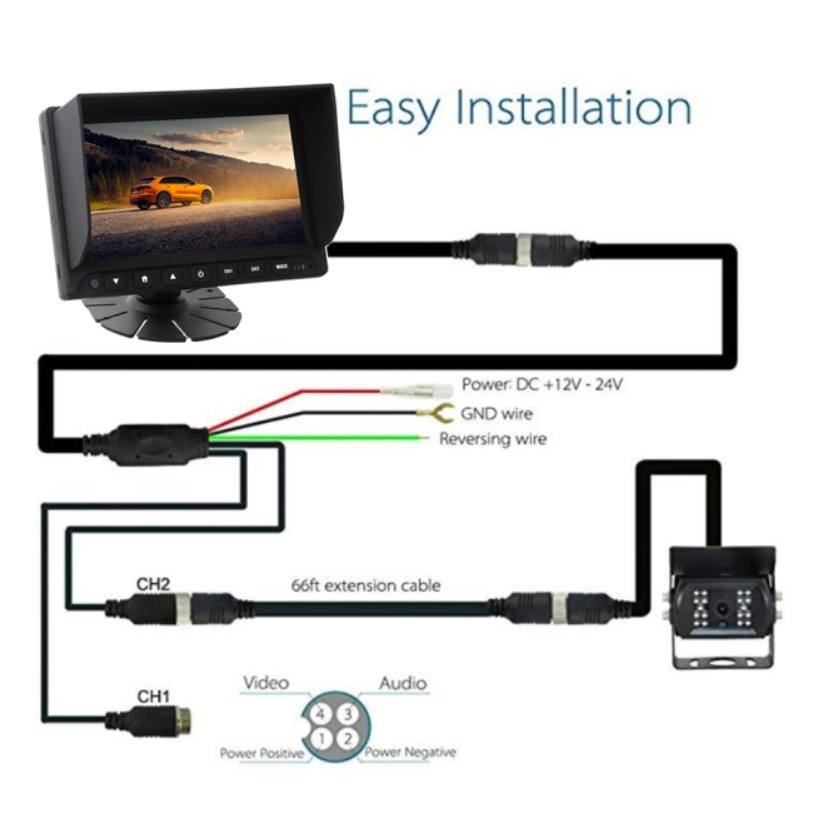

  • Separate power trigger control wire for each camera allowing automatic display of cameras when required. The monitor will automatically switch-over to the image of the corresponding triggered camera, then back to the original mode when the trigger stops
  • Convenient Normal/Mirror View switch allows you to assign cameras to a forward facing position (Normal View) or rear facing position (Mirror View) at the touch a button
  • Convenient Day/Night Mode Switch
  • Adjustable trigger camera view (0-5 seconds) for each camera
  • Built-in Speaker perfect for linking your Masten Premium Camera with Audio for greater safety
  • Compatible with PAL and NTSC
  • Neat hideaway proprietary Masten module allows you to hide all the connections behind the dash
  • Masten Steel Pro Fit Universal Mounting System for a secure fit that won’t budge
  • Multi-language On-Screen Display
  • Working Voltage 12V-32V for greater application compatibility without the need for expensive adapters



  • Unbeatable Melbourne-Based 2-Year Warranty!



Optional Reverse Cameras – If you’re investing in a Masten Premium Monitor it’s also recommended that you invest in a Masten Premium Camera for peace of mind. Masten cameras feature world-class design, waterproof rating and image quality, all this with a 2-Year Warranty (subject to specific models). Click here for more information.



Optional Cables – For reliability and value you can’t go past the well-built range of cables from DIG Options. Click here for more information.



Product Specifications

Display/Monitor Size:

 7 Inch
Monitor Panel Type: Digital LCD LED Panel
Display Colour: Full
Waterproof Rating (with Certification): NA
Camera Inputs: 2
Quad Camera View: NA
TV System:  NTSC/PAL
Resolution: 800 X 3 X（RGB）X 480 Pixels
Aspect ratio: 16:09
Viewing angle: U: 50°/ D:60°, R/L:70°
Brightness: 400cd/㎡.
Contrast: 500:01:00
Lattice Distance: 0.192(H) x 0.1805(V)
Monitor Housing Material: Plastic
Monitor Bracket Type: Dash Mount
Monitor Bracket Material: Iron

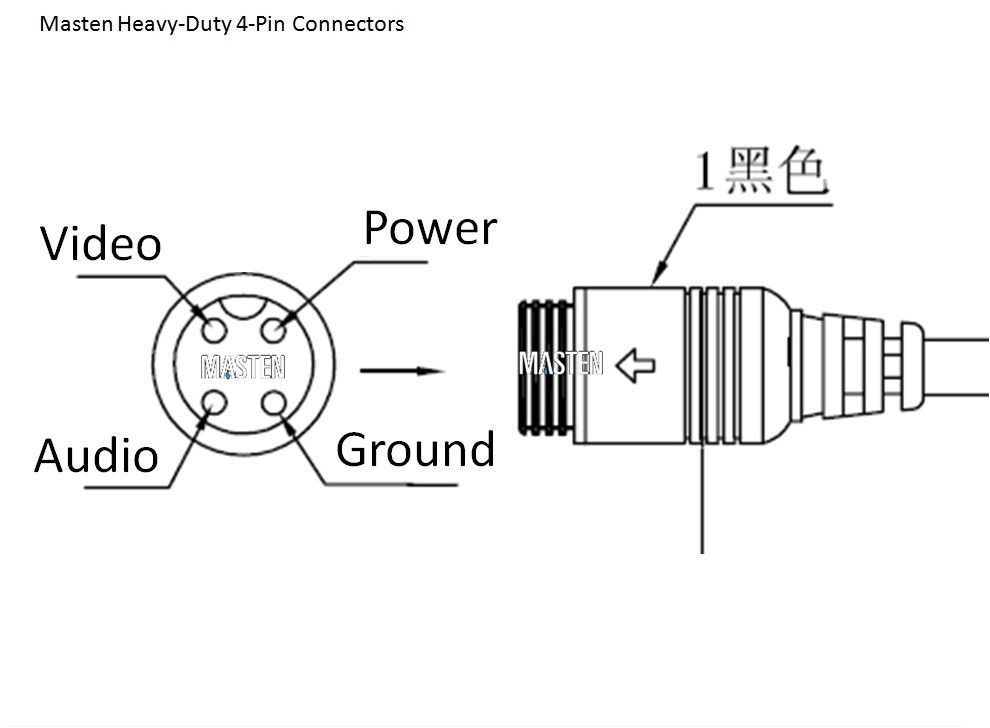

Camera Connection Type: Industrial-Grade 4-Pin Connectors
Automatic Camera Display: Yes - 2 Cameras via Trigger Line from Power Source
Built-in Speaker: Yes - Requires connected camera to have microphone
Bilingual Menu System: Yes - English, Dutch, French, Portuguese, Spanish, Russian and German
Day/Night Mode Switch: Yes - Manually
Mirror/Natural Camera View: Yes - Switchable for each camera
Remote Control: Yes
Working voltage: 12-32V
DC Power Overload Protection: Yes
Working Current: 800MA (with 2 came
Operating Temperature  -10℃~+65℃
Storage Temperature  -30℃~+80℃
Operating humidity: 10%
Product Net Weight: 1KG

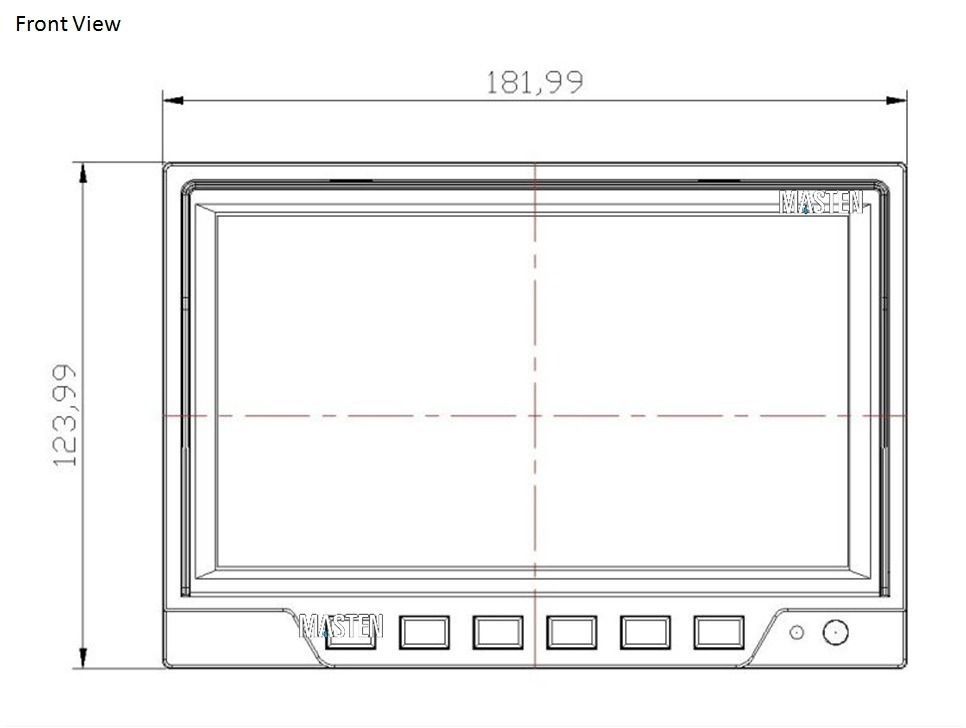

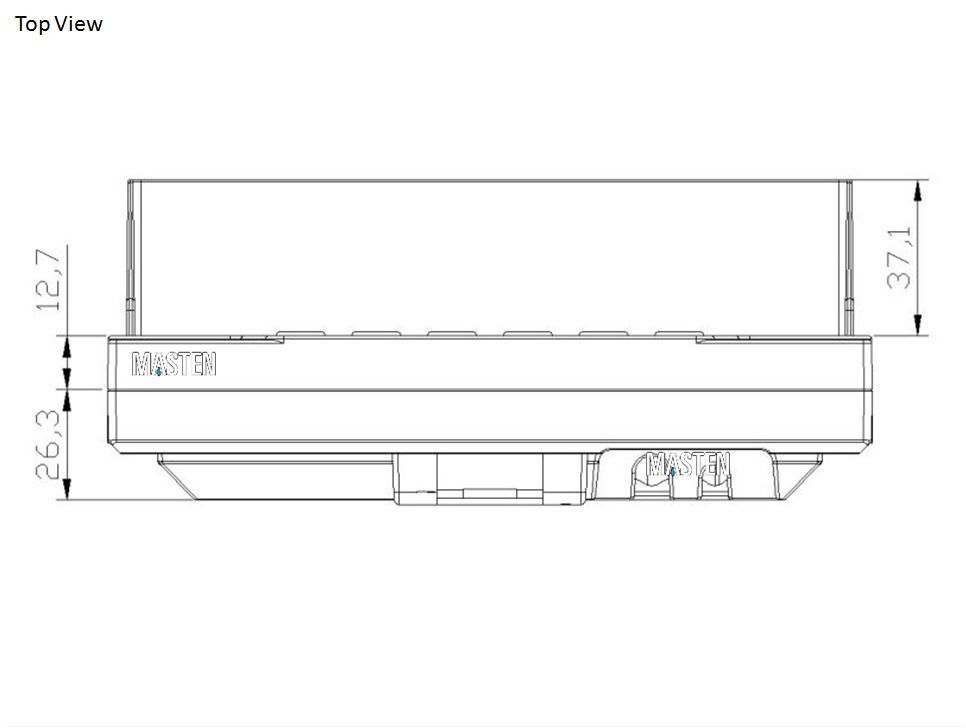

Product Dimensions: 182mm*99mm*124mm





SKU RCM-71QS
Barcode # 9357423078798
Brand Masten
Shipping Weight 1.5000kg
Shipping Width 0.265m
Shipping Height 0.198m
Shipping Length 0.070m
Assembled Width 0.265m
