Caravan CMOS Reverse Camera Kit HD Safety Visibility Spiral Hitch Cable Duty KIT-CAM7
Item Number: KIT-CAM7
Sold Out
Buy best 7"HD Monitor Caravan CMOS Reverse Camera Kit Safety Visibility Spiral Cable at digoptions.com
Have Questions? Contact Us Here
DIG Options have taken the guess work out of adding a second caravan to your car monitor. This kit will plug into an RCA or 4-Pin Aviation-style Video Input. Includes Spiral Hitch Cable for existing 7-Pin trailer plugs.
Product Description
Overview
Caravan Heavy Duty Reversing Camera Kit
Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty. Finally, an inclusive and easily installed way of connecting a top-quality Masten Reverse Camera to your In-Dash or On-Dash monitor!
Add this kit to your existing in-dash or on-dash monitor to help eliminate your reversing blind spot.

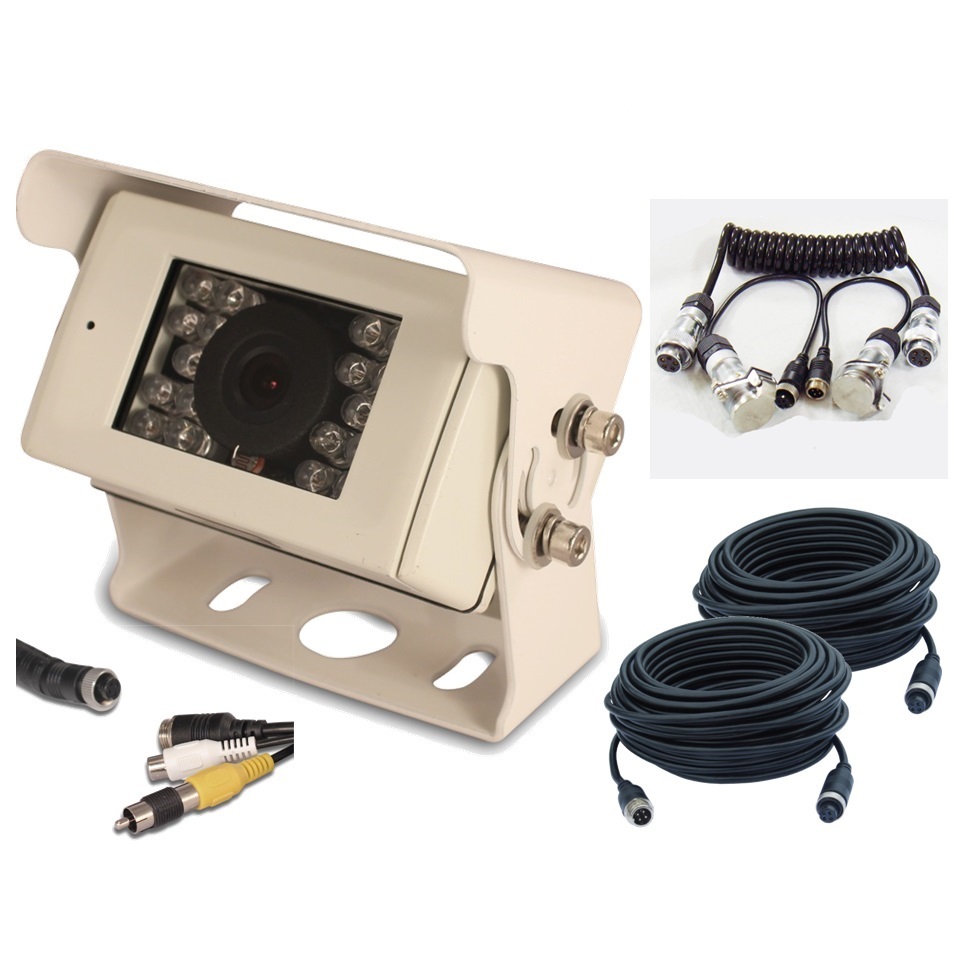

Included in this kit:

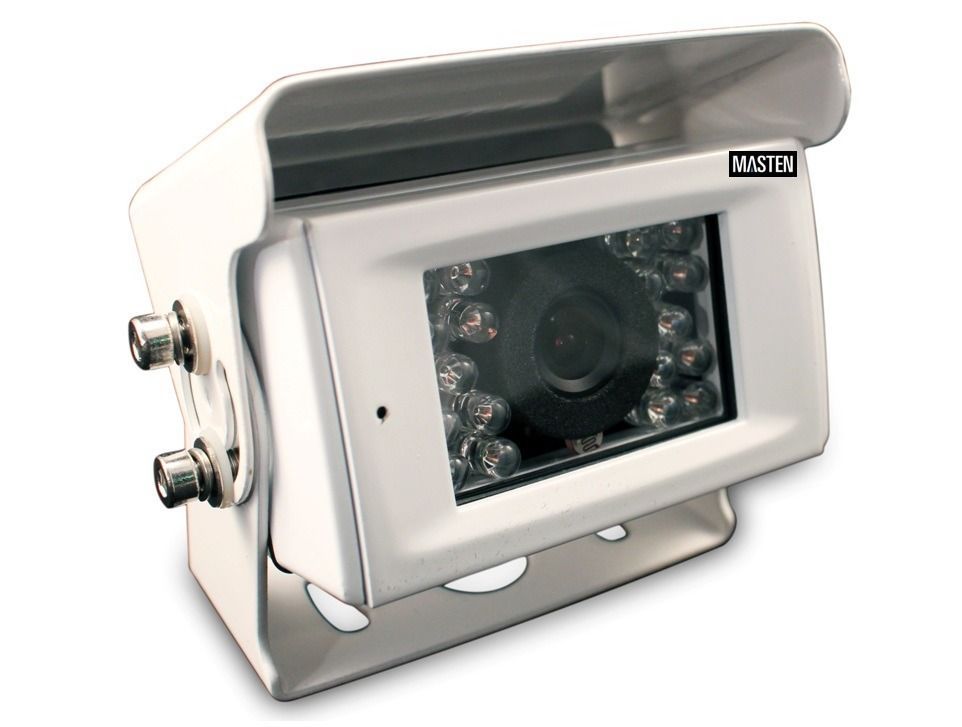

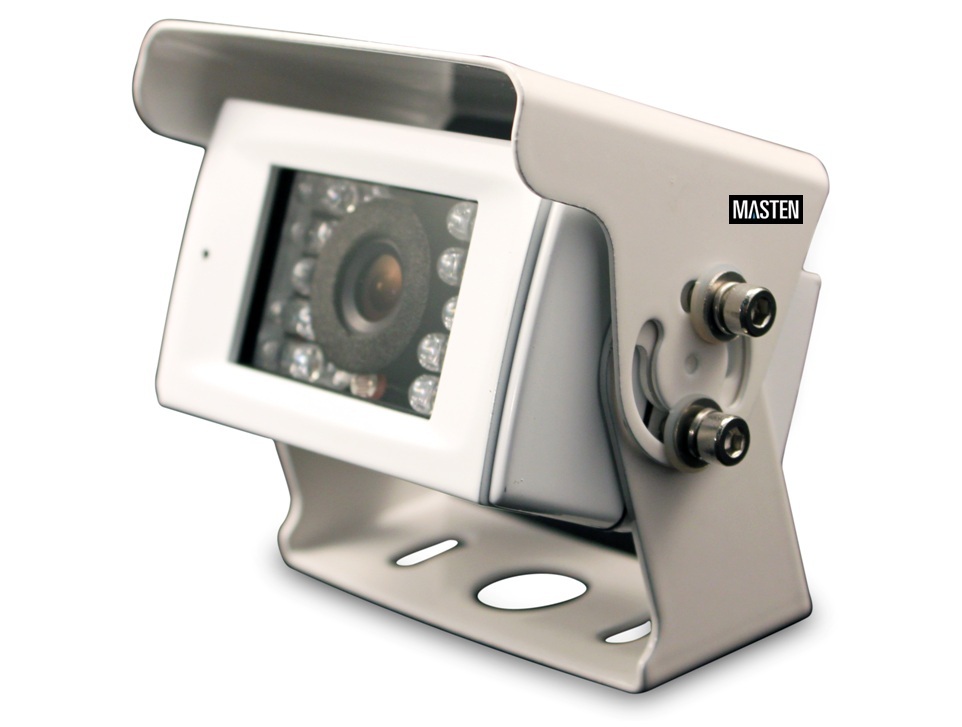

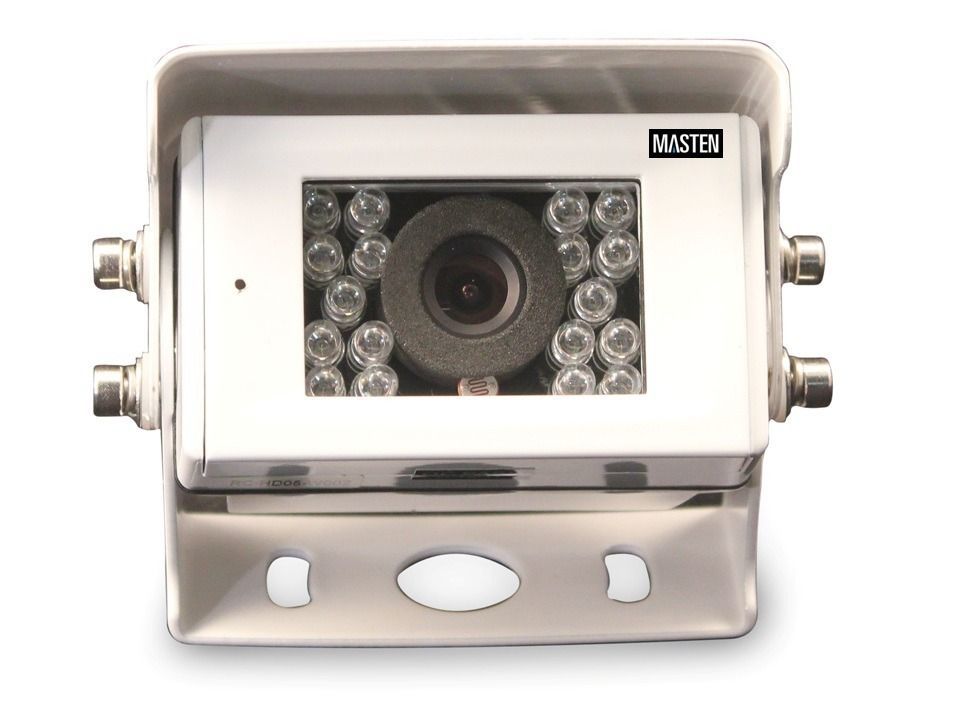

- Masten Premium Heavy Duty Camera with Masten CMOS 420TVL HD Image Sensors (Sony 700TVL Optional)
- Four Pin Female to RCA Plug Adapter
- 7.5m and 15m 4-Pin Shielded Camera Extension Cable
- Spiral hitch cable
Camera Features
World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
Stylish Patented Design
PixelPerfect® High-Grade image sensors feature Masten CMOS 420TVL for clear viewing day and night
(Sony® 1/4 CCD Sensor with 700TV Lines also available).
Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
Safer driving at night with a long 15m night vision viewing distance supported by 18 infrared LED lights
Built-in Audio Microphone for greater safety
Convenient Mirror / Normal image selection via a rear switch
Wide working temperature of Working temperature: -20°C~70°C.
Unique IR-CUT effectively avoids color aberration in daylight
Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more
Unbeatable Melbourne-Based 2-Year Warranty!

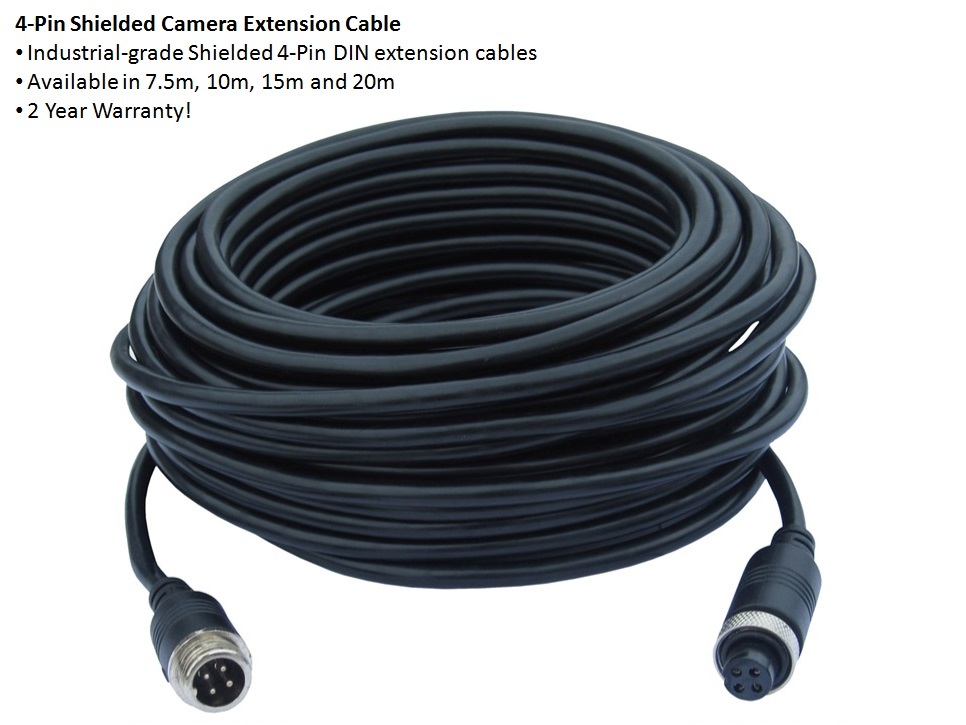

Cable Features
Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.

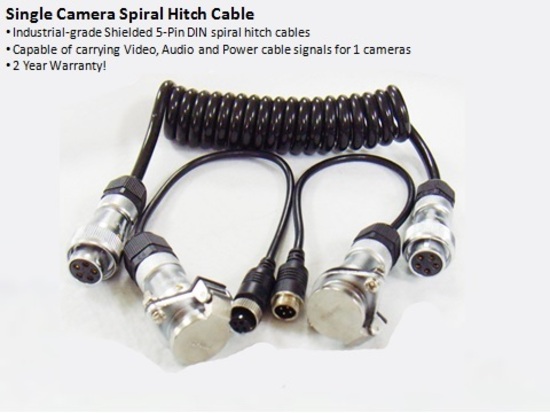

Spiral Cable Features
Industrial-grade Shielded 5-Pin DIN spiral hitch cables from DIG Options are well designed and robust for all conditions and ideal if you're looking for a long lasting cable capable of carrying Video, Audio and Power cable signals for 1 cameras. The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
| Camera Specifications (Sony CCD Camera also available from Dig Options) | ||
| Critical Specifications | ||
| Description: | Premium CMOS Heavy Duty Camera - included in this kit | Premium CCD Heavy Duty Camera (optional) |
| Image Device: | CMOS | 1/4 SONY CCD |
| Resolution: | 420TV lines | 700TV lines |
| Lens: | 2.5mm | 2.5mm |
| Lens Angle: | 120 Degrees | 120 Degrees |
| Infrared LED light: | 18 LEDs | 18 LEDs |
| IR Distance: | 15m | 15m |
| Waterproof Rating: | IP69K | IP69K |
| Audio Microphone: | Yes | Yes |
| Technical Specifications | ||
| TV System: | PAL/ NTSC | PAL/ NTSC |
| Manual Mirror Image Switch | Yes | Yes |
| Effective Pixels: | 512 x 582 pixels / 512 x 492 pixels | 512 x 582 pixels / 512 x 492 pixels |
| Sensing Area: | 3.6mm x 2.7mm | 3.6mm x 2.7mm |
| Scanning System: | 2:1 Interlace | 2:1 Interlace |
| Sync. System: | Internal | Internal |
| Horizontal Sync. Frequency: | 15.625 KHz / 15.734KHz | 15.625 KHz / 15.734KHz |
| Vertical Sync. Frequency: | 50Hz / 60Hz | 50Hz / 60Hz |
| Minimum Illumination: | 0Lux (Infrared lamps on) | |
| 0 .1Lux(day) / F1.2 | 0Lux (Infrared lamps on) | |
| 0 .1Lux(day) / F1.2 | ||
| Video Output: | 1.0vp-p, 75Ohm | 1.0vp-p, 75Ohm |
| Gamma Consumption: | 0.45 | 0.45 |
| AGC: | Auto | Auto |
| S/N Ratio: | Better than 48dB | Better than 48dB |
| White Balance: | Auto | Auto |
| Electronic Shutter: | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds |
| BLC: | Auto | Auto |
| Shell material: | Aluminum alloy | Aluminum alloy |
| Current Consumption: | Max. 180mA | Max. 180mA |
| Power Supply: | DC12V | DC12V |
| Operating Temperature: | -20°C~70°C MAX | -20°C~70°C MAX |
| Storage Temperature: | -40°C~80° MAX | -40°C~80° MAX |
| Dimensions : | 80(L) ×74 (w) ×71 (H) mm | 80(L) ×74 (w) ×71 (H) mm |
| SKU | KIT-CAM7 |
| Barcode # | 9357423016592 |
| Brand | Masten |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.070m |
| Shipping Length | 0.035m |
Unbeatable Masten 2 Year Replacement Warranty
