This premium rear camera safety kit combines versatile and durable cables with a heavy duty CCD camera and 4 pin male adapter,  this kit is a one-stop shop for all your needs.

This kit includes:

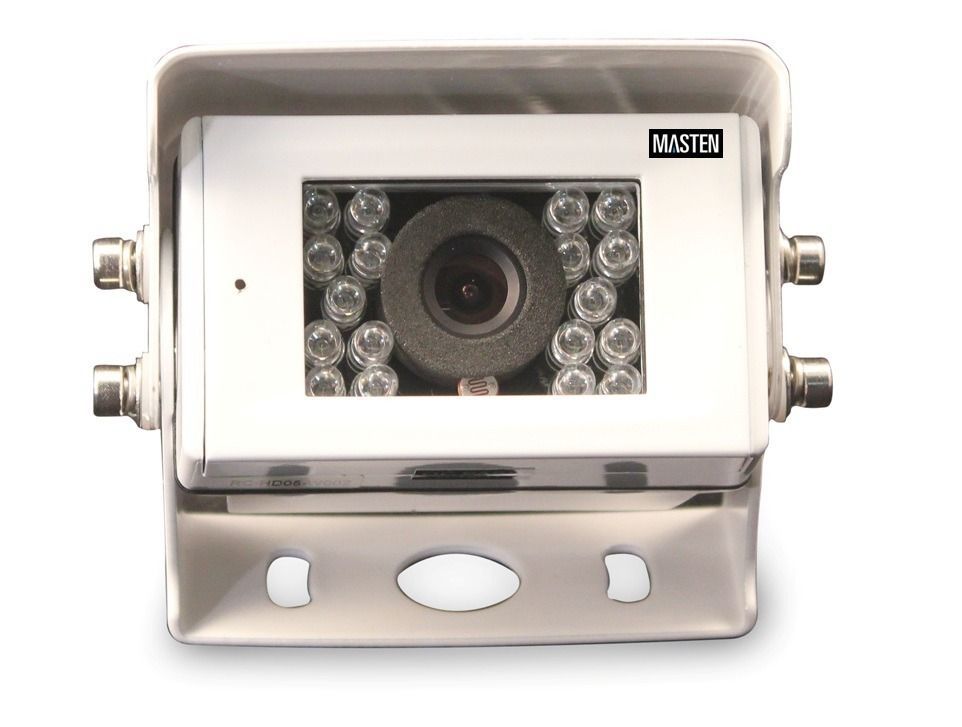

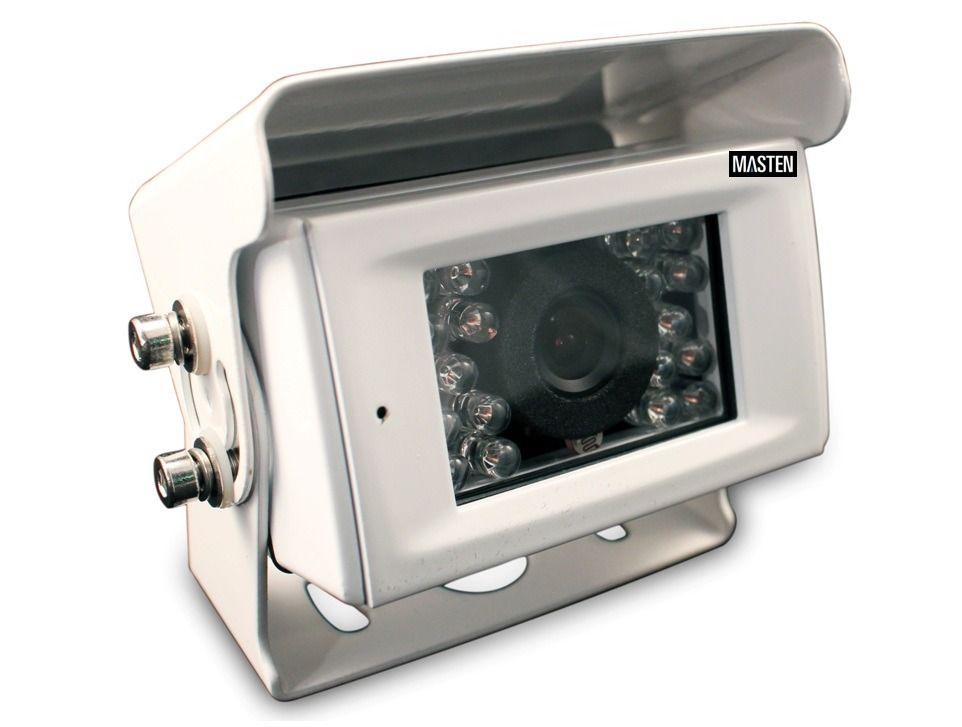

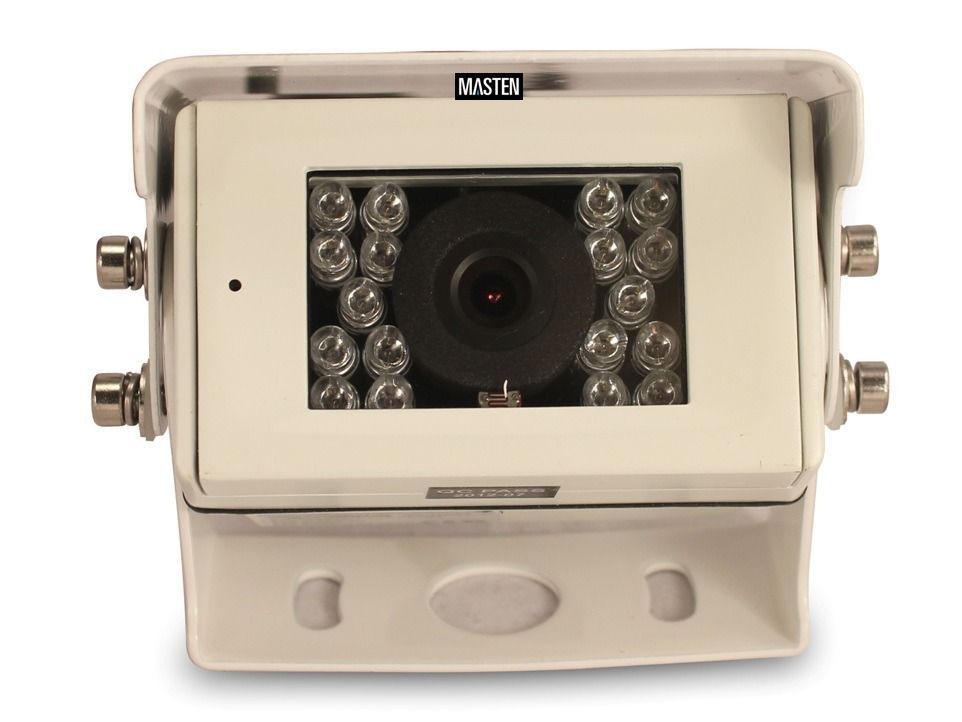

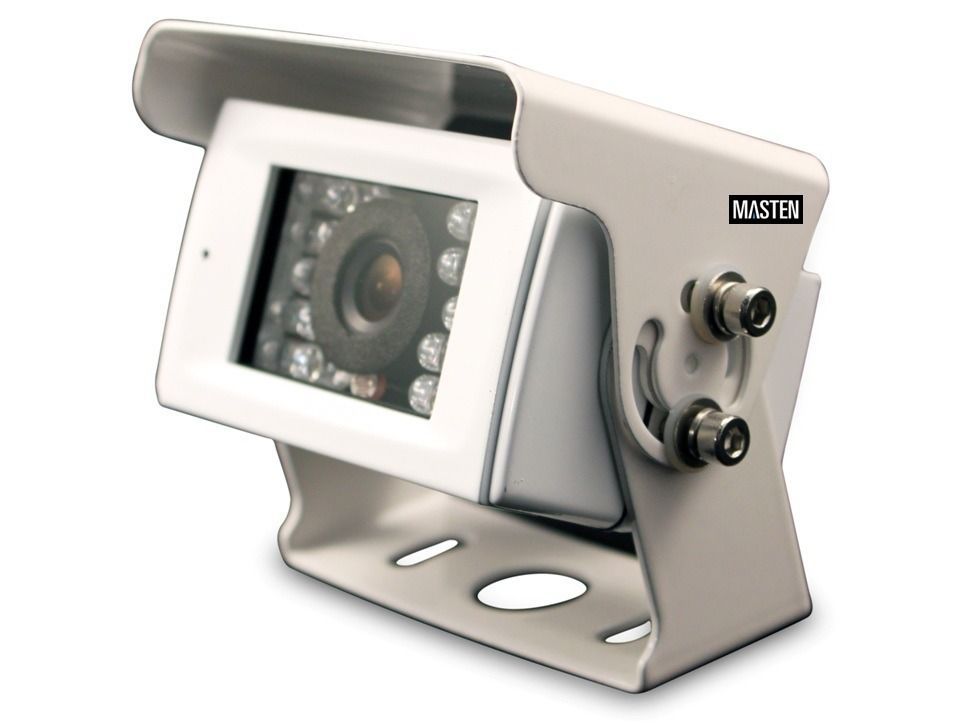

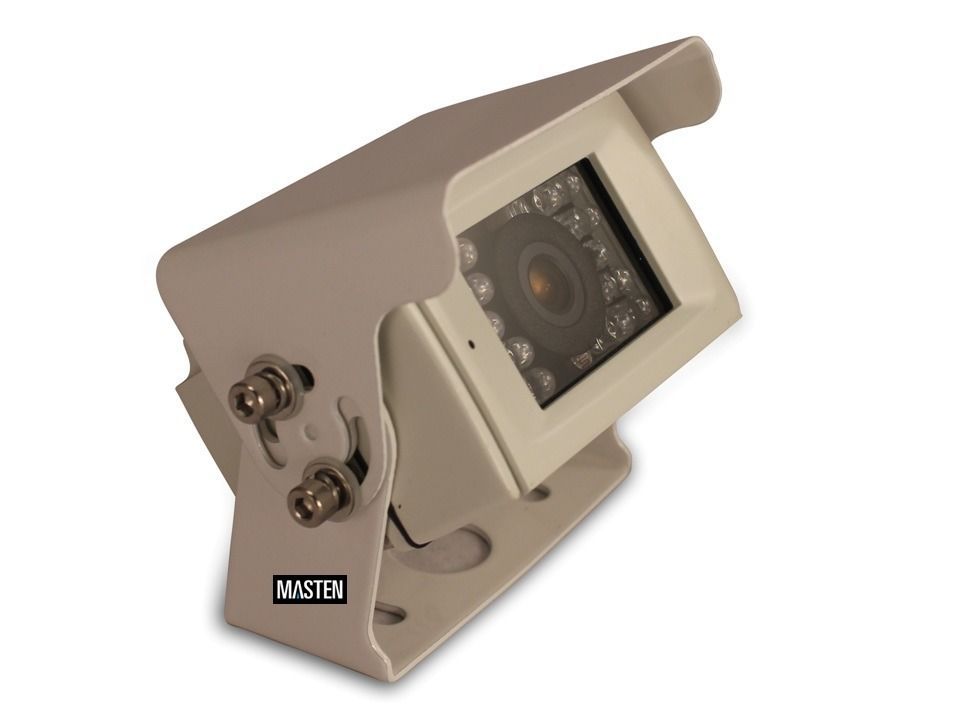

Heavy Duty Masten White Rear Camera

  •         World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications

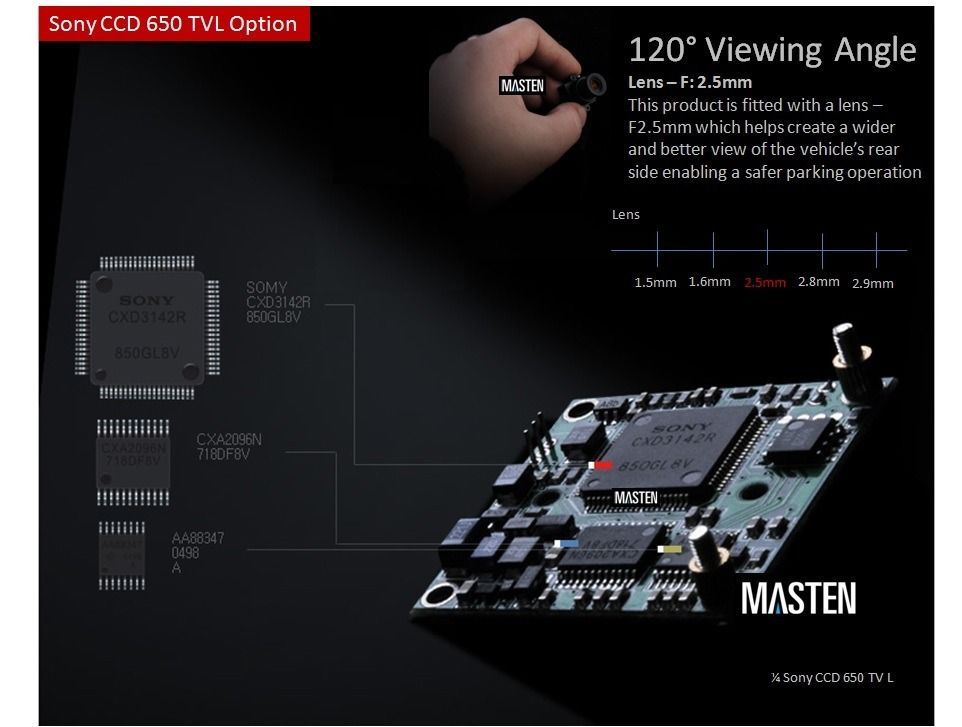

  •          PixelPerfect® High-Grade image sensors feature 650 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night
  •          Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
  •          Safer driving at night with a long 15m night vision viewing distance supported by 5 infrared LED lights
  •          Built-in Audio Microphone for greater safety
  •          Convenient Mirror / Normal image selection via a rear switch
  •          Built to withstand and work in any temperature range between : -20°C~70°C.
  •          Unique IR-CUT effectively avoids color aberration in daylight

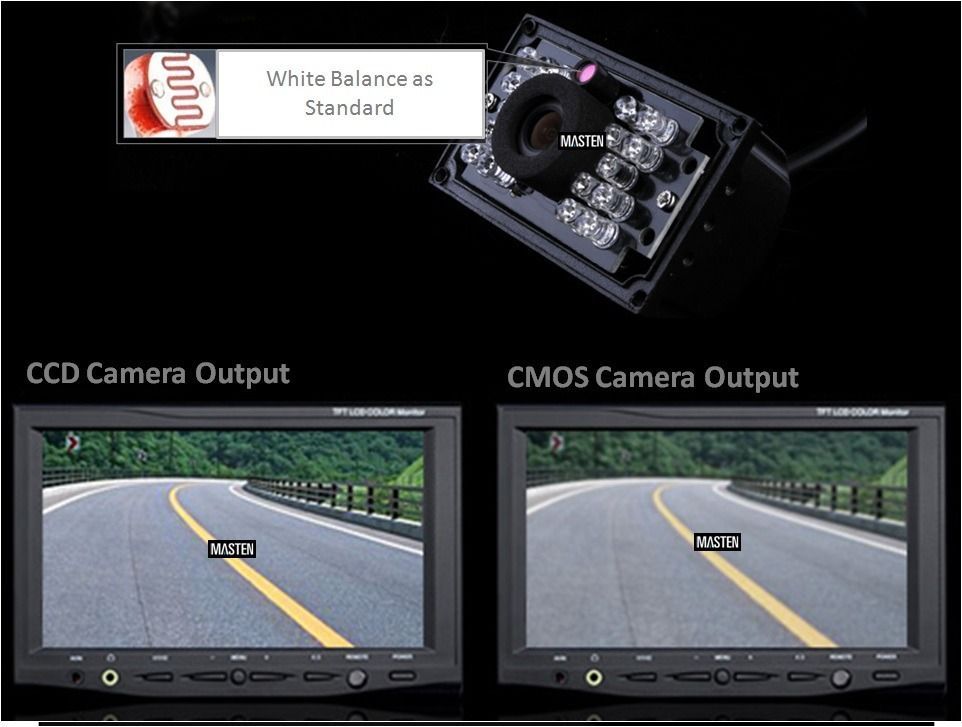

  •          Equipped with a White Balance sensor enabling the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
  •          Industrial-grade 4-Pin Aviation Connectors for a firm, water-tight connection
  •          Suitable for all applications including utes, buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more



4-Pin Male to RCA Adapterfor RCA Monitor input

  • Designed to connect 4-Pin Female-end Extension Cables to a Monitor, In-Dash Stereo, Camera Switch box etc with RCA Input
  • If you have a 4-Pin Extension cable and a monitor with an RCA input you will need this adapter to convert the 4-pin to RCA. Your cable end will need to be a 4-Pin female (no pins) for this to work.

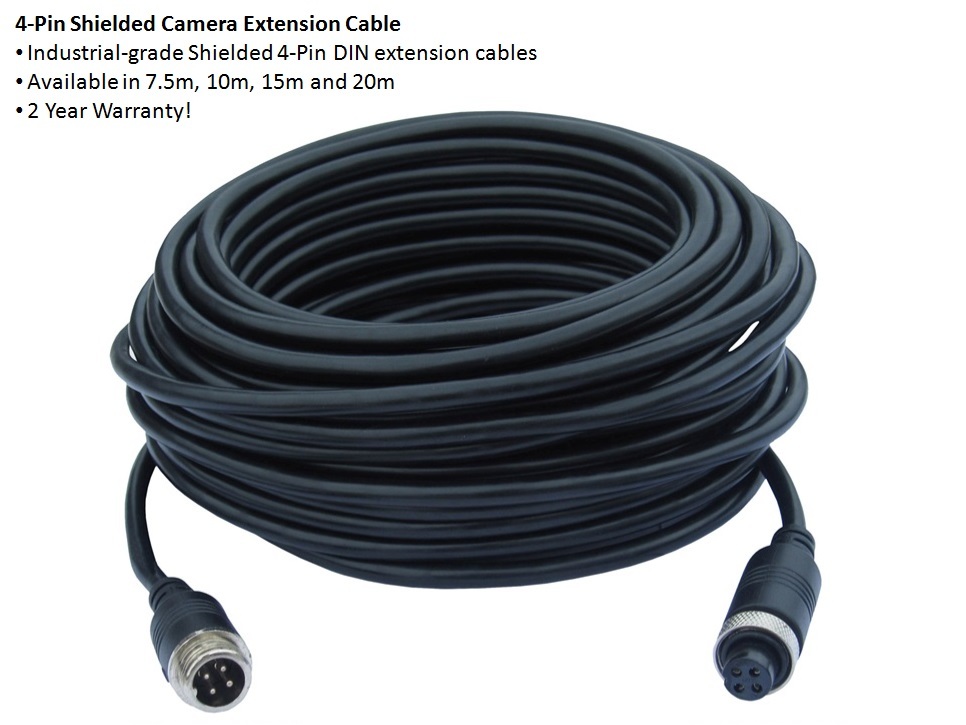

7.5m 4-Pin Shielded Camera Extension Cable (Single)

  • Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
  • The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
  • This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
  • Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.
  •

15m 4-Pin Shielded Camera Extension Cable (Single)

  • Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
  • The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
  • This cable combines video, audio and power within the same wire and is designed to simplify the rear view camera installation process.
    Ideal for connecting cameras to monitors for a range of applications: cars, buses, trucks, farm machinery, mining and much more.

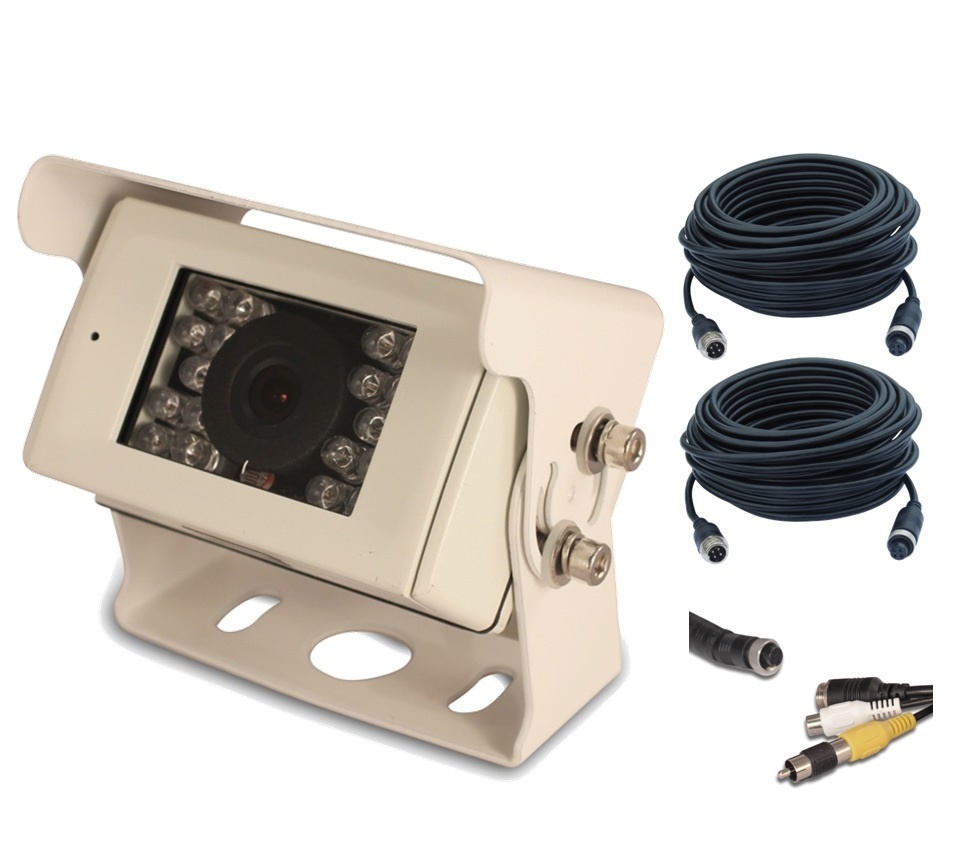

Parts included

  1.  Masten CCD Heavy Duty Camera White                                                         - RC-HD06-W
  2. Adapter 4-Pin Male to RCA Male (to RCA Monitor or from RCA Camera)       - EC-4M
  3.  7.5m 4-Pin Shielded Camera Extension Cable (Single)                                  - EC-71
  4.  15m 4-Pin Shielded Camera Extension Cable (Single)                                   - EC-151
Camera Specifications (Sony CCD Camera also available from Dig Options)
Critical Specifications
Description: Premium CMOS Heavy Duty Camera (optional) Premium CCD Heavy Duty Camera - Included in this kit
Image Device: CMOS 1/4 SONY CCD
Resolution: 420TV lines 700TV lines
Lens: 2.5mm 2.5mm
Lens Angle: 120 Degrees 120 Degrees
Infrared LED light: 18 LEDs 18 LEDs
IR Distance: 15m 15m
Waterproof Rating: IP69K IP69K
Audio Microphone: Yes Yes
Technical Specifications
TV System: PAL/ NTSC PAL/ NTSC
Manual Mirror Image Switch Yes Yes
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 3.6mm x 2.7mm 3.6mm x 2.7mm
Scanning System: 2:1 Interlace 2:1 Interlace
Sync. System: Internal Internal
Horizontal Sync. Frequency: 15.625 KHz / 15.734KHz 15.625 KHz / 15.734KHz
Vertical Sync. Frequency: 50Hz / 60Hz 50Hz / 60Hz
Minimum Illumination: 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2 0Lux (Infrared lamps on)
0 .1Lux(day) / F1.2
Video Output: 1.0vp-p, 75Ohm 1.0vp-p, 75Ohm
Gamma Consumption: 0.45 0.45
AGC: Auto Auto
S/N Ratio: Better than 48dB Better than 48dB
White Balance: Auto Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC: Auto Auto
Shell material: Aluminum alloy Aluminum alloy
Current Consumption: Max. 180mA Max. 180mA
Power Supply: DC12V DC12V
Operating Temperature: -20°C~70°C MAX -20°C~70°C MAX
Storage Temperature: -40°C~80° MAX -40°C~80° MAX
SKU KIT-CAM6
Barcode # 729436059986
Brand Masten
Shipping Weight 0.1500kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.035m

Unbeatable Masten 2 Year Replacement Warranty

Heavy Duty Premium CCD 700TVL Camera Kit with RCA Adapter 7.5m 15m Cables Heavy KIT-CAM6 has a rating of 4/5 based on 1 reviews.

Good quality kit for caravans

By: on 11 November 2015
This kit represents good value for people who have just bought a caravan and need to add it to the existing car reverse camera. The camera is well built and the mounts are sturdy and positive screw locking ensures adjustments stay fixed. The cables and extension sockets are good quality and when installed look professional and reliable. The only thing this kit needs to make it outstanding are mounting brackets to fit the Woza cable sockets to the caravan and car. Overall recommended and supported by a local company.
