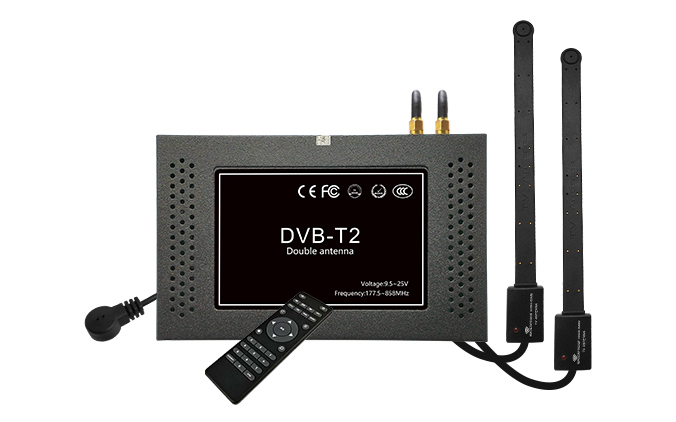

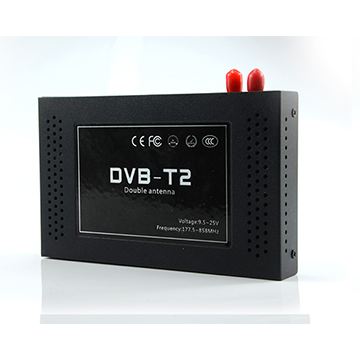

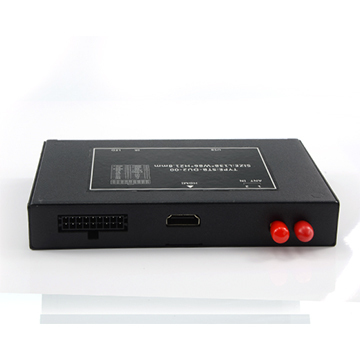

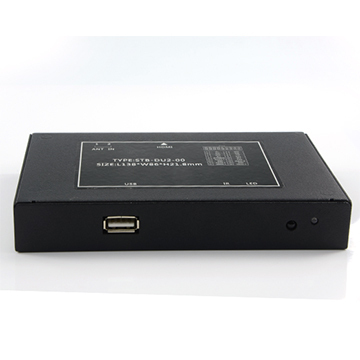

In HD Car DVB-T TV Dual Tuner Receiver Auto Freeview Digital TV Box Dolby Sound DVB-T02
Item Number: DVB-T02
Sold Out
TV Receiver for receiving free digital TV in both standard and high definition, directly in your vehicle with quad tuner (4 amplified antennas) and integrated Dolby Sound Decoder. Compatible in most countries including Australia, UK, Europe, etc.
Have Questions? Contact Us Here
HD Car Mobile Digital TV Auto Freeview Digital TV Box Dolby Sound 2 Antennas (latest technology and same performance as 4 antennas)
The DVB-T02 from DIG Options is a Premium HD DVB-T TV Receiver for receiving free digital TV in both standard and high definition, directly in your vehicle. Unique to the DVB-02 is the Dolby Sound processor. Many digital TV receivers on the market don't have this feature which means if you want to view programs like 24 hour news you won't be able to hear anything.
The DVB-T02 from DIG Options is the first of it's kind with newly upgraded Dual Tuner (2 amplified antennas) and integrated Dolby Sound Decoder.
The DVB-T02 is compatible in most countries including Australia, UK, Europe and other countries. Please check out the following link for a full list of countries.
http://en.wikipedia.org/wiki/DVB-T#Countries_and_territories_using_DVB-T.5B2.5D
Features
- Fully compliant with HD DVB-T MPEG-2 / MPEG-4 AVC / H.264 Standard
- Audio Decoder: MPEG-2 / HE_ACC / DD / DD+ / DOLBY
- Connect your monitor directly - nothing more to buy
- USB Input for Recording Footage (PVR) and Playing Multimedia Files (JPEG,MP3,MP4,RMVB as well as AVI/MPG/DAT/VOB.
- Record and Playback TV with PVR Feature - USB Thumb Drive Required
- Y/Pr/Pb Output supports 1920 x 1080i resolution
- Video Output - 1 CVBS & 1 HDMI
- 1 Set of AV inputs for connection to a DVD system or game console
- High Doppler effect correction
- Supports Multi Language: English, Deutsche, French, Swedish, Russian, Portuguese, Czech, Danish, Italian and Spanish
- 2 Powerful Window Mount Internal Antennas Included with Active Amplifier and 5m long cable
- Automatic and Manual Program Search Function
- Storage of over 1000 TV and Radio programs
- Fast Scan Function for high speed driving and transmitter switching
Simple Installation
- The DVB-T02 installs very quickly and easily by simply:
- Attach the powerful antennas to the receiver and mount them on the inside of the window - for best results we have found front and back windscreen work best however, both on the front may be equally as good depending on your location
- Connect the supplied RCA cables from the DVB-02s Video/Audio outputs into your monitors Video/Audio inputs
- Connect power and earth to the receiver
- Start watching digital TV

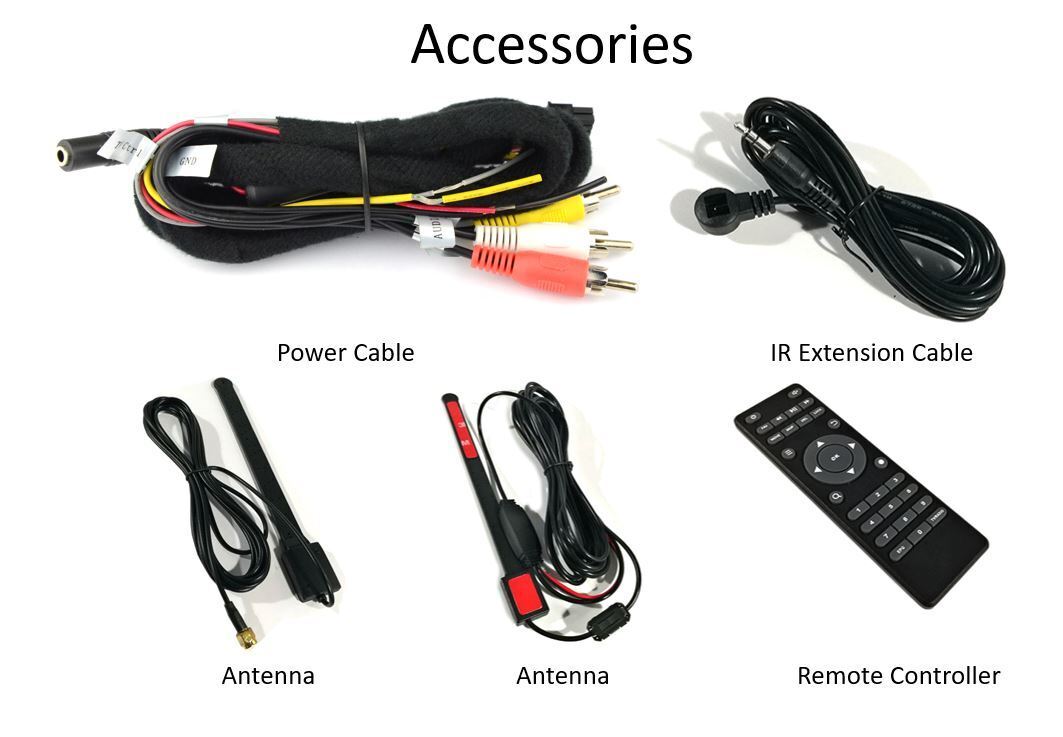

What's Included
- Car DH/SD DVB-T02 Digital TV Receiver
- Remote Control - battery not included (CR-2025)
- IR Remote Control Receiver
- A/V Cable Power Supply Cables
- User Manual
- Powerful Amplified DVB-T Window Mount Antennas (2)
Specifications
| RF Input | UHF:470MHz~860MHz VHF:174MHz~230MHz |
| Input Impedance | 75Ω |
| Signal Level | 80dBm~-10dBm |
| Connector Type | F type terminal x4 |
| Channel Band Width | 6M / 7M / 8M |
| Constellation | APSK,16QAM,64QAM |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| COFDM Carrier Mode | 2K And 8K Non Hierarchical/Hierarchical |
| Transport Stream | MPEG-4 AVC/H.264 HP@L4 ，MPEG-2 MP@HL/ML |
| Video Aspect Ratio | 4:3/16:9 |
| Video System | PAL/NTSC |
| Video Output | 1±0.3Vp-p |
| Video Resolution Y Pr Pb Resolution: |
720*576@25fps/720*480@30fps/HD 1920x1080i/HD 1920x720p |
| Audio Decoder | MPEG-2/HE_AAC(DD/DD+optional) |
| Audio Channel | R/L/ST |
| Audio Output | 1Vpp 47Kohm Adjustable With E Volume |
| Power Cable And Jack:6Pins |
1. DC+12~24V Input 2. ACC 3. Parking Switch 4. DC+12~24V Output 5~6.GND |
| DIN Jack for Video Output | Videox2,YPrPbx1,GND |
| IR Extension Jack | For IR Extension Box |
| A/V Output Jack | Video RCA Jackx1,Audio RCA Jack(R/L)*2 |
| ANT1,ANT2 Input Jack | IEC169-24,Female F Type |
| Operating Temperature | |
| Storage Temperature | |
| Power Supply | DC+12V~24V±10% |
| Power Consumption | Running:6W Max ，Standby:1.5W Max |
| Dimension | 125(L)*94(W)*27(H)mm |
| Packing Size(GIFT BOX) | 206(L)*180(W)*57(H)mm |
| Weight | N.W.: |
| SKU | DVB-T02 |
| Barcode # | 9357423015083 |
| Brand | Masten |
| Shipping Weight | 1.9000kg |
| Shipping Width | 0.240m |
| Shipping Height | 0.045m |
| Shipping Length | 0.270m |
| Assembled Width | 0.240m |
12 Month Warranty
Crisp clear pictures
By: Tuan on 7 November 2015Being a professional installer in the industry of automotive electronics for over 20 years I have seen many good and bad attempts at making a great tv tuner for automotive use. Having fitted many in the years I must say not often a product comes by that can stand up to their claim well this unit pretty much does I would have to say with four built in amplified digital antennas reception is fantastic while stationary.Once on the move reception can vary but that is normal as you can imagine trying to track a signal through speed and interference from buildings and so forth .Still over all the product is great and gives great reception for the small outlay of dollars which many other tuners at this price would not come close to matching . Once again another well recommended product that i would approve of for those seeking digital TV for their cars 4x4 or caravan.
(5)
