Forklift Specific Digital Wireless Camera System

OPTIONAL - If you don't already have one, you can add in the Masten 7" Monitor see product KIT-FLD-M

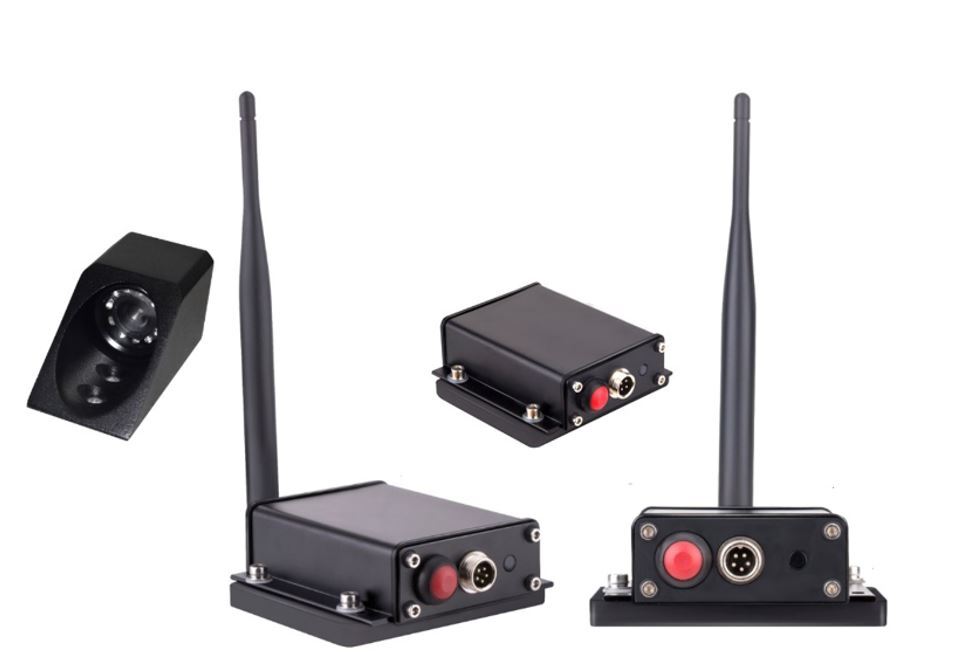

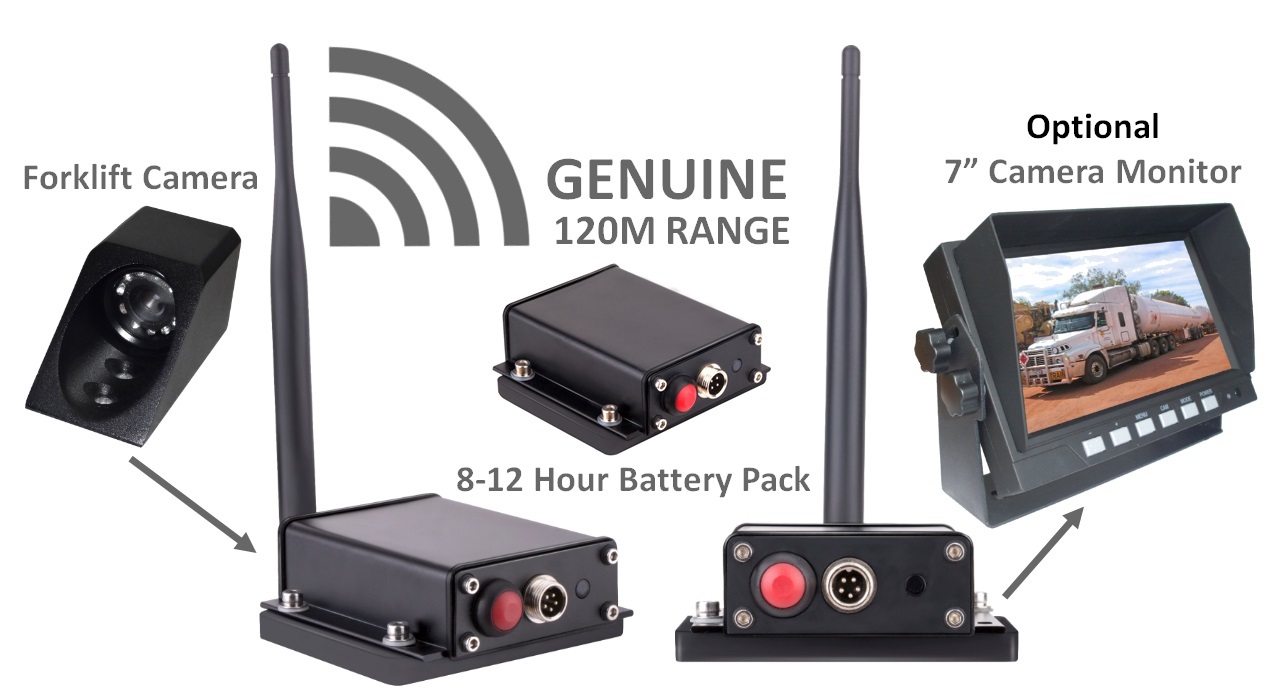

Kit Includes:

1. Heavy Duty Forklift Specific CCD Camera (RC-FL01-B)
2. Digital Wireless Transmitter and Reciever (MA-RX01)
3. Transmitter 2600mah Battery Pack (MA-B32)

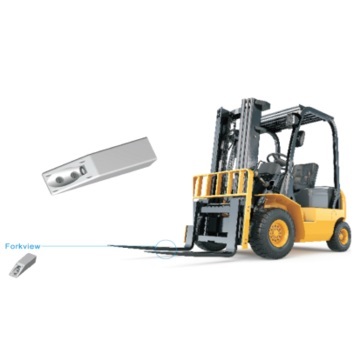

What is Masten Forklift/Truck Camera System?
FTCS (Forklift Truck Camera System) is specially designed camera system for Forklift Operators. Although an experienced forklift operator can manoeuvre pallets and other packages into every available space, his view of the fork position will also limit how quickly and effectively the driver can work. With Masten's FTCS, the operator will be able to work faster, safer and more efficiently immediately as they will have a clear view of what they are doing.

Why you should choose a Masten forklift / truck camera system?

• Wireless Power
• Magnetic Installation
• Digital, Interference-Free Wireless Transmission
• Prevents accident when loading goods

Masten offers complete camera solution for forklift and other loading machines to help forklift truck reversing and operating. The whole forklift camera system including backup camera (optional) monitor and cables. A backup forklift camera and monitor can be connected by wireless technology or cables. With our forklift camera solution forklift drivers can see the front and side blind spots and load more accurately and efficiently.

What does the Masten forklift / truck camera system consist of?

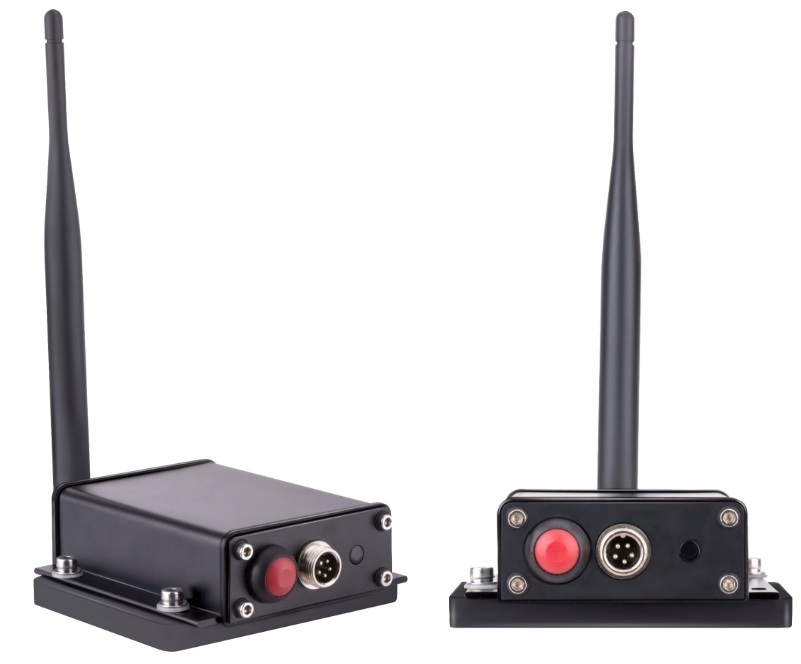

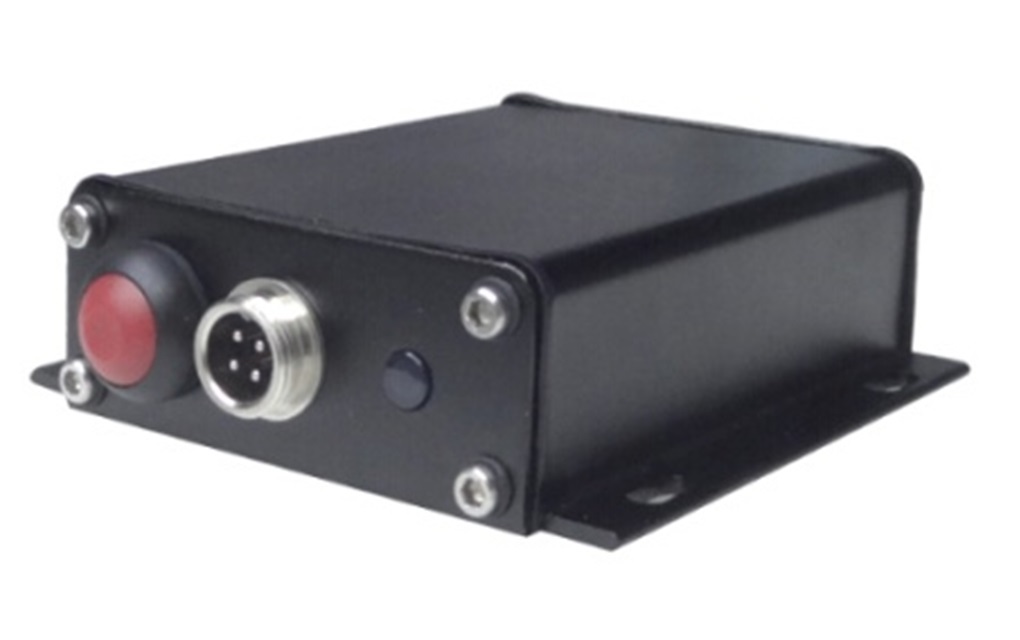

1. Digital Wireless Transmitter & Receiver
Due to the limitation of wired systems we have a specially designed wireless system for forklfts including a wireless transmitter & a wireless receiver. This means that there will be no cables between the camera and monitor.

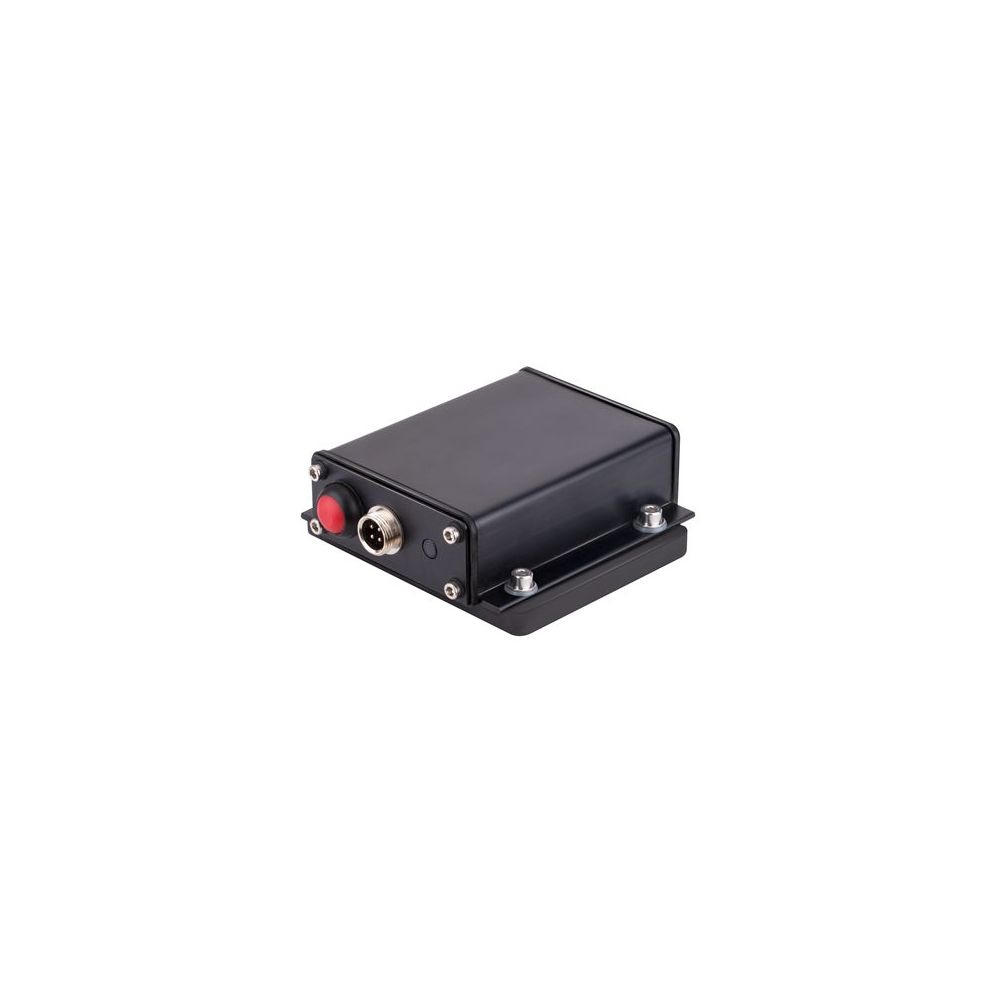

2600mah Battery Box Supply Power with 8-12 hours Working Time
Since cameras mounted on a forklift are difficult to get power to, this battery pack will ensure the camera can work completely wirelessly.

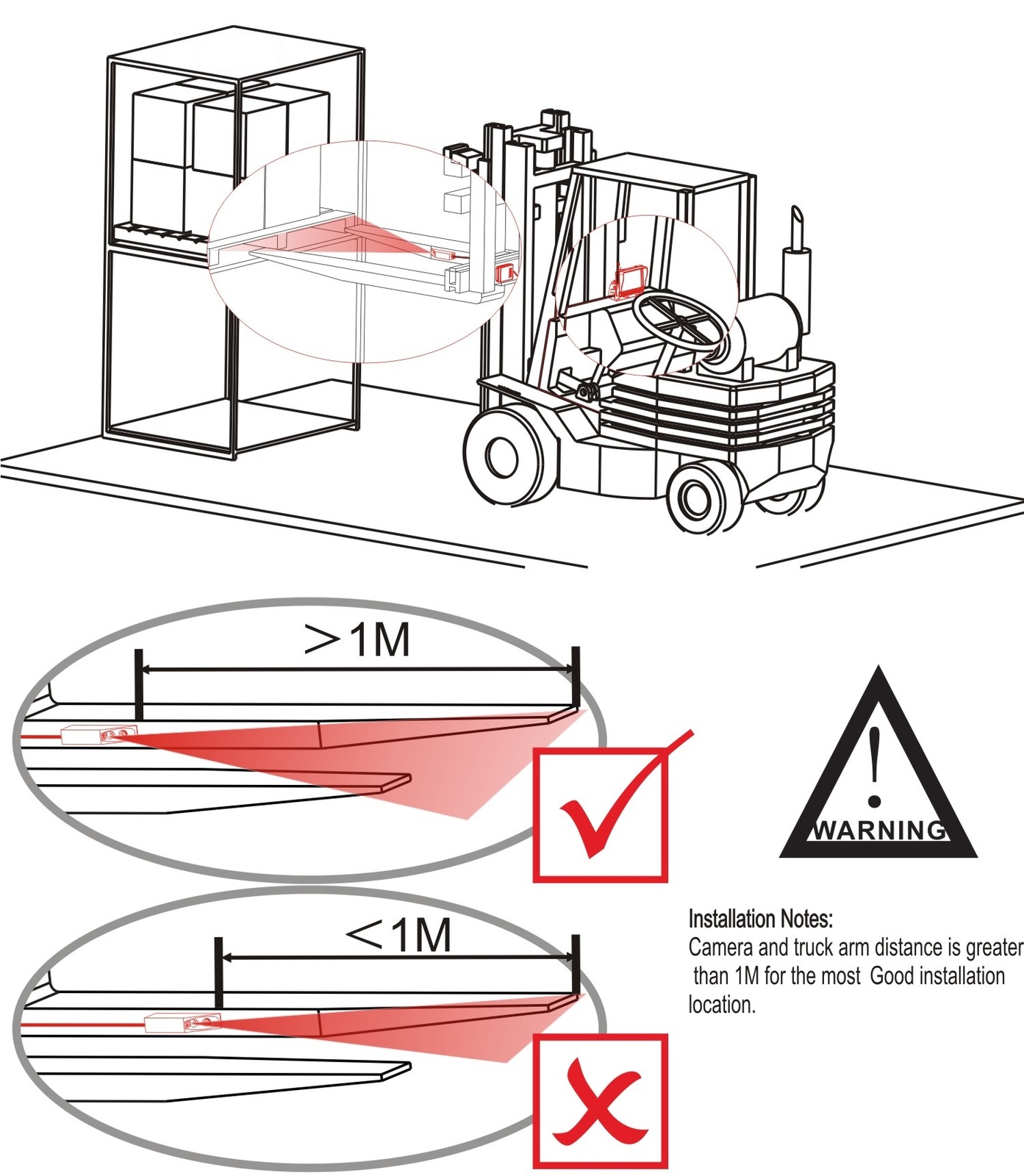

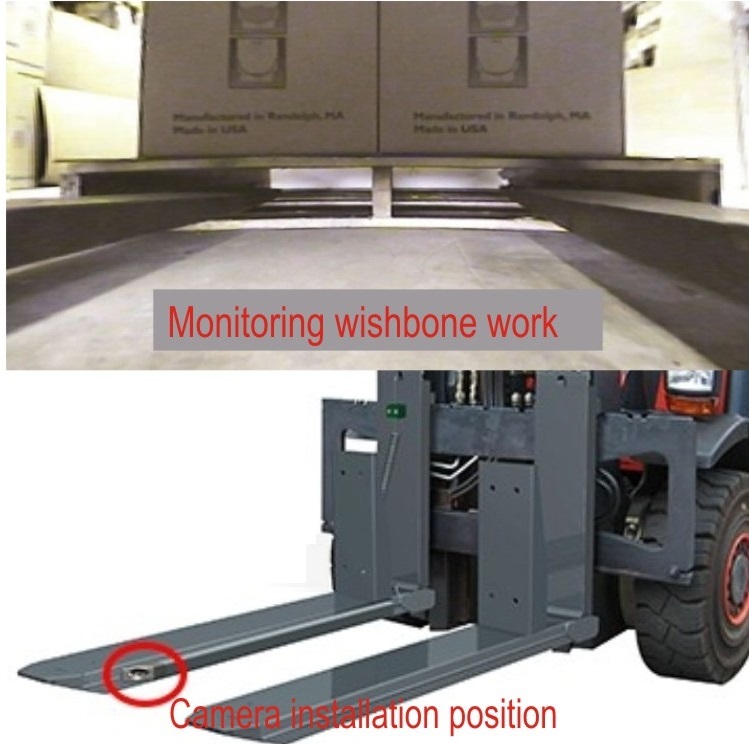

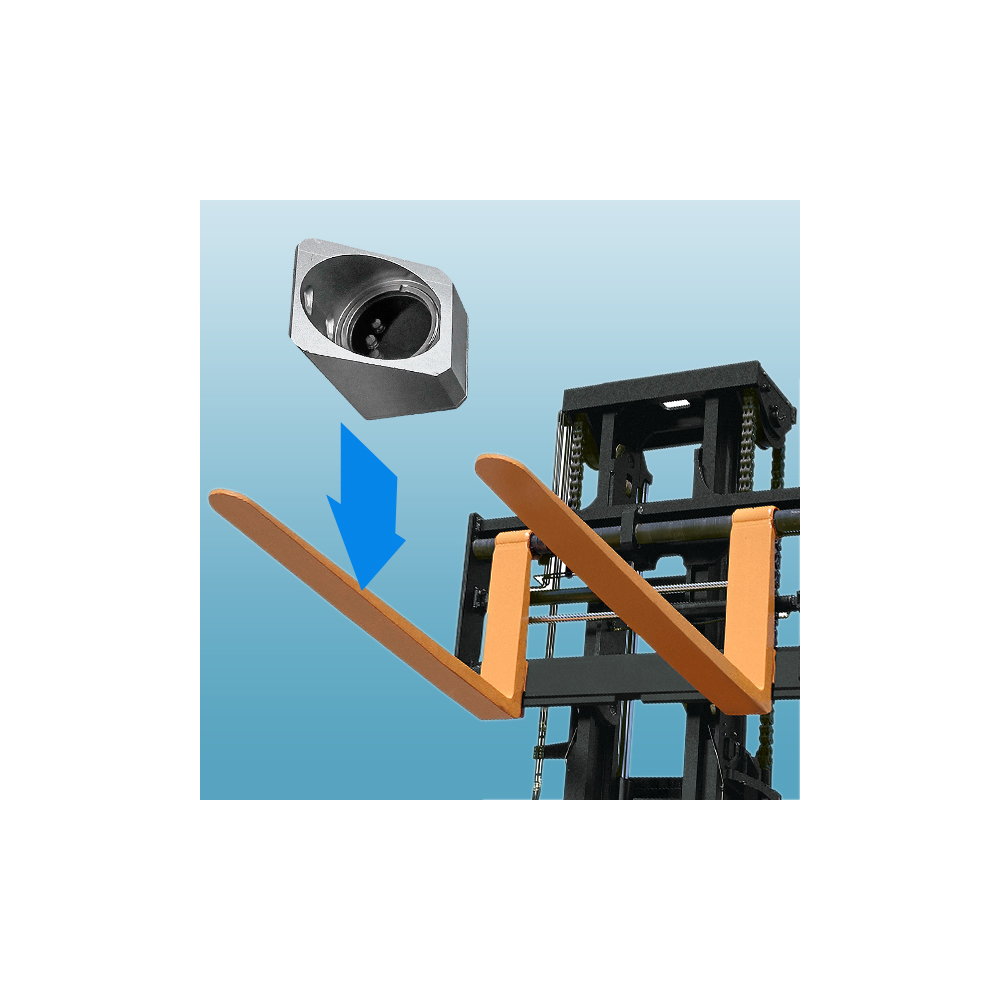

Magnet Installation
The FTCS with magnet installation means there is no need for screws to install the camera, there will be no damage to the forklift.

Support more cameras Inputs
The Masten Wireless Forklift Camera System supports a maximum of 4 camera inputs which will ensure everywhere surrounding the forklift can be viewed by driver

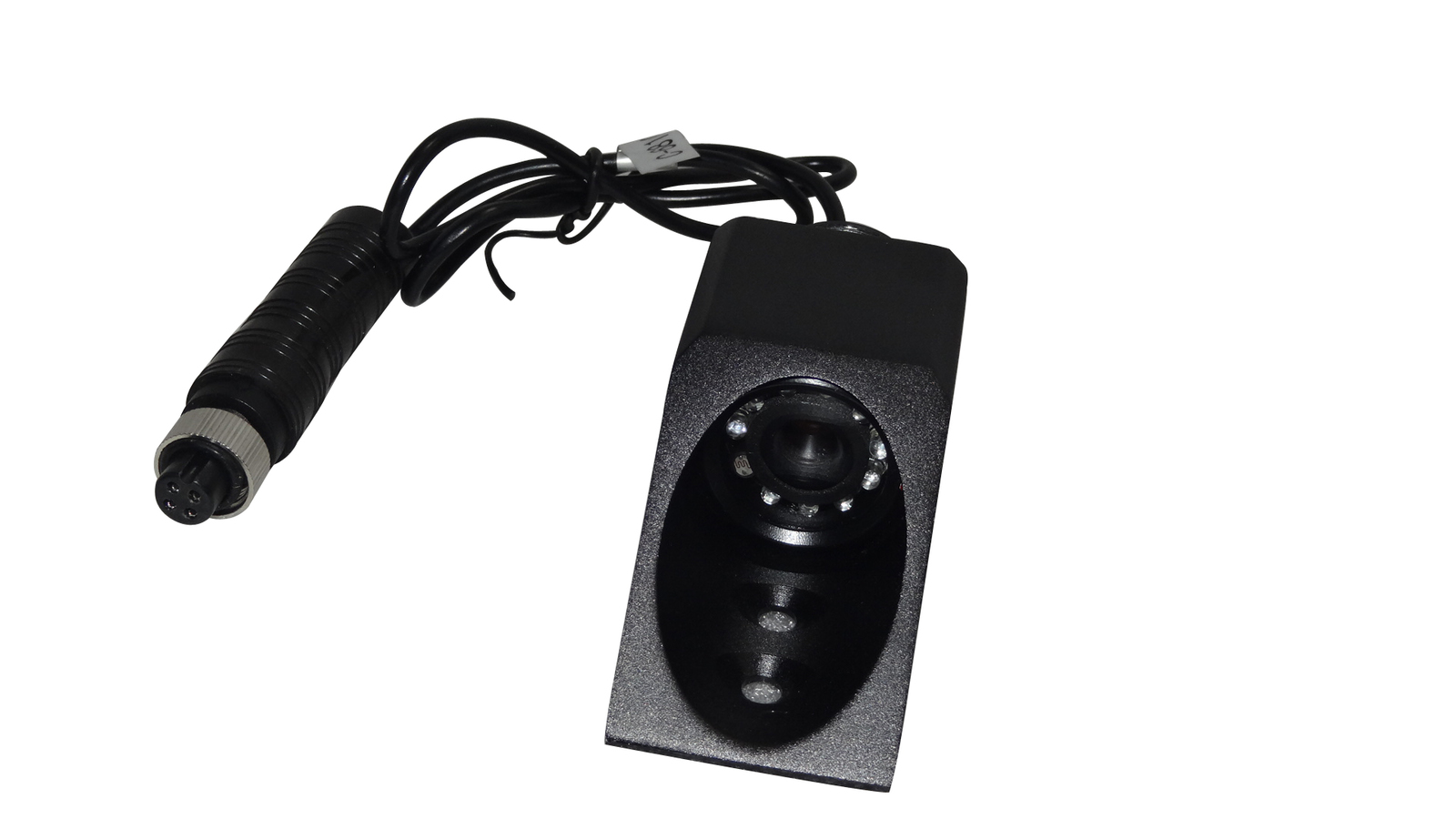

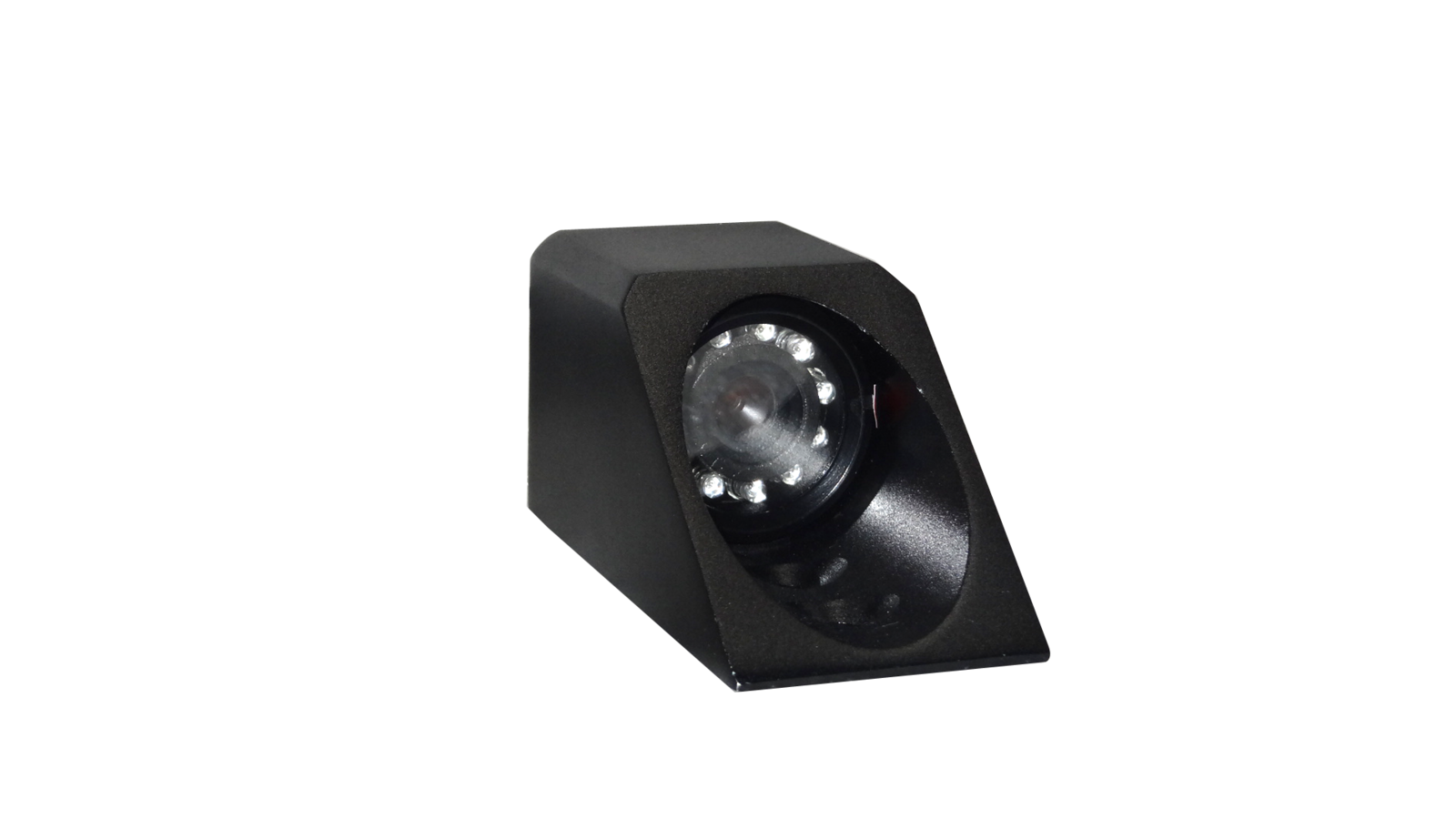

Forklift Specific Designed CCD Camera
The Camera is specially designed camera for forklifts and can provide perfect views when carrying goods.

Product Specifications - Camera

Camera Style: Heavy Duty Square with Super Night Vision
Camera Image Sensor: Masten CCD 600 TV Lines of Resolution
Camera Colour: Black
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 10 LEDs
Night Vision Distance: 10 metres (approx)
Lens Angle: 70°
Horizontal Angle: 60°
Vertical Angle: 33°
White Balance Sensor: Yes
Application: Ideal for Fork Lifts and more

Video Format: PAL

Product Features - Camera

• World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
• Durable Design available in Black
• PixelPerfect® High-Grade image sensors feature 600 TV Lines with Masten CCD Image Sensor for clear viewing in day and night (check Specs)
• Perfectly fixed viewing angle for optimum and accurate imagery
• Safer use at night with the built-in high quality infrared LED lights and long range viewing distance
• Wide range of working temperature: -20°C~70°C.
• Unique IR-CUT effectively avoids color aberration in daylight
• Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor

Product Spefications - Receiver / Transmitter

• Power Supply: DC 10-32V
• TV System: Auto (PAL/NTSC)
• Operation Frequency: 2400-2483.5MHz
• Line of Sight Range: 120M
• Video Codec: MPEG4
• Receiving Sensitivity: 89dBm
• RF Bit Rate: 4Mbps
• Spread Spectrum: FHSS
• Latency: 120mS
• Waterproof: IP66
• Operating Temperature: -20 ~ +70 degrees celsius RH90%
• Storing Temperature: -20 ~ +80 degrees celsius RH90%

Product Features - Receiver / Transmitter

• 2.4GHz Digital Wireless Signal
• Compatible with cameras and monitors with 4-pin aviation plug
• 120m Range on a Line of Sight
• Easy to Install
• Transmitting Frequency: ISM 2,400- 2,483MHz
• No interference with latest digital signal technology
• Clearest images delivered to your monitor
• Low Power Consumption
• Makes any monitor wireless in less than one minute
  • Just connect the transmitter to the camera plug and the receiver to the monitor plug. No wires needed!
  • Optional power Pack allows the camera to be powered without any wiring

Product Specifications - Battery Pack

• Waterproof rating: IP66
• Voltage: 12V
• Battery size: 2600mah
• Working time: 8 to 12 hours

Unbeatable Melbourne-Based 2-Year Warranty!
