IMPORTANT. This camera uses a Sony Image Sensor component. The quality of the image is what you would expect from Sony but without the high price tag for Sony Branded cameras. This is a Masten-branded camera.

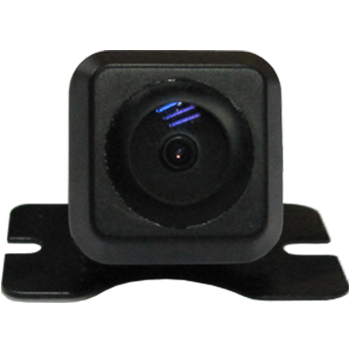

Universal Mini Square Premium CCD Camera

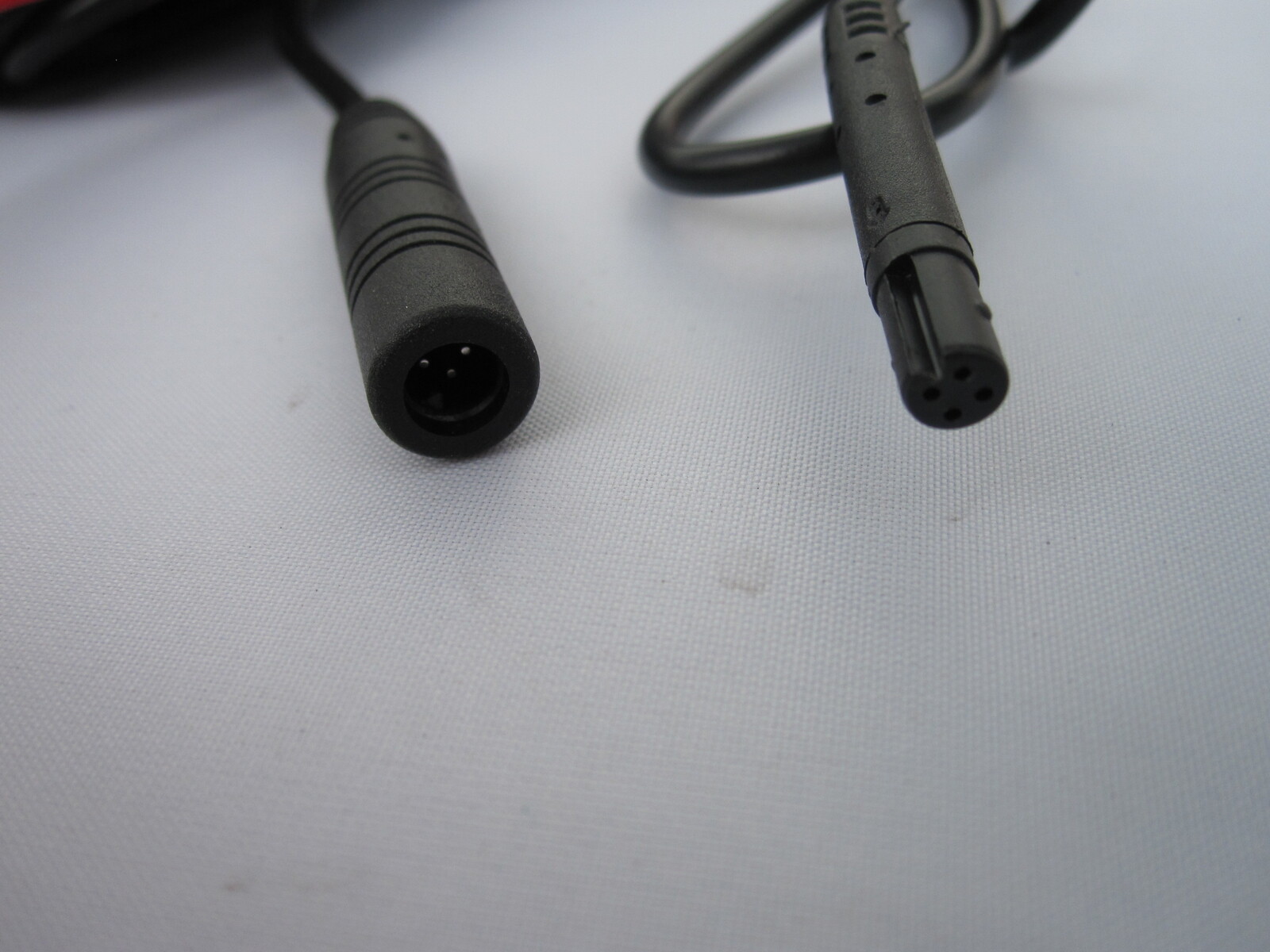

IMPORTANT: This camera has a 4-pin mini plug. Do NOT plug this camera into an existing 4-pin not supplied by us as the pin configuration may vary.

TV FORMAT: PAL

Short description

DIG Options has become the "Installer's Choice" for car audio equipment. We listen to our customers so that they keep listening to us. DIG Options provide automotive electronics, dash kits, cables, adapters, and more so you can keep your vehicle updated with the latest technology.

Cameras from DIG Options are vigorously tested in harsh Australian conditions and backed by an Australia 12-month warranty.

Description

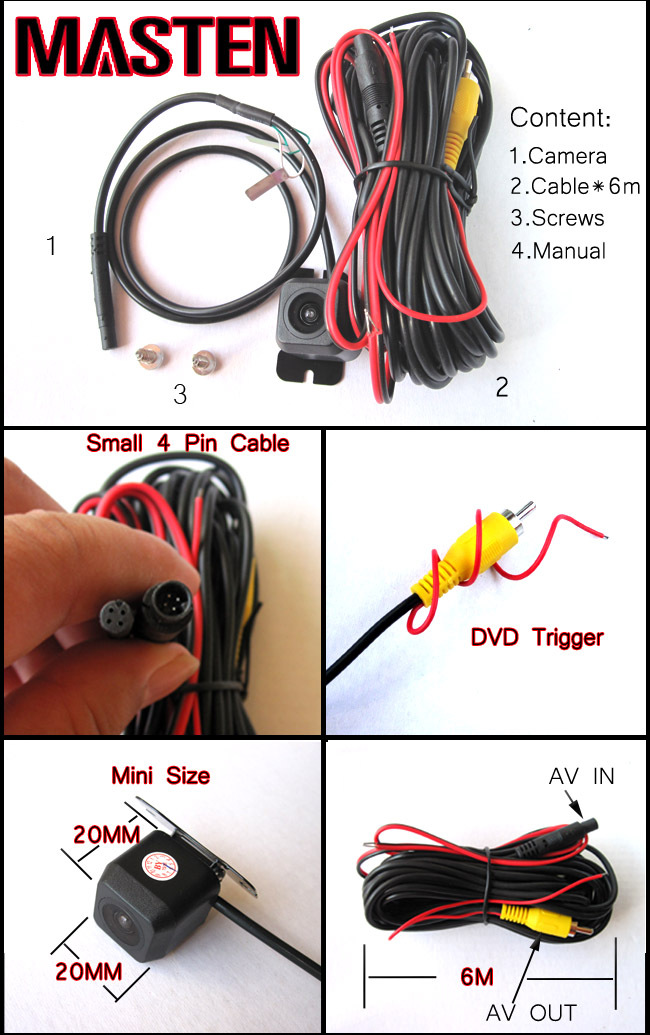

This listing includes 2 parts which are:

  • A Premium Universal CCD Camera
  • 5m Video Cable and Integrated Trigger Wire

About the Camera

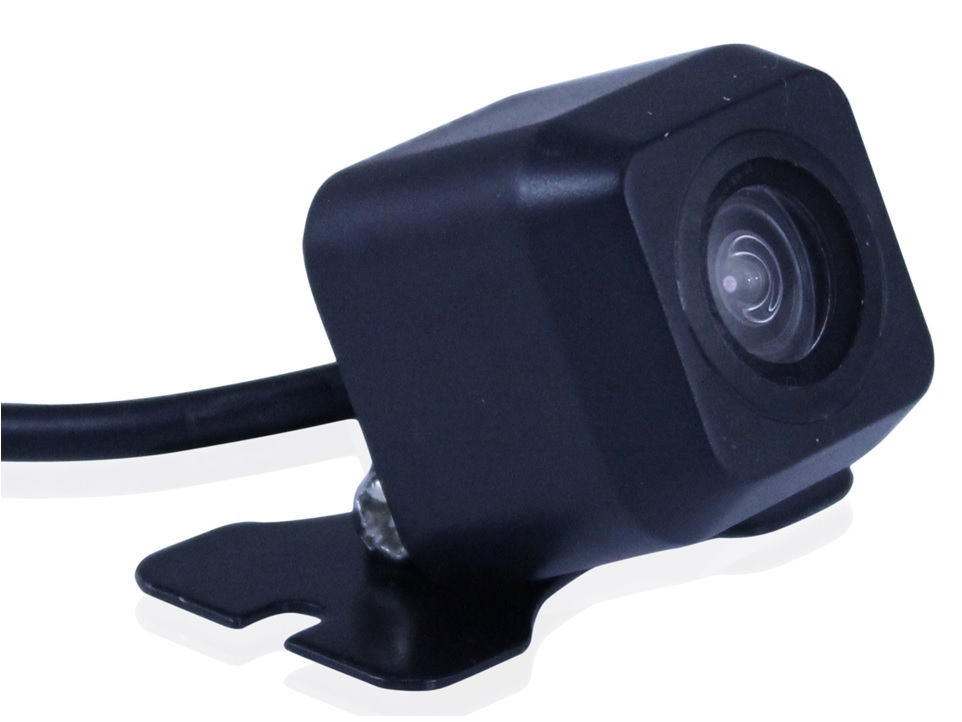

170° (vertical viewing angle) High-Resolution Mini CCD Reversing Park Camera

  • High-Resolution Colour CCD Image Sensor with crisp color display and the latest sensor technology for improved visibility
  • Best-in-Class PAL 976 (H) 576 (V) pixel Resolution
  • Dimensions W&H: 20mm x 20mm square

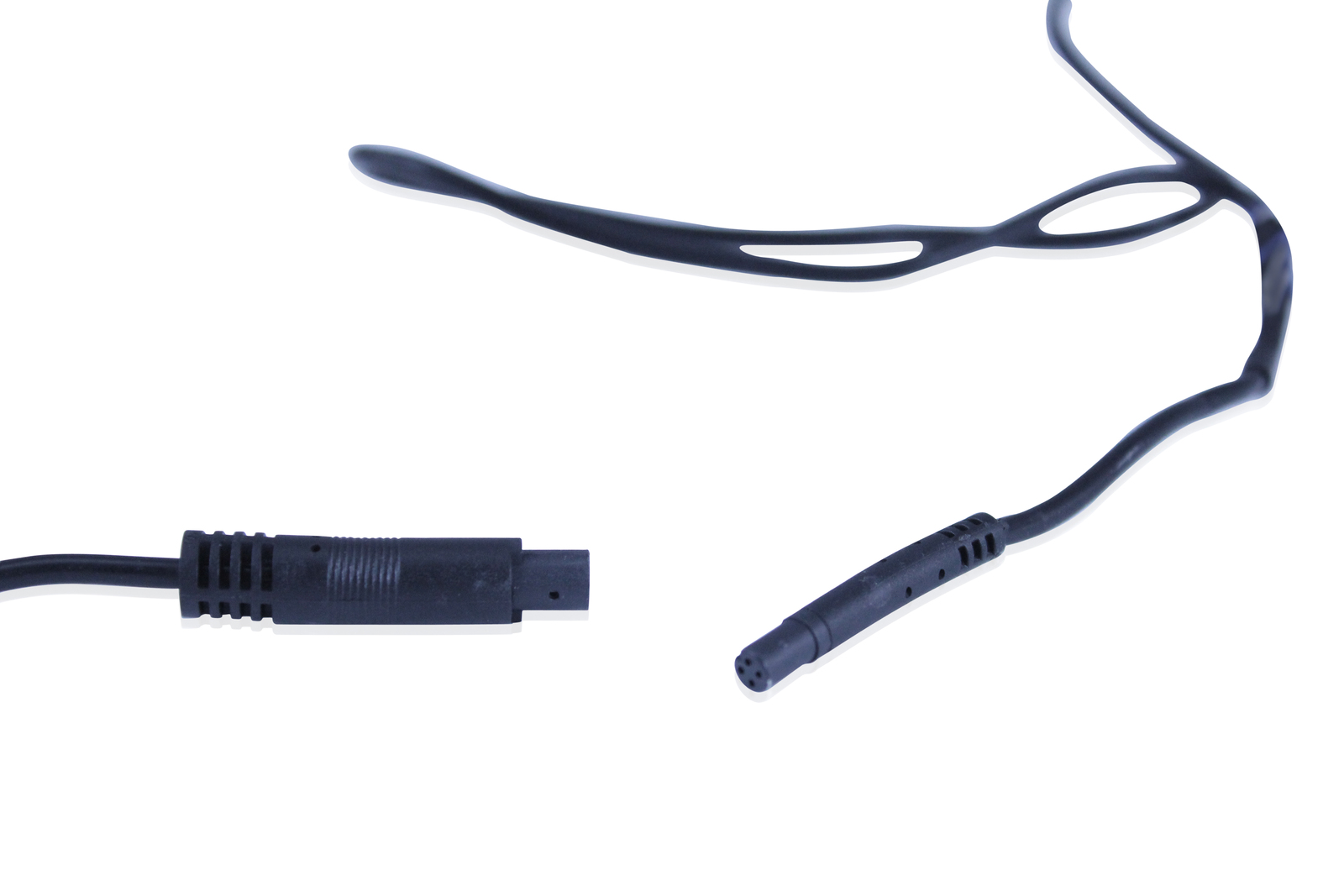

  • Special trouble-free micro 4-pin connector means you don’t need to drill huge holes and it makes the installation easier
  • High Water/Dust Proof Rating
  • Distance guidelines are built into the camera to offer approximate distance grid lines which range from safe to STOP THE CAR!
  • The 170-degree viewing range with an advanced CCD Image Sensor provides the latest technology in reverse cameras.
  • Due to the camera's low light properties, it works brilliantly at night using the light generated from your reverse lights and the camera is water-resistant.

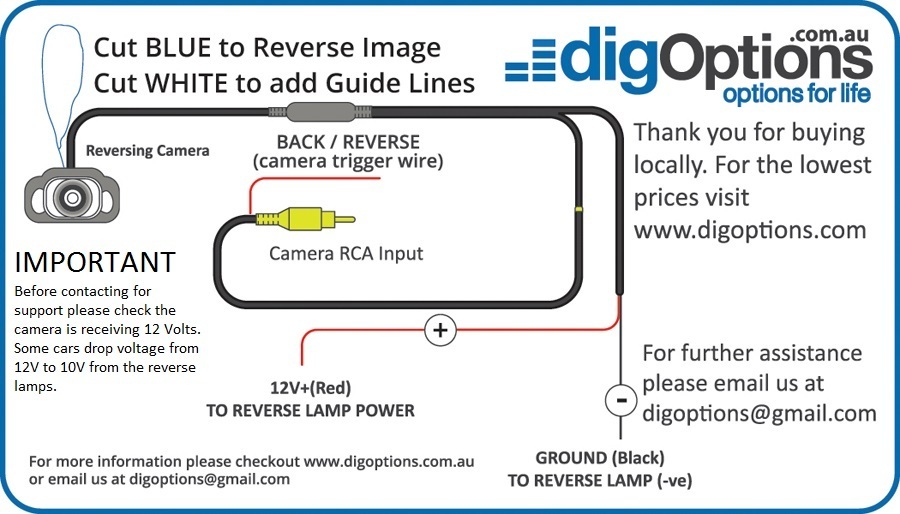

  • The camera features an RCA plug for connection to your monitor video input as well as a built-in trigger line which means you won't need to run a separate wire for the reverse power trigger input.
  • Cutting the in-built connectors allows the camera to be both a reverse camera (mirror image) or front view camera (True view)



Vehicle Compatibility

This part is suitable for all vehicles. Please note that due to this being an aftermarket accessory, some minor work may be required however, you will end up with a good result.



Looking for a Premium Navigation DVD Bluetooth IN-DASH System? Check out our store categories for a suitable solution or contact us.



Other Accessories for your Vehicle are in our store including:

  1. Plug and Play Premium Integrated Navigation DVD Bluetooth System
  2. Fascia Stereo Surround
  3. Premium Reverse Camera
  4. In-Car Entertainment Monitors
  5. Dash Removal Tools
  6. Tyre Pressure Monitor Systems
  7. Off-Road Navigation Software
  8. Home Electronics and much more



Total Pixels 976 (H) X 592（V）
Effect Pixels 900 (H) X 576 (V)
Pixel size 5.00 um X 7.40 um
Image Area 4.88 mm X 3.67 MM
Image Sensor 1/3 inch CCD
Resolution 720TV
Dark Signal 48.8[mv/sec]@60℃
Illuminance 9.67[V/Lux.sec]
Max Gain 0.5-16 Times
Datarate Both：27 MB / S
PAL ：50 MB/S
Power Supply 12V DC (3.3V  IN)
Current 3.3V/60mA,  12V/120mA
Capacity 〈350mw
Working Temperature –30°C to 80°C
Store Temperature –50°C to +105°C
S/N Ratio >45.3dB
Pixel dynamic range  > 63.2dB
IP Rating IP67
Lens Angle 130 degree （Horizontal) ; 170 degree (diagonal)
SKU RC-08
Model # RC-08
Barcode # 729436060739
Brand Masten
Shipping Weight 0.1500kg
Shipping Width 0.130m
Shipping Height 0.070m
Shipping Length 0.035m
Assembled Width 0.130m
Masten Rear or Front View Universal CCD Reverse Camera HD FullColour Night Monitor Rev RC-08 has a rating of 4/5 based on 2 reviews.

Great little reverse camera

By: on 26 August 2021
Installed today works perfectly, nice picture quality, i do recommend that we also receive a grommet with the cam for the hole we have to drill for the cable luckily I have a few but others may not.
(4)

Great camera

By: on 25 June 2021
My old camera had become very blurry so I decided to get a new one. Rang the guys at Dig and got this one. Camera arrived in a couple of days to Brisbane from Melbourne. Picture quality is now perfect and all I have been doing since installing is driving around in reverse.(haha)
(5)
