Waterproof Rating: IP69K - Sensors can be kept under 1m of water for short period of time. Ensure caps are tight before taking sensors under water - if damage occurs due to sensors not be tigthened warranty is void.

With new IP ratings, Masten's rearview cameras and tyre sensors are even more advantageous in environments requiring a high degree of protection from dust, submersion, and high-pressure, high-temperature spray-down. This level of protection is essential in many food & beverage, pharmaceutical, and petrochemical markets but also applies to off road activities namely river crossing.

Masten Motor Cycle Bike Wireless DIY TPMS Tire Pressure Monitor System 2 Sensors Tyre

The upgraded Masten TP-182 DIY motorcycle tyre pressure monitoring system (TPMS) can be easily installed within 5 minutes.

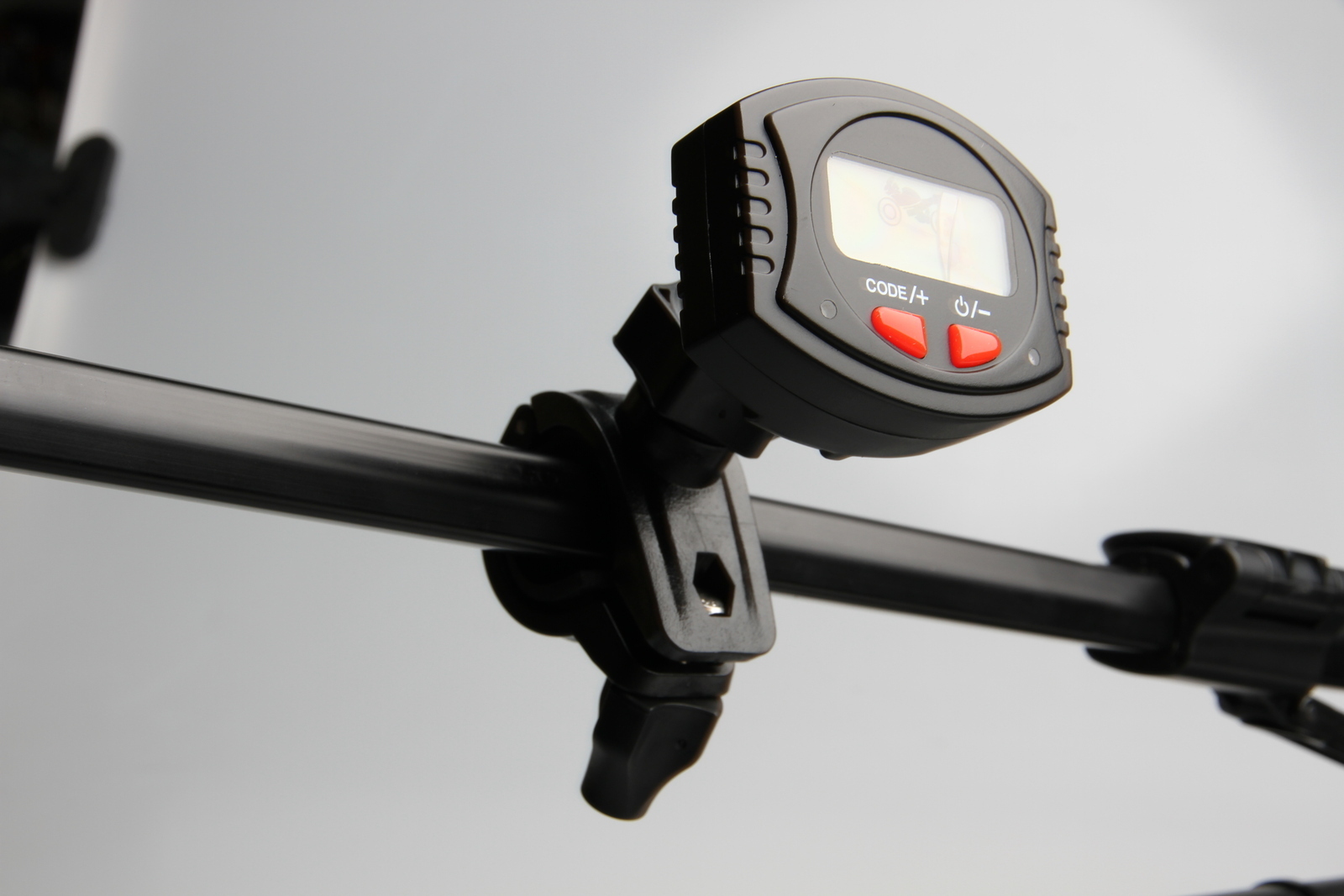

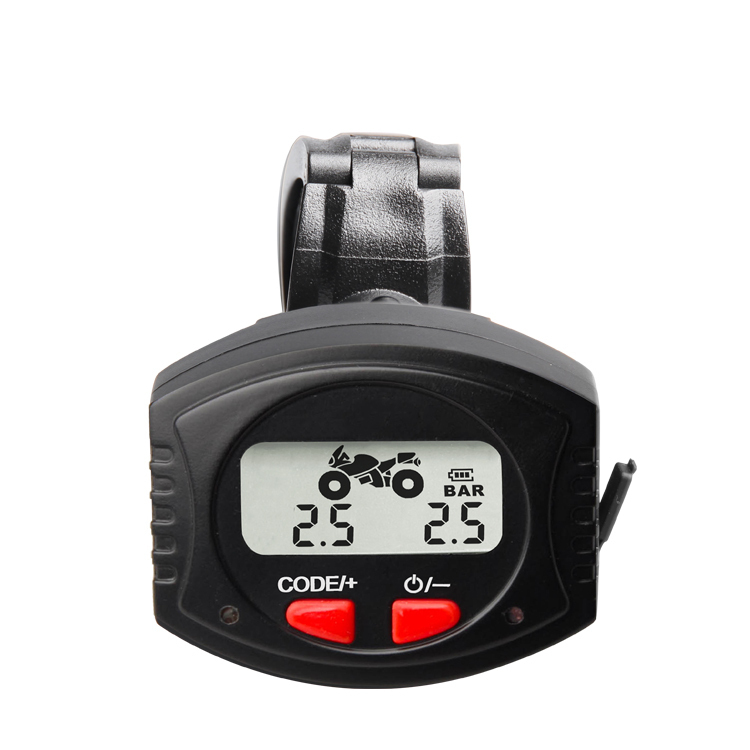

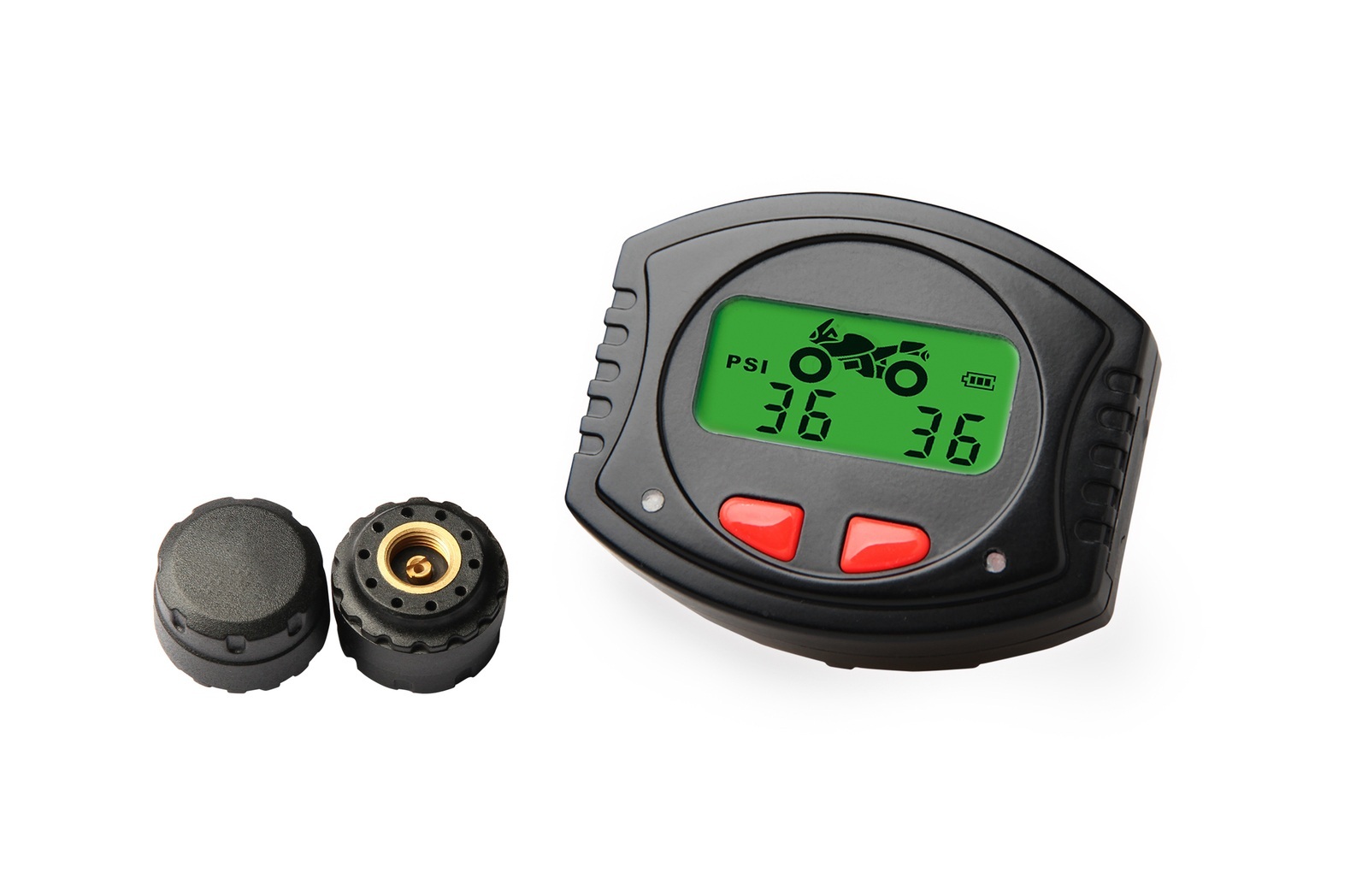

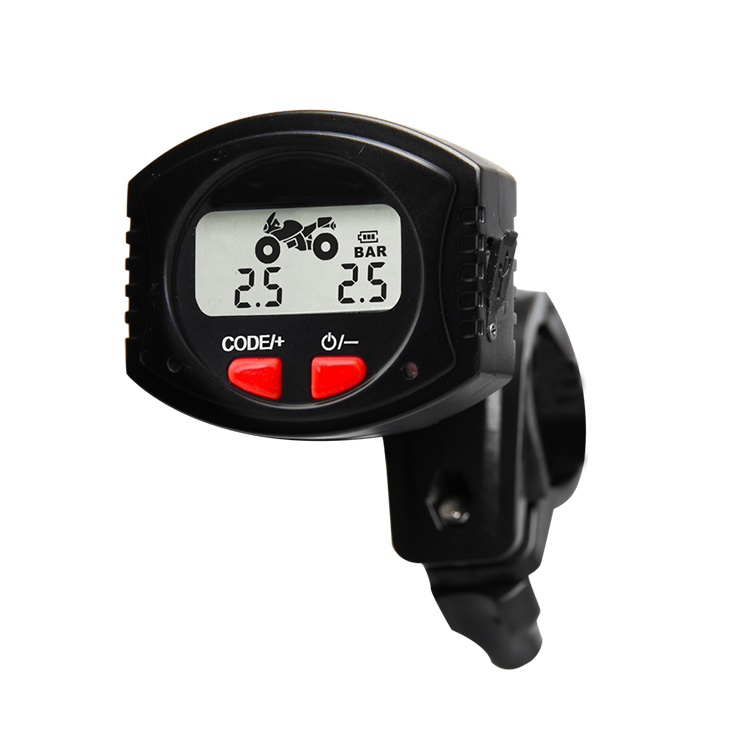

The system comes with 2 external screw-on sensors and a visual display that shows in real time the current tyre pressures of both tyres in PSI/Bar format in a front and back scrolling motion. The visual display provides audible and visual warnings when a tyre pressure drops below or raises above the recommended level. Both sensors come pre-paired to the correct wheel position and are labelled for easy installation, simply screw the sensors onto the motorcycle valve.

This Listing includes the following parts:

Universal TPMS Keyring Module x 1

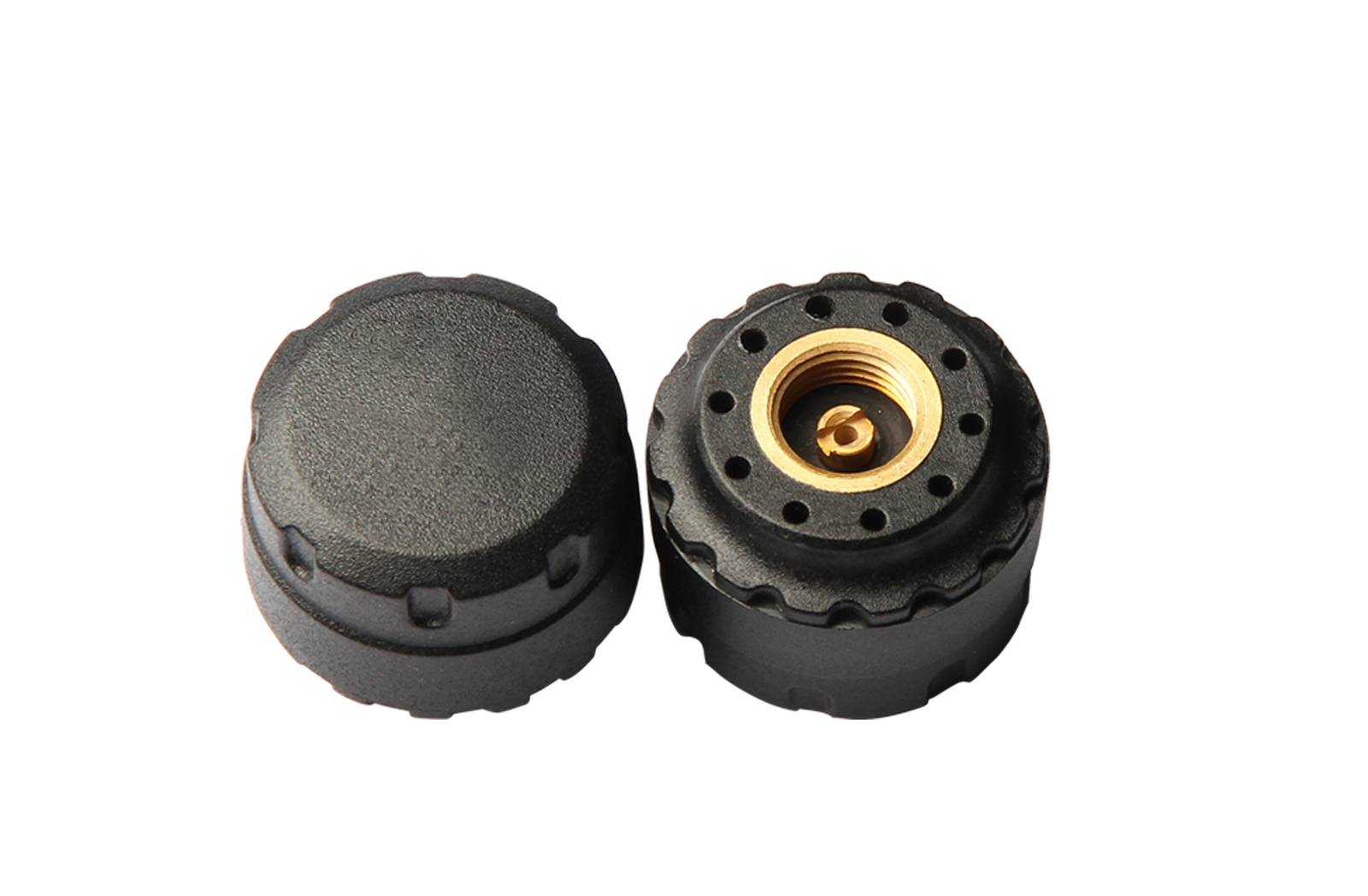

Premium External Cap Sensors x 2

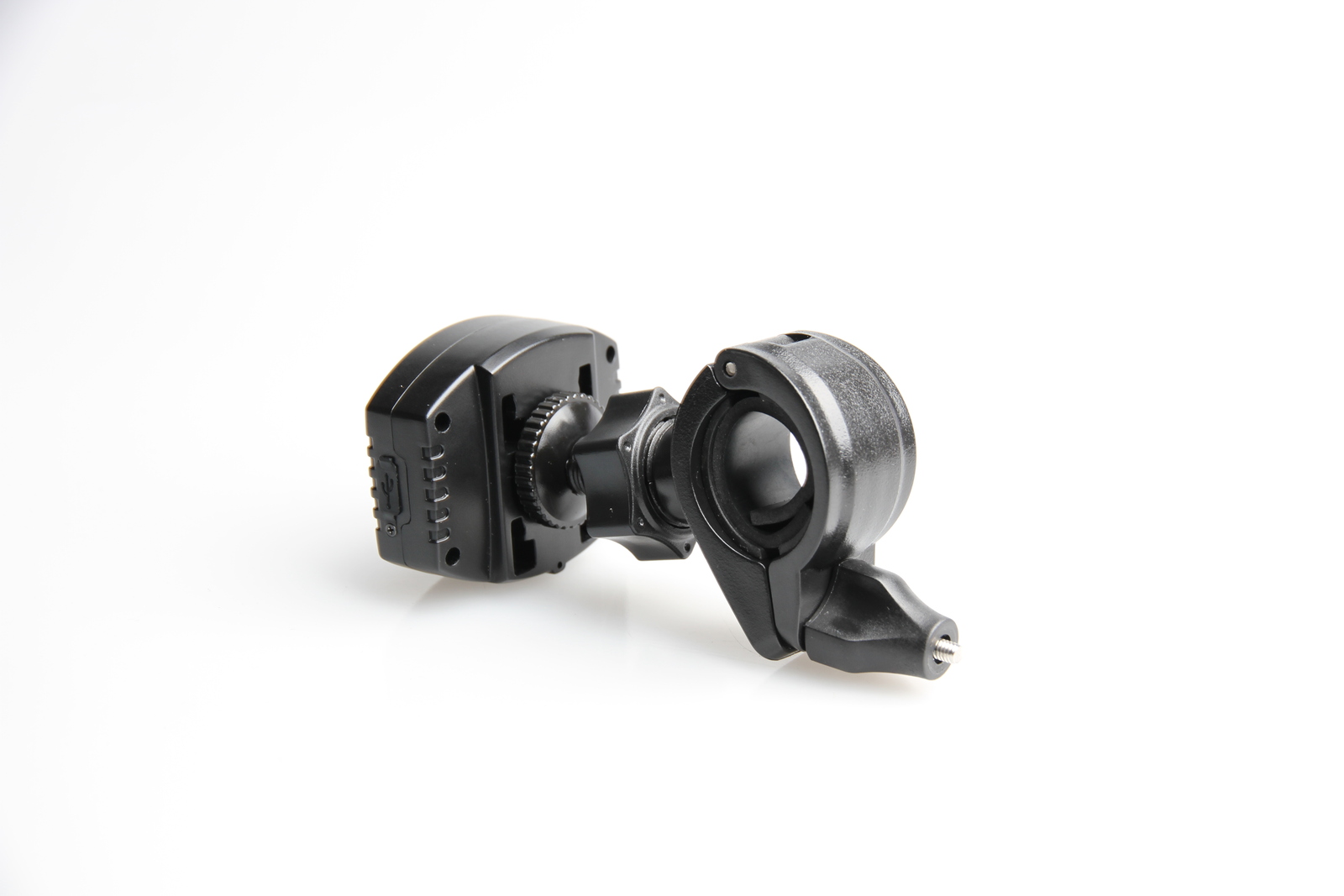

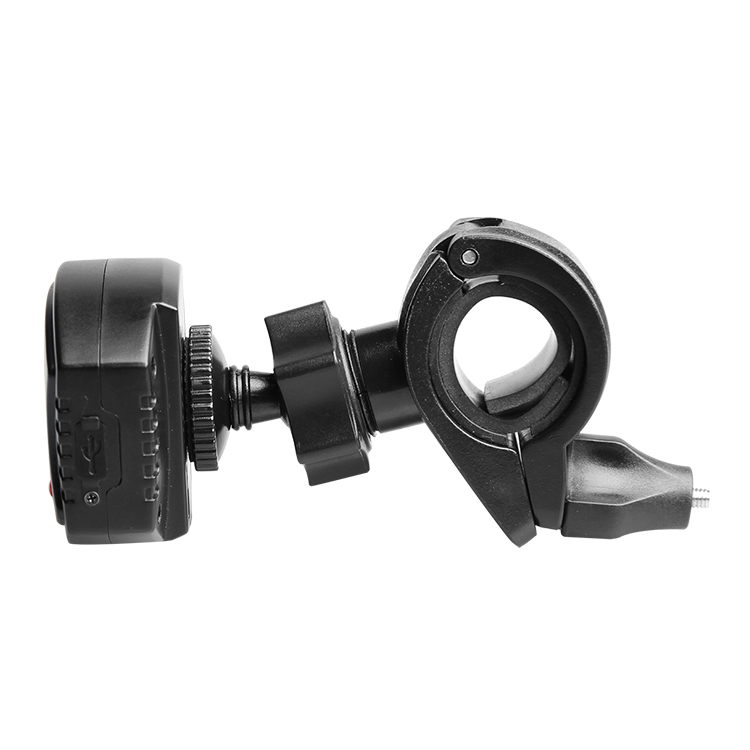

Monior Handle Mount x 1

USB Charging Cable x 1
User Manual x 1

Overview:

The Masten TP-182 TPMS Tyre Pressure Monitor System is specifically designed for Motor Cycles.

The TPMS module works without you knowing and you'll always know the critical information of your tyres. .

Feature List:

• Pressure Range: 0~87PSI (0~6 BAR) +- 1.5 PSI
• Default Pressure Range: 49 < > 29 PSI
• Easily replaceable sensor battery (CR1632)
• Waterproof and dustproof keyring display
• Tyre pressure and temperature alert range adjustable
• Choice of pressure & temperature units (PSI / Bar)
• No tyre balance needed
• Monitor the pressure/temperature of tires at a glance High quality cap sensors
• Approx 3 Year Battery Life - Easily replaceable
• User friendly programming functions

Sleep Function:

If the sensors have not been moved for 1 hour or more they will be in sleep mode. After around 5 seconds of movement the sensors will 'wake' up and start sending the tyre information data (pressure/temperature) every 6 seconds to the monitor.

User Manual

Please contact us for the usual manual if you require but it will be included with all items when sent out.

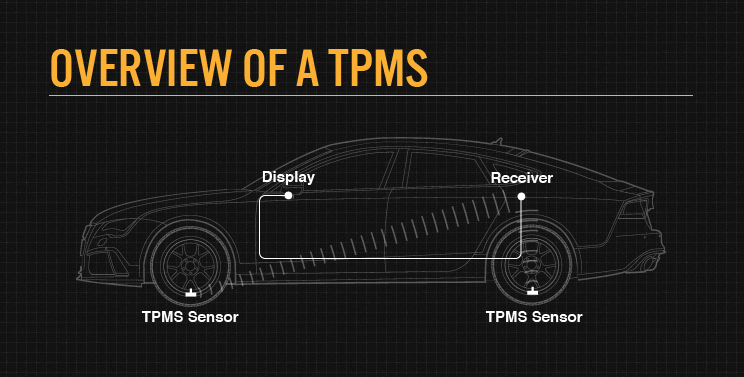

Benefits of a Masten TPMS?

The dynamic behavior of a pneumatic tire is closely connected to its inflation pressure. Key factors like braking distance and lateral stability require the inflation pressures to be adjusted and kept as specified by the vehicle manufacturer. Extreme under-inflation can even lead to thermal and mechanical overload caused by overheating and subsequent, sudden destruction of the tire itself. Additionally, fuel efficiency and tire wear are severely affected by under-inflation. Tires do not only leak air if punctured, they also leak air naturally, and over a year, even a typical new, properly mounted tire can lose from 20 to 60 kPa (3 to 9 psi), roughly 10% or even more of its initial pressure.

The significant advantages of TPMS are summarized as follows:

Fuel savings: According to the GITI, for every 10% of under-inflation on each tire on a vehicle, a 1% reduction in fuel economy will occur. In the United States alone, the Department of Transportation estimates that under inflated tires waste 2 billion US gallons (7,600,000 m3) of fuel each year.

Extended tire life: Under inflated tires are the #1 cause of tire failure and contribute to tire disintegration, heat buildup, ply separation and sidewall/casing breakdowns. Further, a difference of 10 lbs. in pressure on a set of duals literally drags the lower pressured tire 13 feet per mile. Moreover, running a tire even briefly on inadequate pressure breaks down the casing and prevents the ability to retread. It is important to note that not all sudden tire failures are caused by under-inflation. Structural damages caused, for example, by hitting sharp curbs or potholes, can also lead to sudden tire failures, even a certain time after the damaging incident. These cannot be proactively detected by any TPMS.

Decreased downtime and maintenance: Under-inflated tires lead to costly hours of downtime and maintenance.

Improved safety: Under-inflated tires lead to tread separation and tire failure, resulting in 40,000 accidents, 33,000 injuries and over 650 deaths per year. Further, tires properly inflated add greater stability, handling and braking efficiencies and provide greater safety for the driver, the vehicle, the loads and others on the road.

Environmental efficiency: Under-inflated tires, as estimated by the Department of Transportation, release over 57.5 billion pounds of unnecessary carbon-monoxide pollutants into the atmosphere each year in the United States alone.
