Suitable for Masten TP-09, TP-10, TP-19 AND TP-20

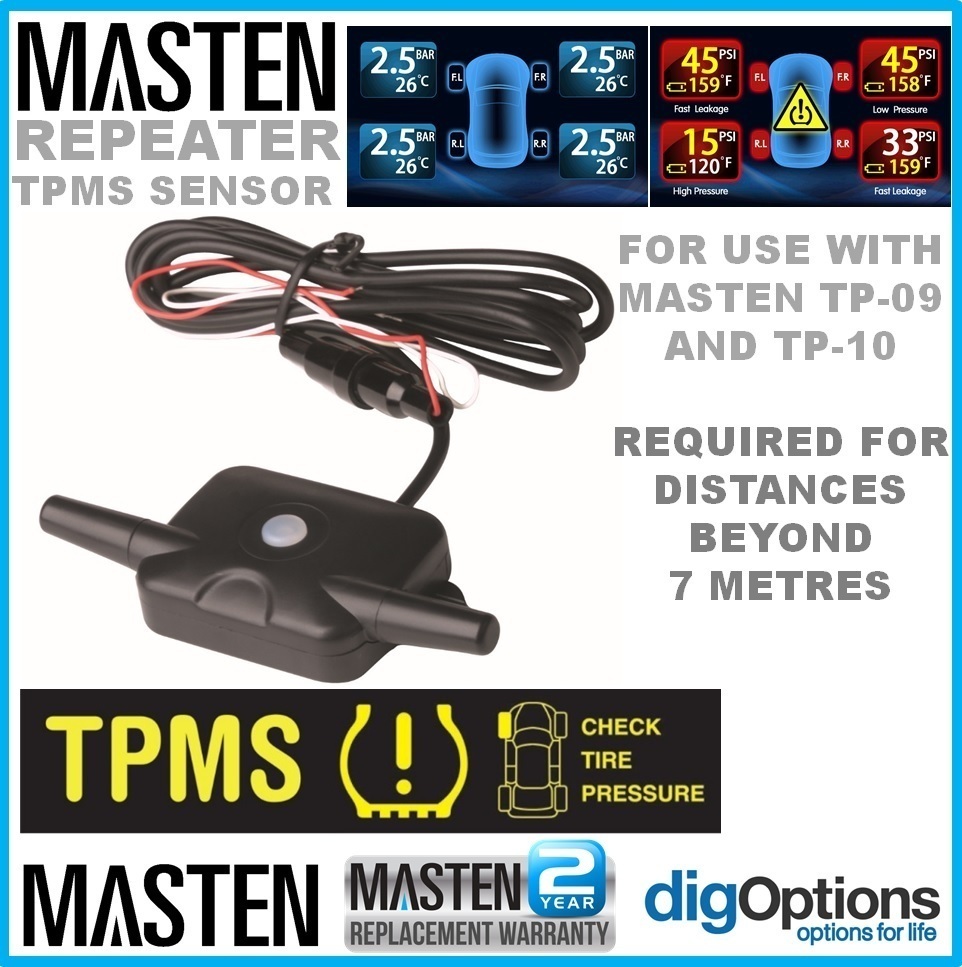

The Masten TP-09REP is perfect for long vehicles such as caravans, buses or HGVs with trailers.

A smart relay is recommended to increase the data transmission range from the sensors in the rear tyres. It is normally only required where the distance from the rear wheels to the monitor is more than 7 metres. In this application, it acts as a simple signal booster.

In fleets where trailers are regularly exchanged, the relay is used in smart mode to simplify exchanging trailers. One is fitted to each trailer, where it stores the trailer’s ID and tyre alert settings. When a trailer is connected, pushing a button on the relay sets up a data connection with the monitor in the cab.

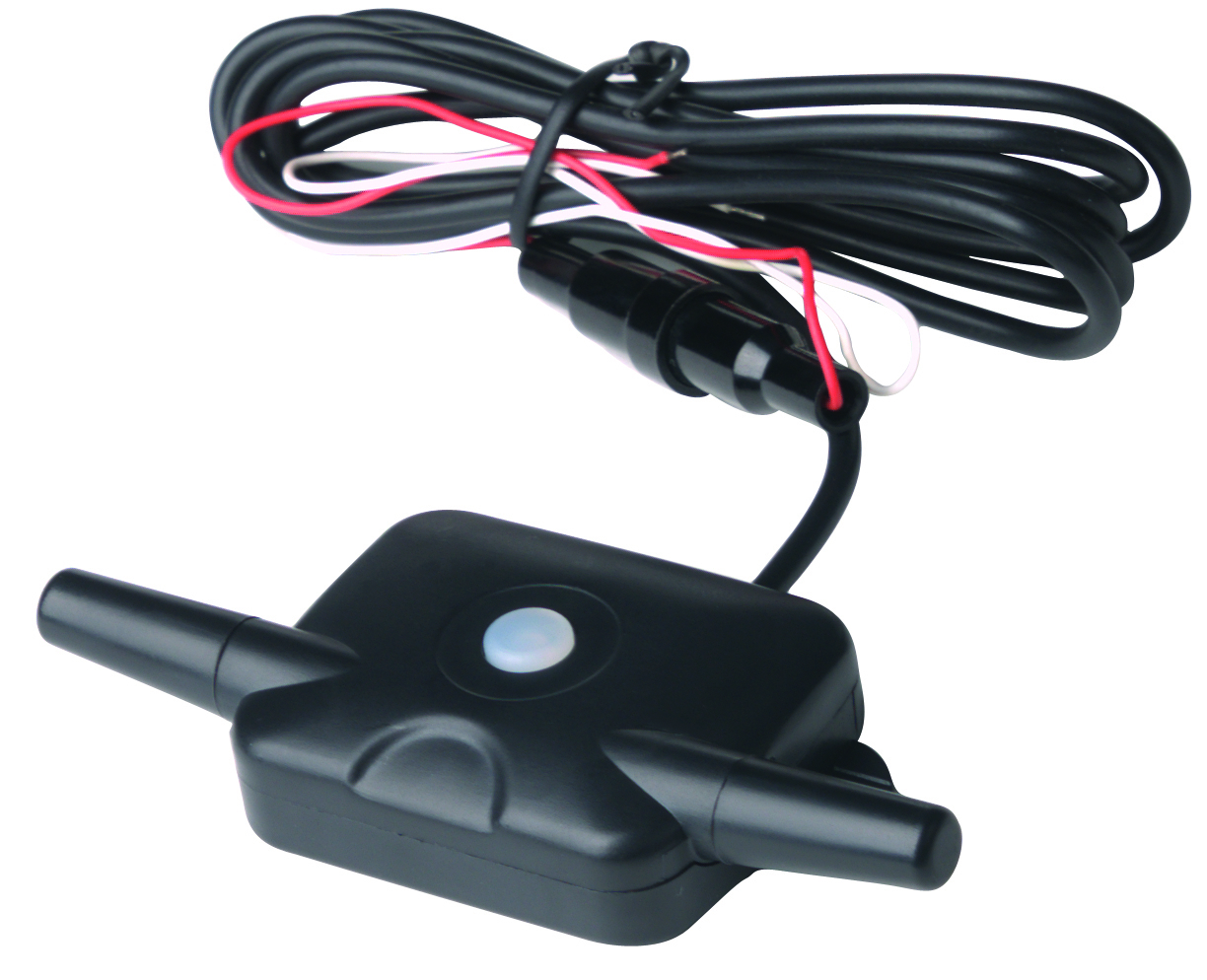

The smart relay operates from the 12 to 24V vehicle power supply and is supplied with a fuse-protected connecting lead.

Features:

1. Ensure the stability of receiving signals from sensors when a signal is weak.
2. Record the sensor’s ID, pressure and temperature limits of the wheels in the trailer and trailer ID.
3. Support truck and trailer exchange.
4. Data of sensors in the trailer is transferable between the monitor and trailer exchanger.
5. Visible and audible alert for high pressure, low pressure, high temperature and fast leakage.

Remark:

1. Operation as a signal repeater:

The transceiver requires no programming to operate as a signal repeater. The red light stays on while power is connected and flashes while data is being transmitted or received.

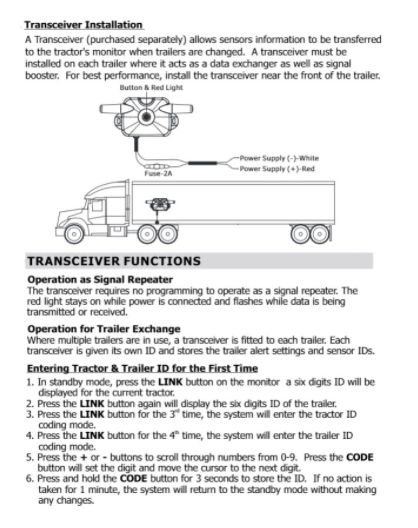

2. Operation for trailer exchange:

Where multiple trailers are in use, a transceiver is fitted to each trailer. Each transceiver is given its own ID and stores the trailer alert settings and sensor IDs.

Installation Instructions:

Included in the box and available upon request.

Sleep Function:

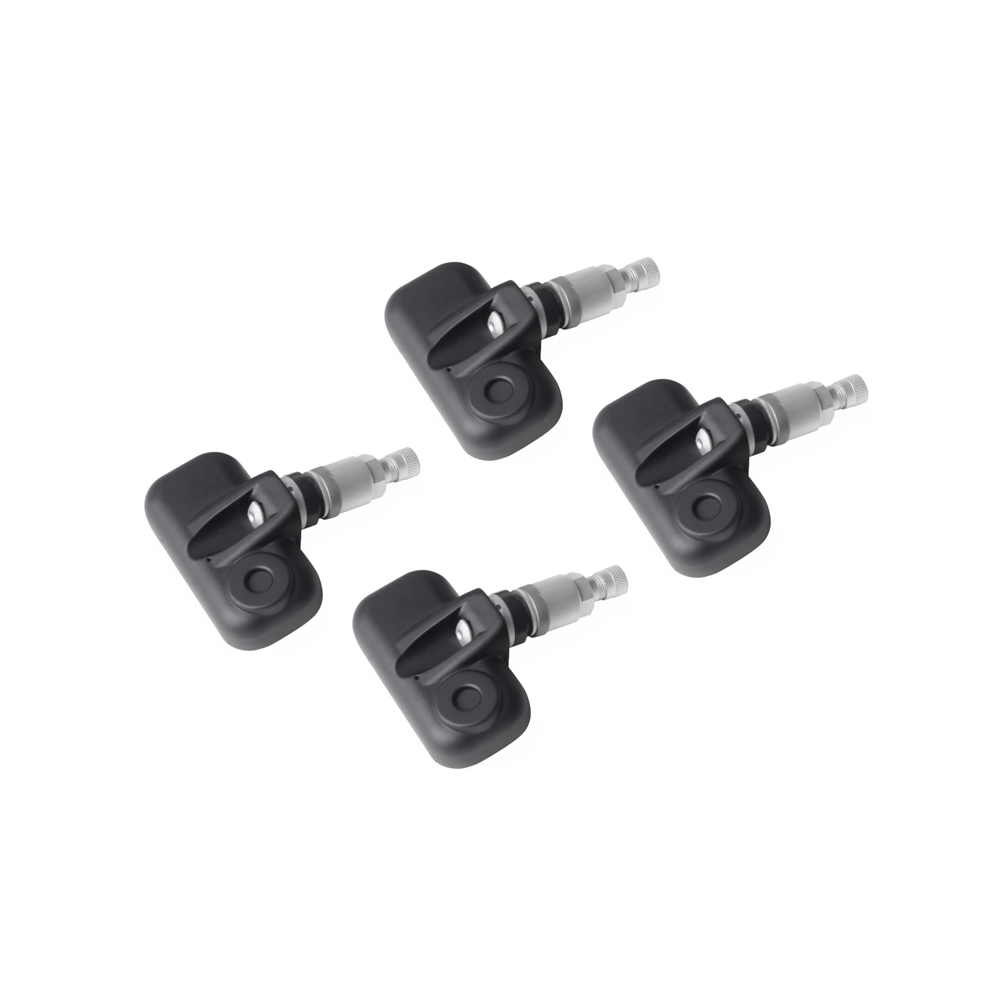

If the sensors have not been moved for 1 hour or more they will be in sleep mode. After around 5 seconds of movement, the sensors will 'wake' up and start sending the tyre information data (pressure/temperature) every 6 seconds to the monitor.
