TR-One Universal Fully Adjustable Direct Fit Wheel Deck

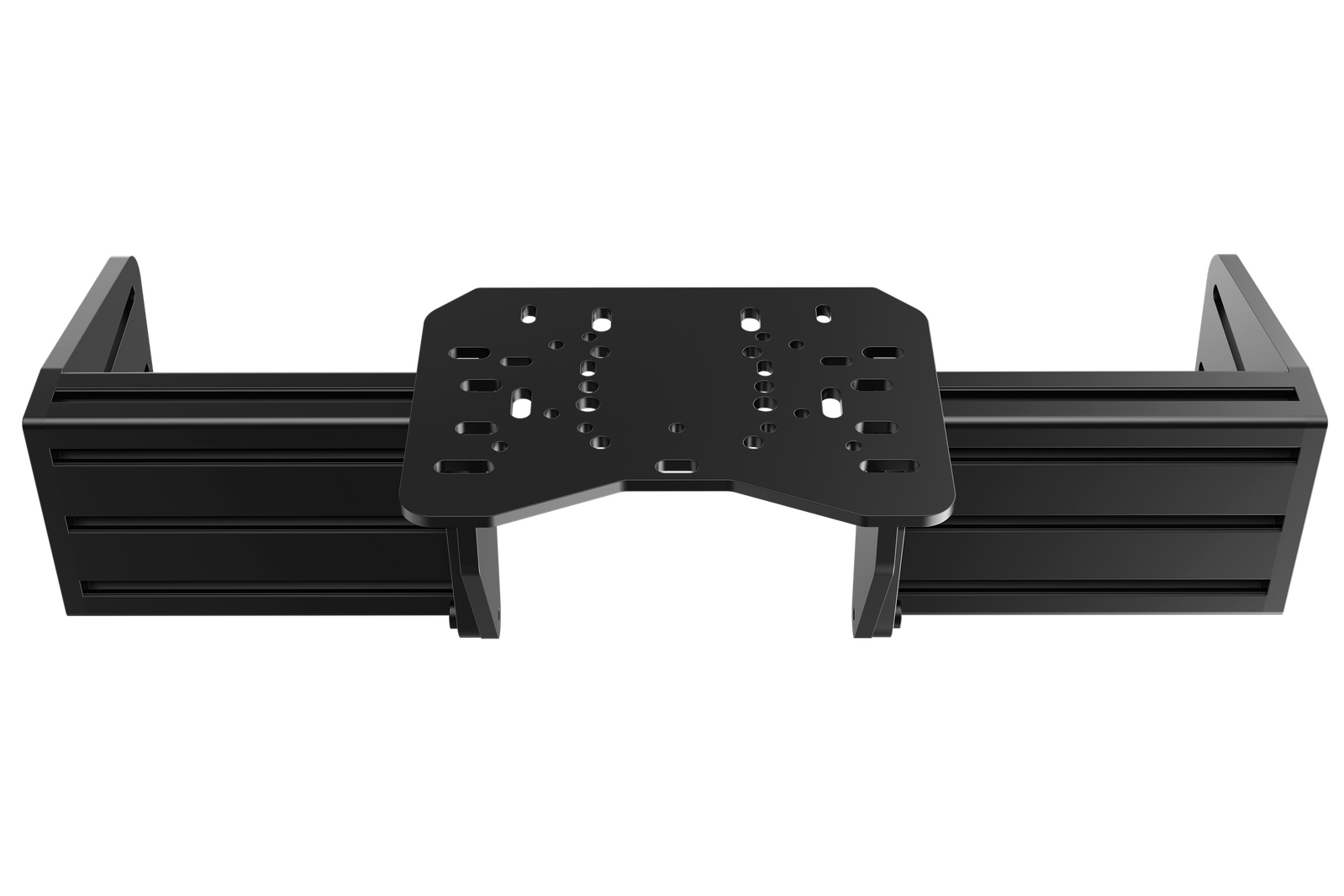

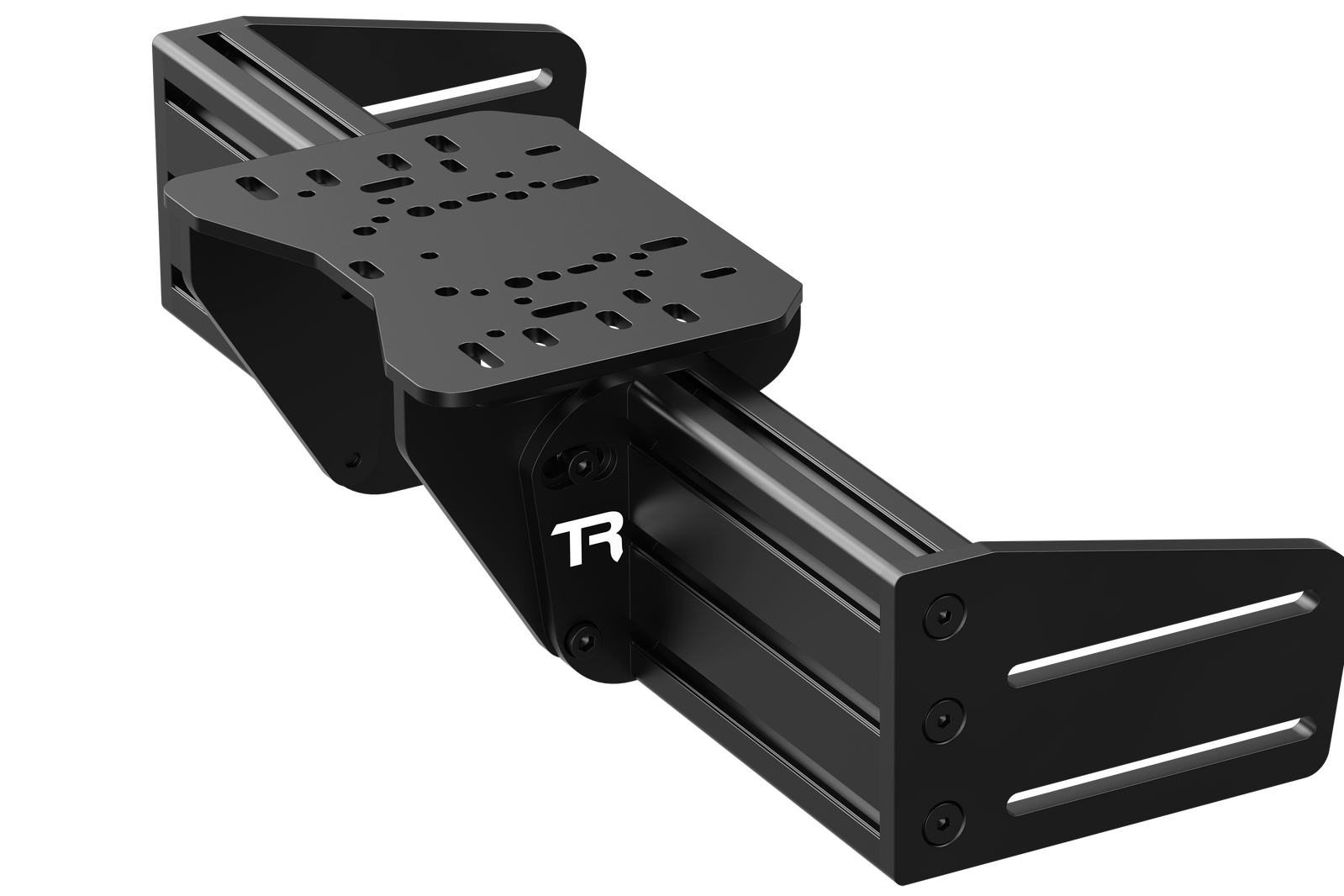

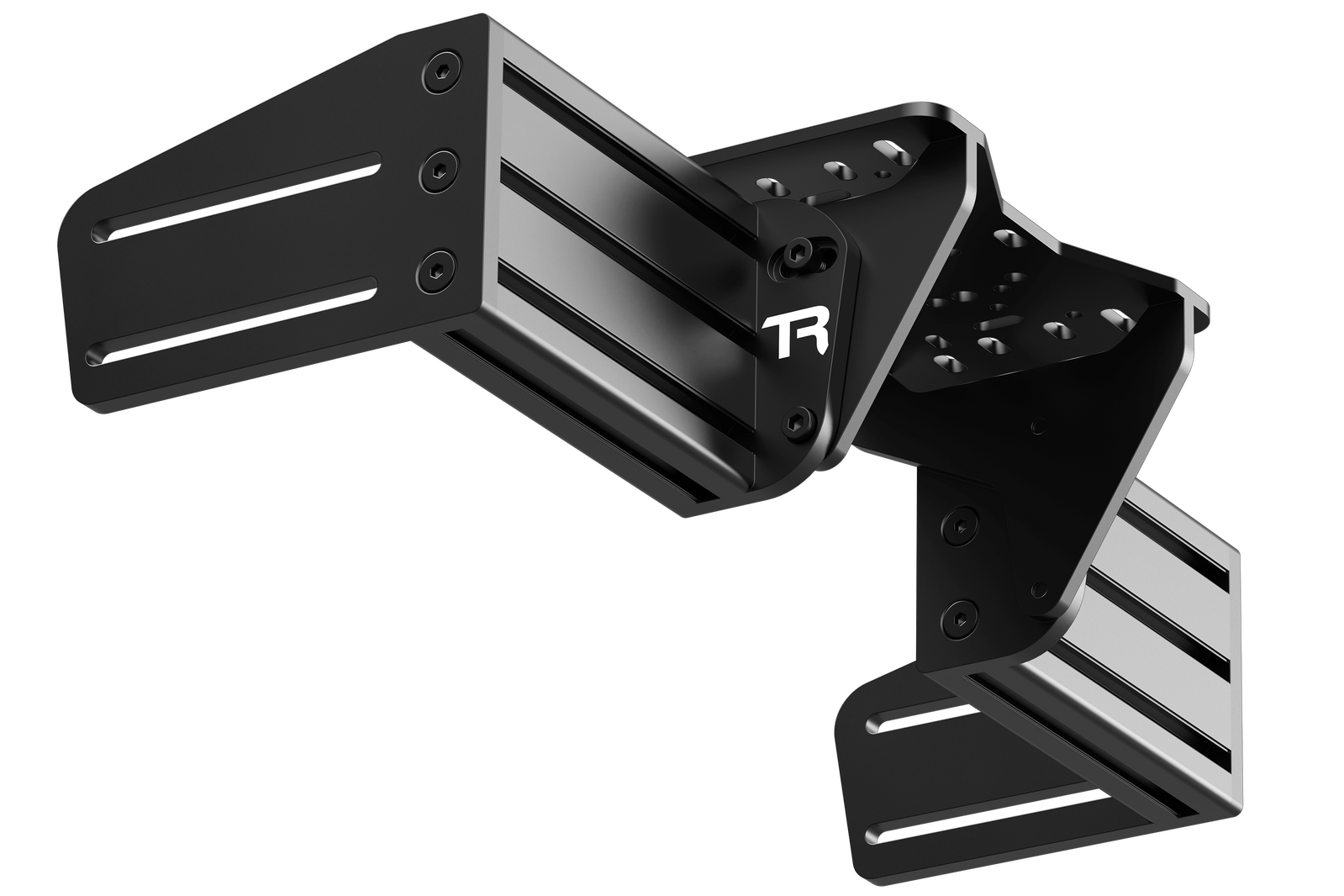

About the TR One Wheel Mounting System
The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheelbase you mount. The base structure is made of thick-walled extruded aluminum and the plates are meticulously crafted from high-quality aluminum and then anodized.

The design of the aluminum plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Black Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backward fine-tuning - to get a perfect position!

Angle Adjustment: Fully Adjustable Mount with up to 12° degree tilt angle PLUS greater angle adjustments of the outer plates

Material: Anodised Black Aluminium Plates, Extruded Aluminium Profile, and Carbon Steel

Rig Compatibility: This part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds.

Not Compatible with Trak Racer TR80-LITE due to the wheel uprights only being 660mm/26" tall (compared to 780mm/30.7" on the TR80, TR120, and TR160).

Full Mount Width (including 120 x 40mm profile): 580mm/22.83"

Compatible Wheel Bases:

• Thrustmaster T500, T300, T150, TC-PS, TS-XW, TX, 248, T-GT, T80, TMX and T-GT II
• Logitech G25, G27, G29, G920, G923, Logitech G Pro
• Fanatec Elite, Clubsport, CSL Elite
• Fanatec Podium DD1/DD2, CSL DD and Fanatec GT DD Pro (base or side mounted)
• AccuForce V1/V2
• SIMAGIC M10
• Moza R5, R9, R16, R21 DD Wheel Bases

  Other Wheel Bases - may require mounting bracket (Trak Racer Direct Drive Mount recommended)
• MiGe 130ST(small and big) - additional mount required
• Bodnar 53 series - additional mount required
• Simucube SC1 / SC2 Sport, Pro, Ultimate - additional mount required
• SIMAGIC ALPHA / ALPHA Mini - additional mount required

  Also, Flight/Heavy Equipment
• Logitech Flight Yoke System (by clamp)
• Logitech Flight Switch/Multi/Instrument Panels
• Logitech Heavy Equipment
• Turtle Beach Velocity One Flight

Contact us if your wheel is not listed
