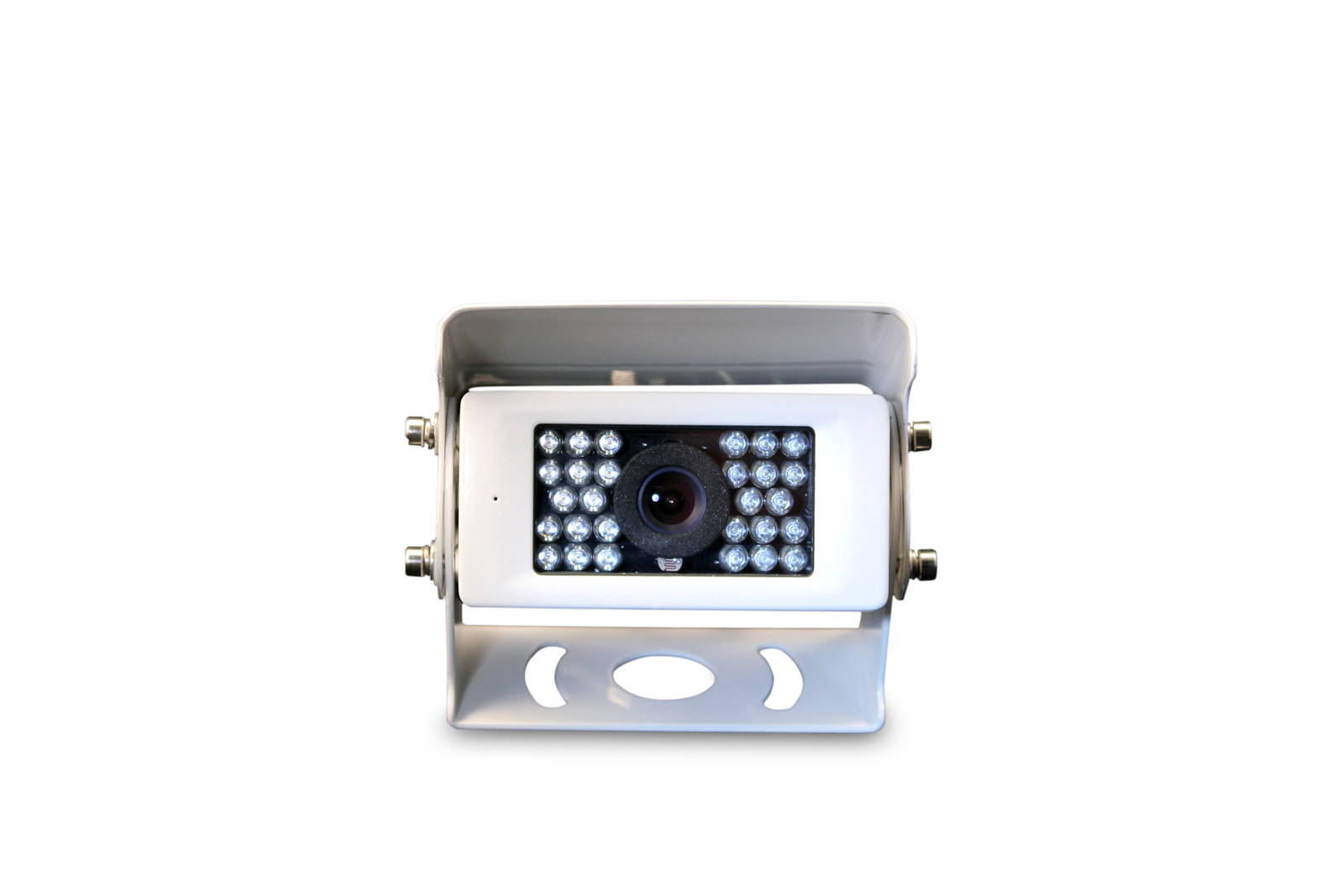

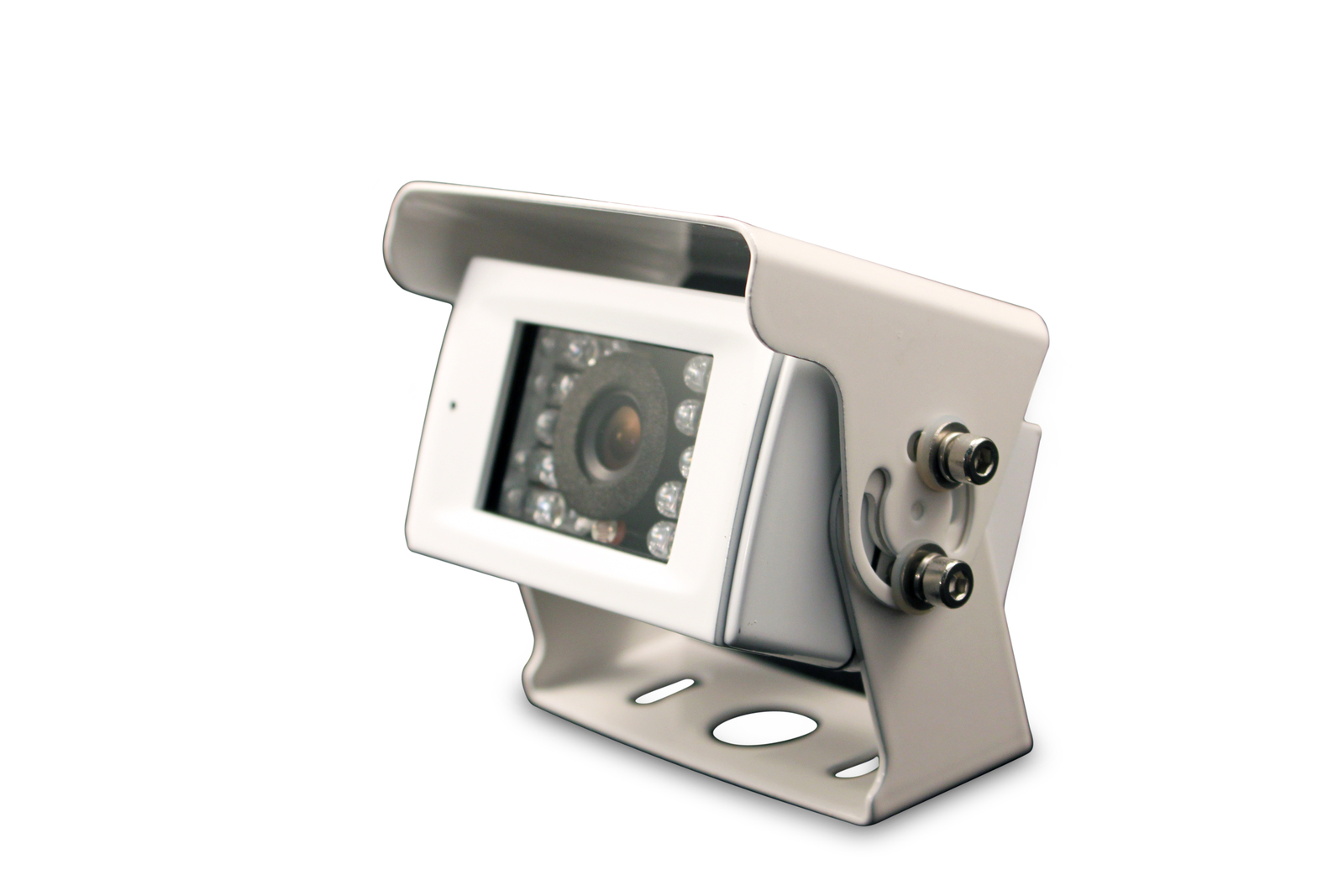

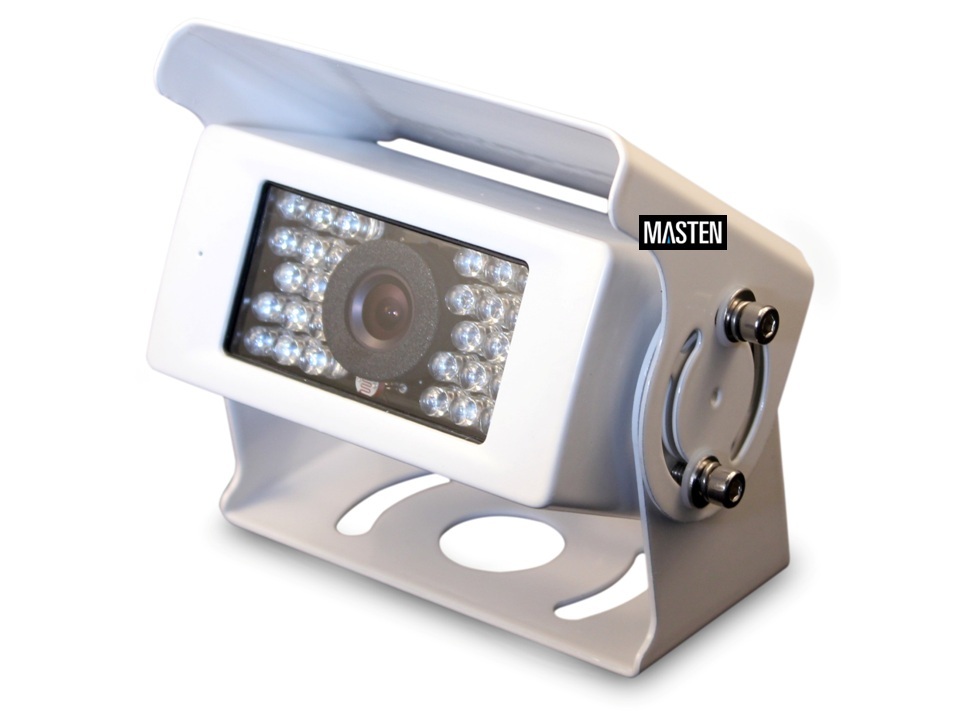

Truck Van Car Reversing Sony CCD Camera 700TVL HD Rear View 28 IR Caravan Night Vision RC-HD08-W
Item Number: RC-HD08-W
Sold Out
The Masten Lineup of High Definition Automotive Cameras - Unmatched Workmanship and Quality, backed by a Two Year Replacement Warranty - Suitable for Commercial, Private, Agricultural, Boating, and Industrial Usage
Have Questions? Contact Us Here
Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2 year Replacement Warranty.
Product Description
Camera Style: Heavy Duty Square with Super Night Vision
Camera Image Sensor: Sony 1/4 CCD 700 TV Lines of Resolution
Camera Colour: White
Waterproof Rating Certification: IP69K
Infrared Night Vision LED Lights: Yes - 28 LEDs
Night Vision Distance: 20 metres
Viewing Angle: 120°
White Balance Sensor: Yes
Application: Ideal for Horse Floats, Air Seeders, Caravans, Trucks, Mining, Farming and more
Video Format: PAL
- World-class and Certified Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
- Stylish Design available in White or Black
- PixelPerfect® High-Grade image sensors feature 420 TV Lines with Masten CMOS Image Sensor or massive 700 TV Lines with Sony® 1/4 CCD Sensor for clear viewing in day and night (check Specs)
- Perfectly adjusted viewing angle for safer reversing and more accurate imagery
- Safer driving at night with the built-in high quality infrared LED lights and long range viewing distance
- Wide working temperature of Working temperature: -20°C~70°C.
- Unique IR-CUT effectively avoids color aberration in daylight
- Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
- Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more
Unbeatable Melbourne-Based 2-Year Warranty!
Understanding reverse cameras
The difference between CMOS cameras and CCD cameras can be likened to the difference between analogue and digital. CCD cameras deliver a sharper picture with more image lines and delivers clearer night vision in extremely low light conditions.
Although a super wide viewing angle such as 180° is appealing, it should be noted that a wider angle distorts the image and provides insufficient depth of field. For safer and optimum performance 92°-120° should only be considered.
Copyright® DIG Options 2015
| Critical Specifications | ||
| Description: |
Premium CMOS Heavy Duty Camera with Super Night Vision Also Available |
Premium CCD Heavy Duty Camera with Super Night Vision
|
| Image Device: | CMOS | 1/4 SONY CCD |
| Resolution: | 420TV lines | 700TV lines |
| Lens: | 2.5mm | 2.5mm |
| Lens Angle: | 120 Degrees | 120 Degrees |
| Infrared LED light: | 28 LEDs | 28 LEDs |
| IR Distance: | 20m | 20m |
| Waterproof Rating: | IP69K | IP69K |
| Technical Specifications | ||
| TV System: | PAL/ NTSC | PAL/ NTSC |
| Manual Mirror Image Switch | No | No. Please check our camera RC-HD12 |
| Effective Pixels: | 512 x 582 pixels / 512 x 492 pixels | 512 x 582 pixels / 512 x 492 pixels |
| Sensing Area: | 3.6mm x 2.7mm | 3.6mm x 2.7mm |
| Scanning System: | 2:1 Interlace | 2:1 Interlace |
| Sync. System: | Internal | Internal |
| Horizontal Sync. Frequency: | 15.625 KHz / 15.734KHz | 15.625 KHz / 15.734KHz |
| Vertical Sync. Frequency: | 50Hz / 60Hz | 50Hz / 60Hz |
| Minimum Illumination: | 0Lux (Infrared lamps on) | 0Lux (Infrared lamps on) |
| 0 .1Lux(day) / F1.2 | 0 .1Lux(day) / F1.2 | |
| Video Output: | 1.0vp-p, 75Ohm | 1.0vp-p, 75Ohm |
| Gamma Consumption: | 0.45 | 0.45 |
| AGC: | Auto | Auto |
| S/N Ratio: | Better than 48dB | Better than 48dB |
| White Balance: | Auto | Auto |
| Electronic Shutter: | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds |
| BLC: | Auto | Auto |
| Shell material: | Aluminum alloy | Aluminum alloy |
| Current Consumption: | Max. 180mA | Max. 180mA |
| Power Supply: | DC12V | DC12V |
| Operating Temperature: | -20°C~70°C , RH95％ MAX | -20°C~70°C , RH95％ MAX |
| Storage Temperature: | -40°C~80°C，RH95％ MAX | -40°C~80°C，RH95％ MAX |

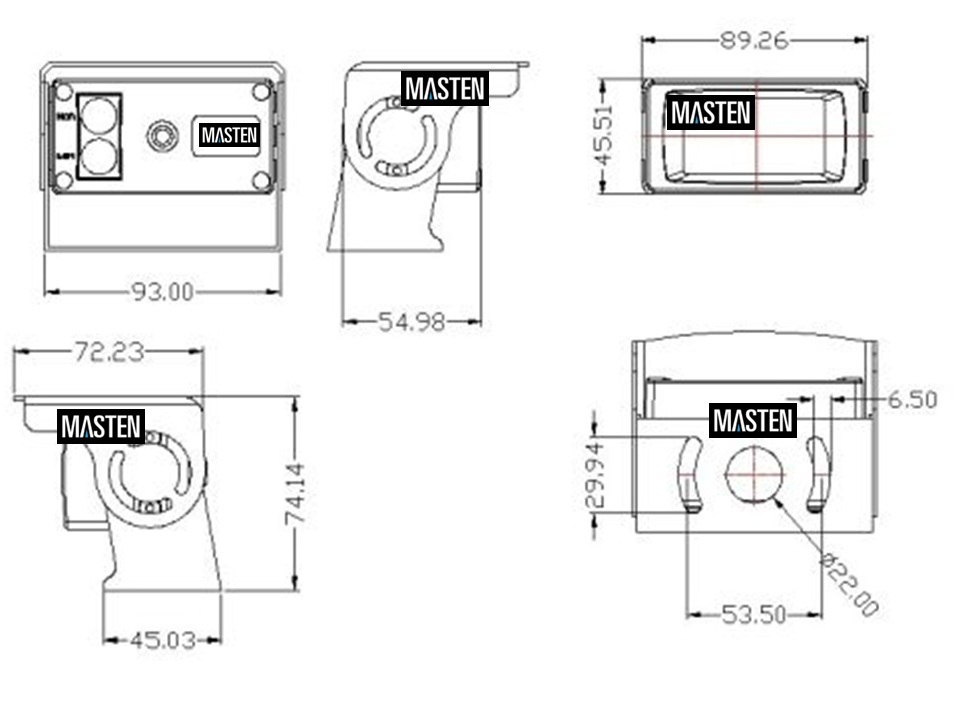

| Dimensions : | 85 (L) ×50 (w) ×75(H) mm | 85 (L) ×50 (w) ×75(H) mm |
| SKU | RC-HD08-W |
| Barcode # | 729436060975 |
| Brand | Masten |
| Shipping Weight | 0.6000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.110m |
| Shipping Length | 0.080m |
| Assembled Width | 0.130m |
2 Year Replacement Warranty
