Ute/Canopy CMOS 420TVL Camera Kit with Night Vision 7.5m Cable RCA Adaptor
Item Number: KIT-CAM3S
Sold Out
DIG Options have take the guess work out of adding a heavy duty camera to your ute or canopy.
Have Questions? Contact Us Here
Specially designed CMOS Heavy Duty camera for Utes and Canopies

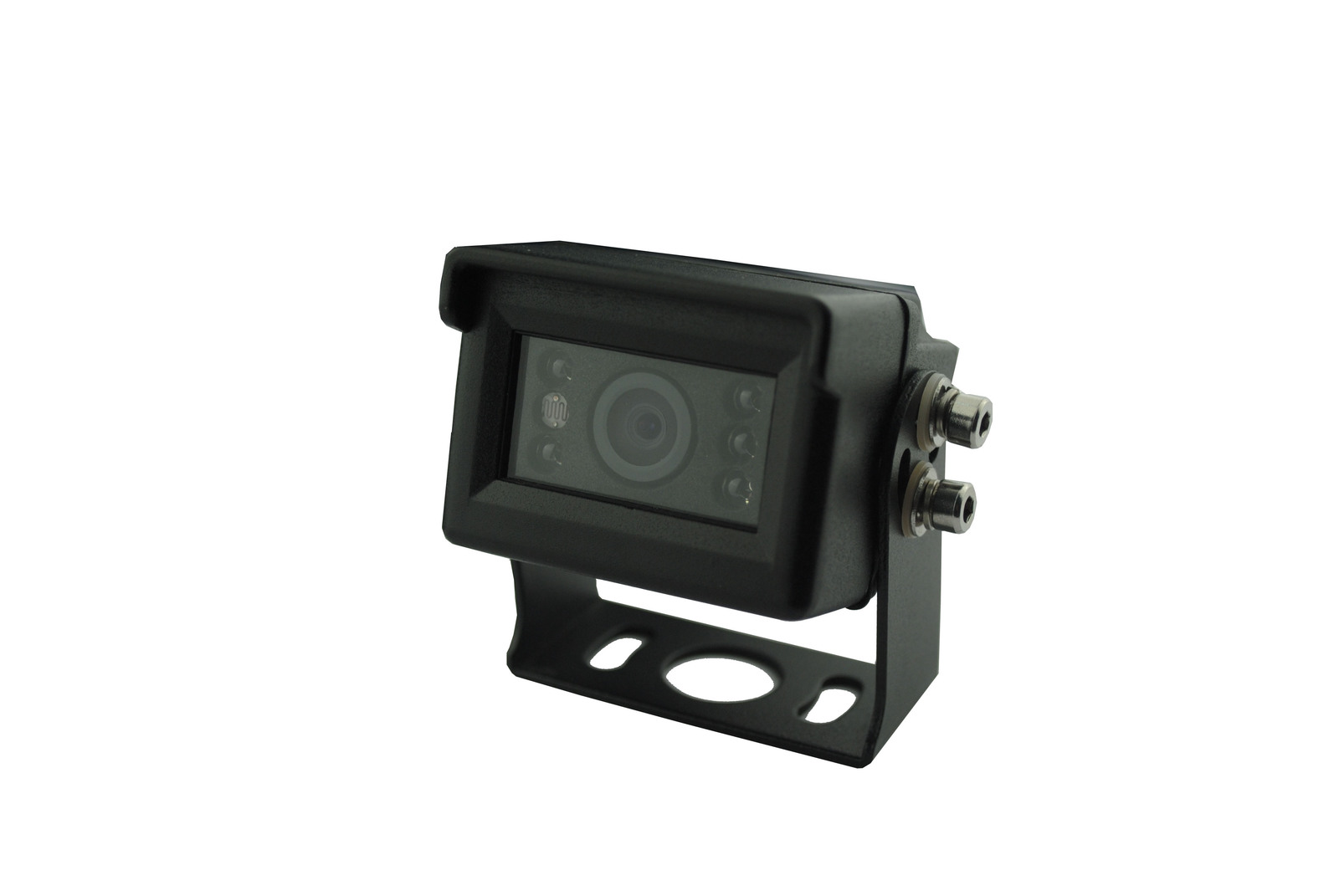

Also available - Premium CCD 700TVL Kit

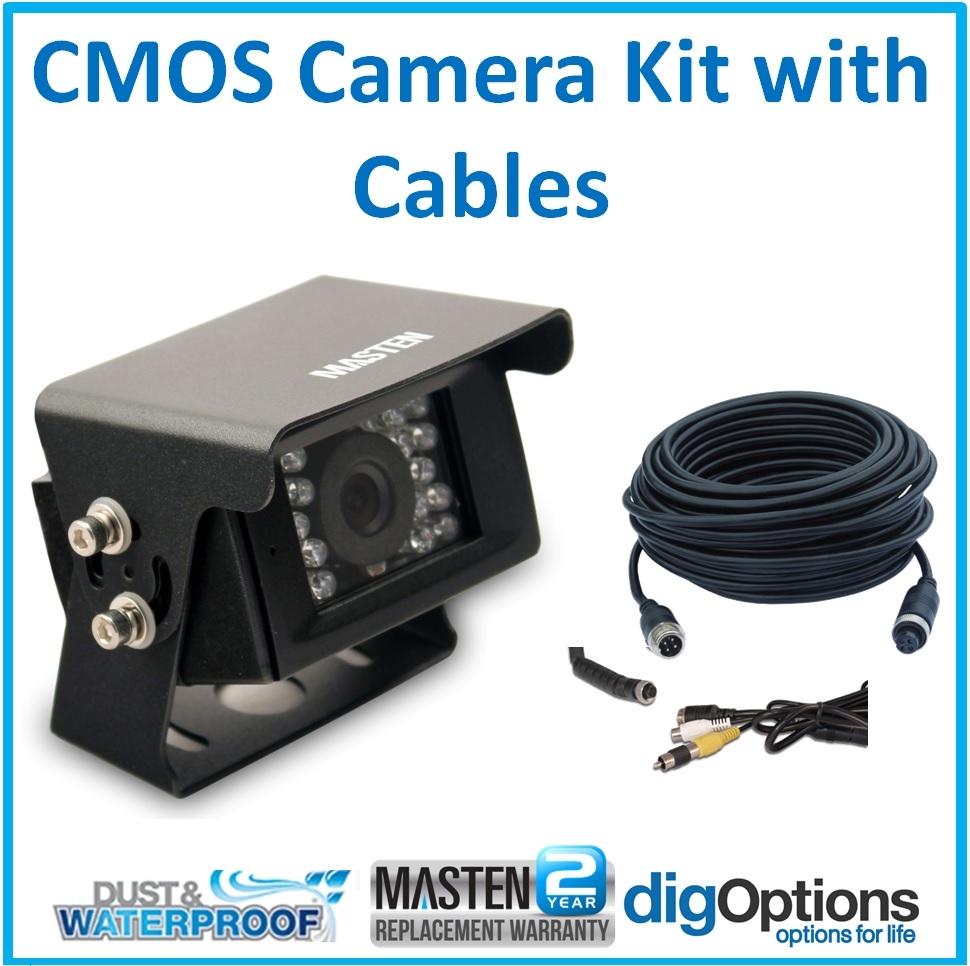

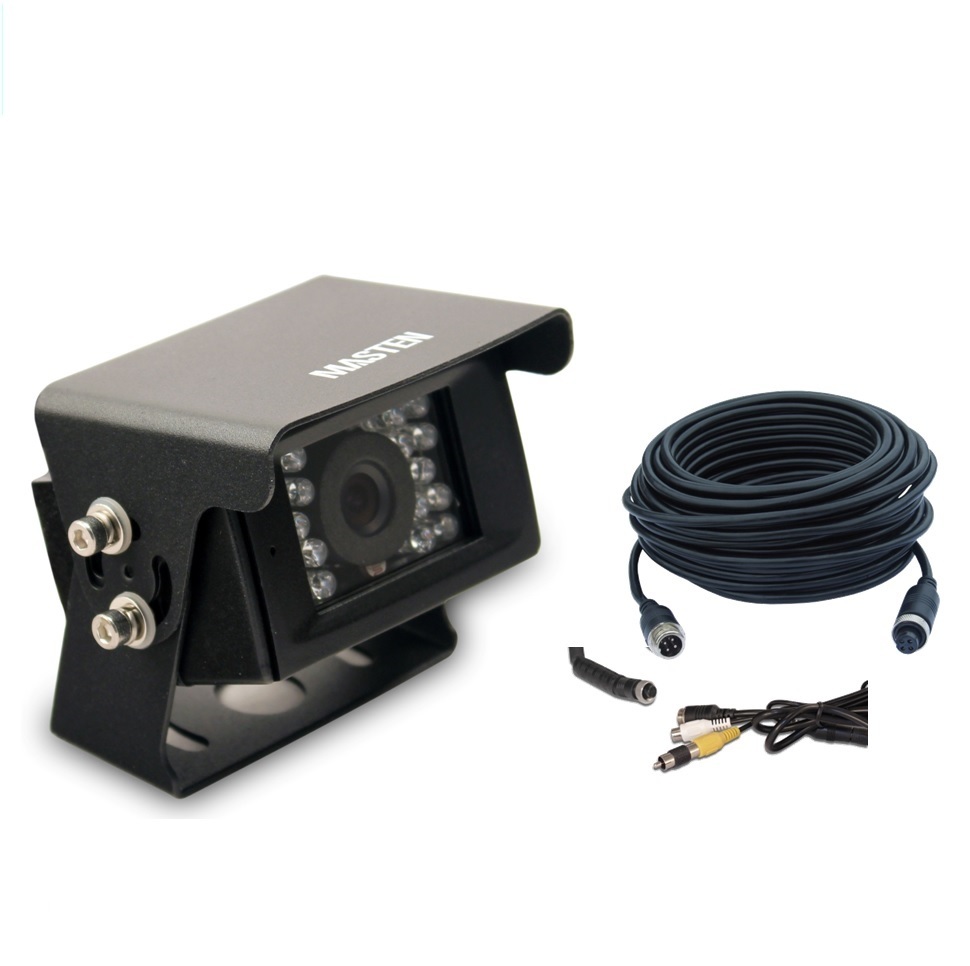

Kit includes Masten CMOS Ute/Canopy Camera, 7.5m Cable plus 4-pin to RCA adapter
Premium full-colour quality doesn't come at a premium price with the new range of Masten Heavy Duty Cameras with a world-class 2 year Melbourne-based warranty.
Product Description
Overview

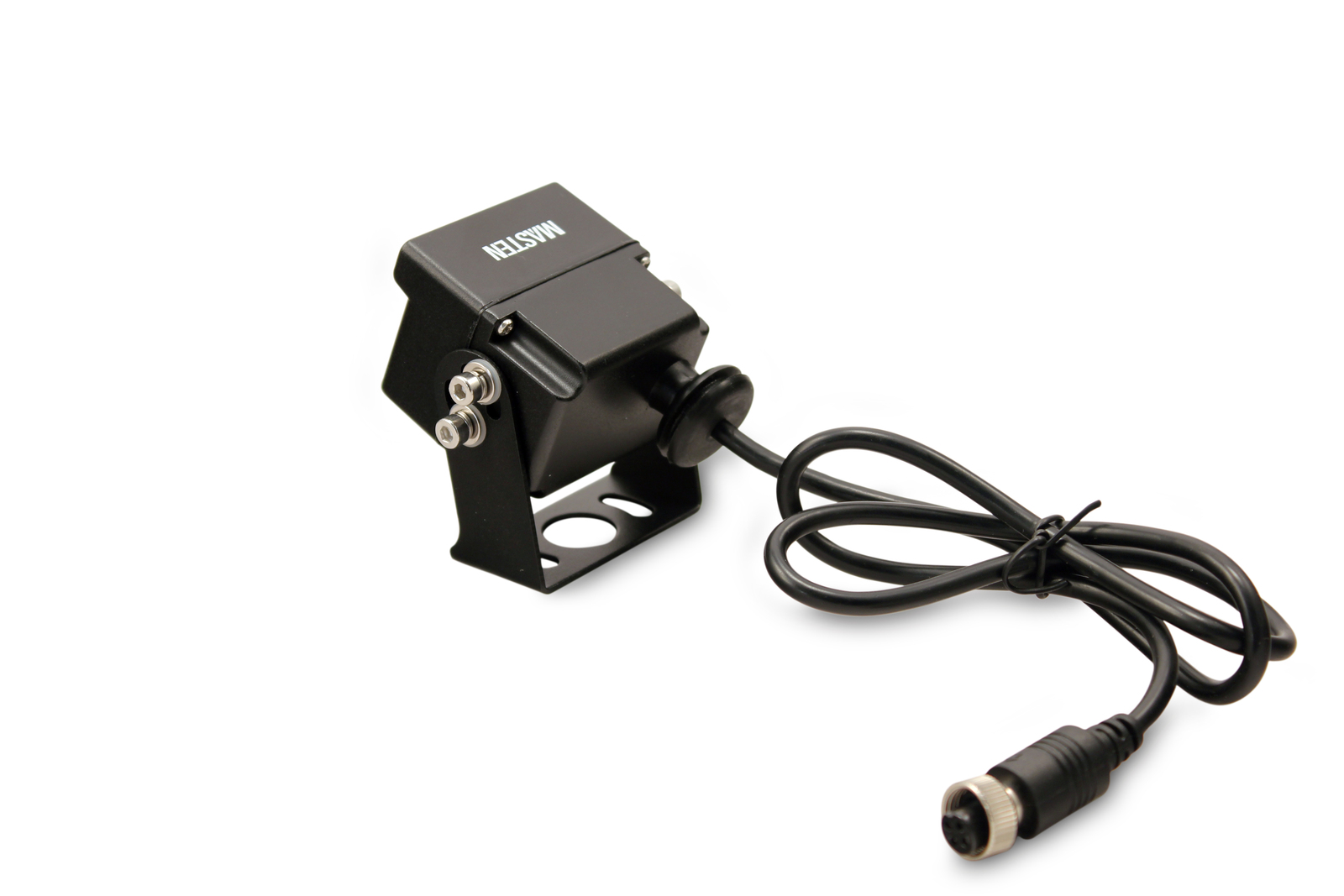

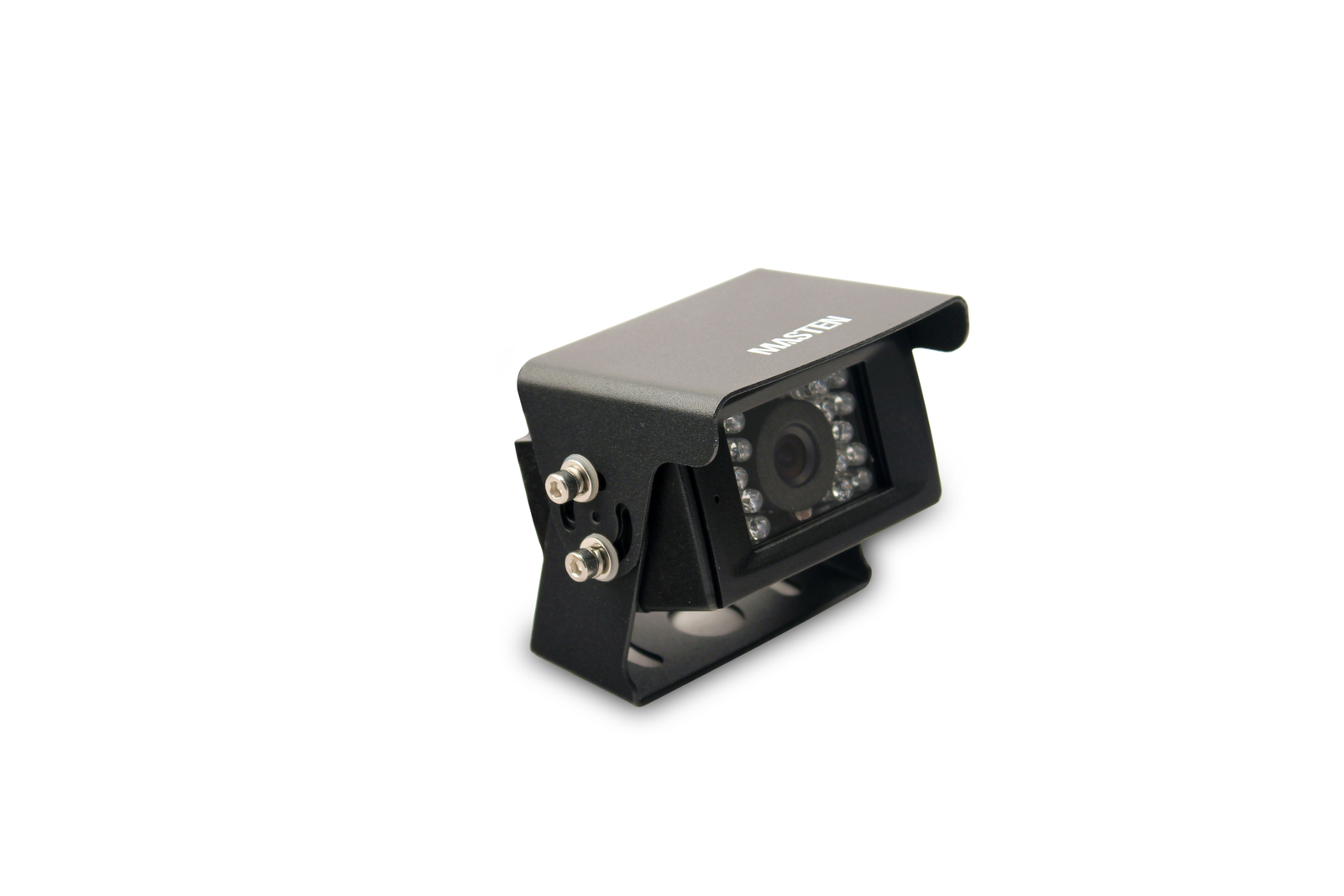

Ute/Canopy CMOS Heavy Duty Reversing Camera Kit
Introducing the industry-first Masten Caravan Reverse Camera Kit from Masten with unbeatable IP69K Water/Dust Proof Certification and Two-Year Replacement Warranty. Finally, an inclusive and easily installed way of connecting a top-quality Masten Reverse Camera to your In-Dash or On-Dash monitor!
Add this kit to your existing in-dash or on-dash monitor to help eliminate your reversing blind spot.
Included in this kit:
- Masten Premium Dome Camera with Masten CMOS 420TVL HD Image Sensors (HD Sony 700TVL also available)
- Four Pin Female to RCA Plug Adapter
- 7.5m 4-Pin Shielded Camera Extension Cable
Camera Features
World-class and Certified IP69K Waterproof (fully submersible) and weather resistant housing for extended durability and a greater range of applications
Stylish Patented Design
PixelPerfect® High-Grade image sensors feature Masten CMOS 420TVL for clear viewing day and night
(Sony® 1/4 CCD Sensor with 700TV Lines also available).
Perfectly adjusted 120° viewing angle for safer reversing and more accurate imagery
Safer driving at night with a long 15m night vision viewing distance supported by 6 infrared LED lights
Wide working temperature of Working temperature: -20°C~70°C.
Unique IR-CUT effectively avoids color aberration in daylight
Equipped with a White Balance sensor which enables the camera to remove unrealistic colour casts so that objects that appear whiter in person appear white on your camera monitor
Suitable for all applications including buses, mini vans, caravans, trailers, trucks, agriculture equipment and much more
Unbeatable Melbourne-Based 2-Year Warranty!

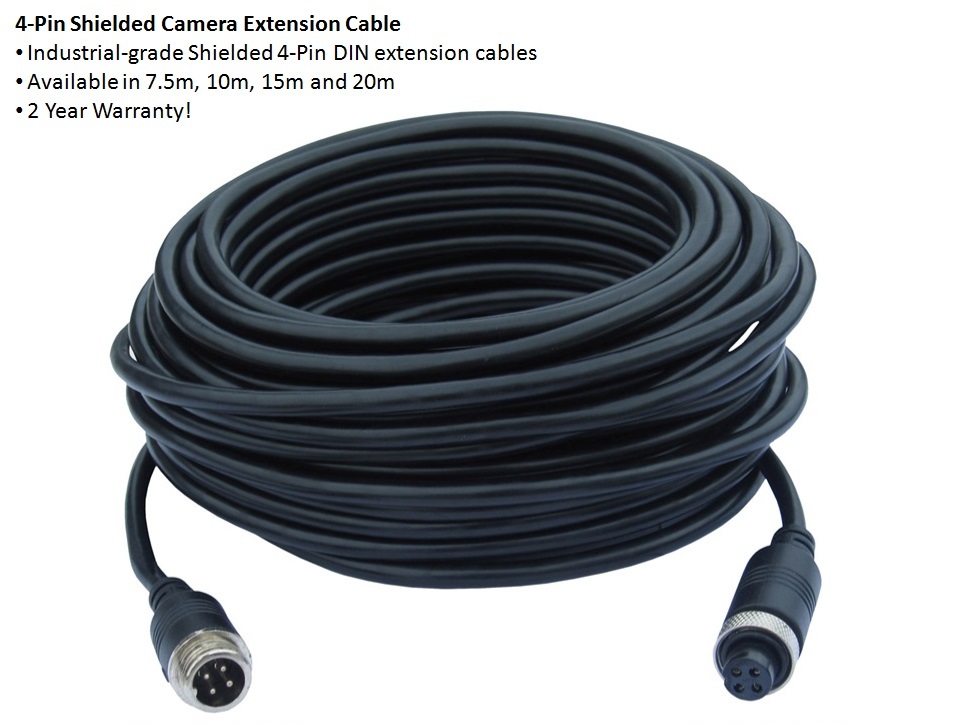

Cable Features
Industrial-grade Shielded 4-Pin DIN extension cables from DIG Options are the ideal choice when looking for a long lasting Rear View Camera Video/Audio/Power cable.
The industrial-grade aviation-style connectors have a locking screw which is designed for keeping dust and water away from the connectors while providing a very robust and secure connection.
| General Camera Specifications | ||
| Description: | Premium Heavy Duty Camera - included in this kit | Premium CCD Heavy Duty Camera (optional) |
| Image Device: | CMOS | 1/4 SONY CCD |
| Resolution: | 420TV lines | 700TV lines |
| Lens: | 2.5mm | 2.5mm |
| Lens Angle: | 120 Degrees | 120 Degrees |
| Infrared LED light: | Depends on model | Depends on model |
| IR Distance: | Depends on model | Depends on model |
| Waterproof Rating: | IP68 or IP69K | IP68 or IP69K |
| Audio Microphone: | Depends on model | Depends on model |
| Technical Specifications | ||
| TV System: | PAL/ NTSC | PAL/ NTSC |
| Manual Mirror Image Switch | ||
| Effective Pixels: | 512 x 582 pixels / 512 x 492 pixels | 512 x 582 pixels / 512 x 492 pixels |
| Sensing Area: | 3.6mm x 2.7mm | 3.6mm x 2.7mm |
| Scanning System: | 2:1 Interlace | 2:1 Interlace |
| Sync. System: | Internal | Internal |
| Horizontal Sync. Frequency: | 15.625 KHz / 15.734KHz | 15.625 KHz / 15.734KHz |
| Vertical Sync. Frequency: | 50Hz / 60Hz | 50Hz / 60Hz |
| Minimum Illumination: | 0Lux (Infrared lamps on) | 0Lux (Infrared lamps on) |
| 0 .1Lux(day) / F1.2 | 0 .1Lux(day) / F1.2 | |
| Video Output: | 1.0vp-p, 75Ohm | 1.0vp-p, 75Ohm |
| Gamma Consumption: | 0.45 | 0.45 |
| AGC: | Auto | Auto |
| S/N Ratio: | Better than 48dB | Better than 48dB |
| White Balance: | Auto | Auto |
| Electronic Shutter: | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds | 1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds |
| BLC: | Auto | Auto |
| Shell material: | Aluminum alloy | Aluminum alloy |
| Current Consumption: | Max. 220mA | Max. 220mA |
| Power Supply: | DC12V | DC12V |
| Operating Temperature: | -20°C~70°C , RH95％ MAX | -20°C~70°C , RH95％ MAX |
| Storage Temperature: | -40°C~80°C，RH95％ MAX | -40°C~80°C，RH95％ MAX |
| Dimensions : | Depends on model | Depends on model |
| SKU | KIT-CAM3S |
| Barcode # | 9357423016516 |
| Brand | Masten |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.070m |
| Shipping Length | 0.035m |
Unbeatable Masten 2 Year Replacement Warranty
